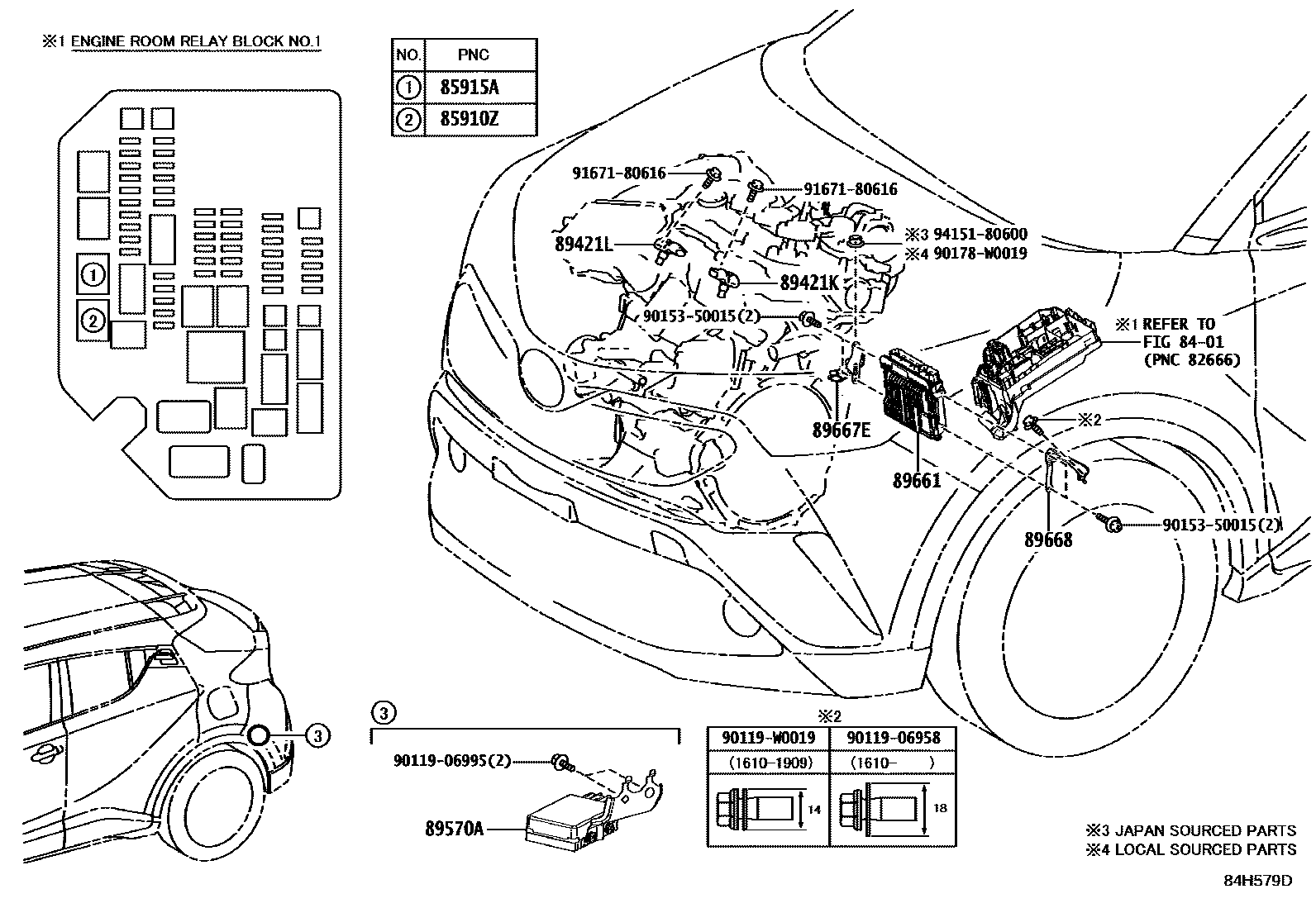

Toyota C-HR (TUP) — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401

85910ZRELAY, INJECTION (FOR EFI)

main90080-87021iNGX10,50201610-202105

sub90987-02027¥2,930

main90987-02027iNGX10,50¥2,930202105

85915ARELAY, MAIN

main90080-87021iNGX10,50201610-202105

sub90987-02027¥2,930

main90987-02027iNGX10,50¥2,930202105

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZYX10¥5,900201909

89421KSENSOR, TURBO PRESSURE, NO.1

main89421-78010iNGX10,50¥5,900201610-201909

89421LSENSOR, TURBO PRESSURE, NO.2

main89421-78010iNGX10,50¥5,900201610-201909

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-10040iNGX10,50¥6,300201610-201909

89661COMPUTER, ENGINE CONTROL

main89661-F4090iNGX10..6F201610-201909

main89661-F4120iNGX10..CVT201610-201909

main89661-F4150iNGX50201610-201909

main89661-F4350iZYX10201909

DENSO

main89661-F4420iNGX10..6F201909

DENSO

main89661-F4450iNGX10..CVT201909-202010

DENSO

main89661-F4480iNGX50201909

DENSO

main89661-F4580iNGX10..CVT202010

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-02500iZYX10201909

main89667-F4030iNGX10,50201610-201909

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02500iNGX10,50201805-201909

main89668-F4020iZYX10201909

main89668-F4030iNGX10,50201610-201804

sub89668-02500

9011906958

main90119-06958¥60

9011906995

main90119-06995¥60

90119W0019

main90119-W0019¥100

9015350015

main90153-50015¥60

90178W0019

main90178-W0019¥110

9167180616

main91671-80616¥60

9415180600

main94151-80600¥60

17 parts on this diagram · 2 diagrams in section
