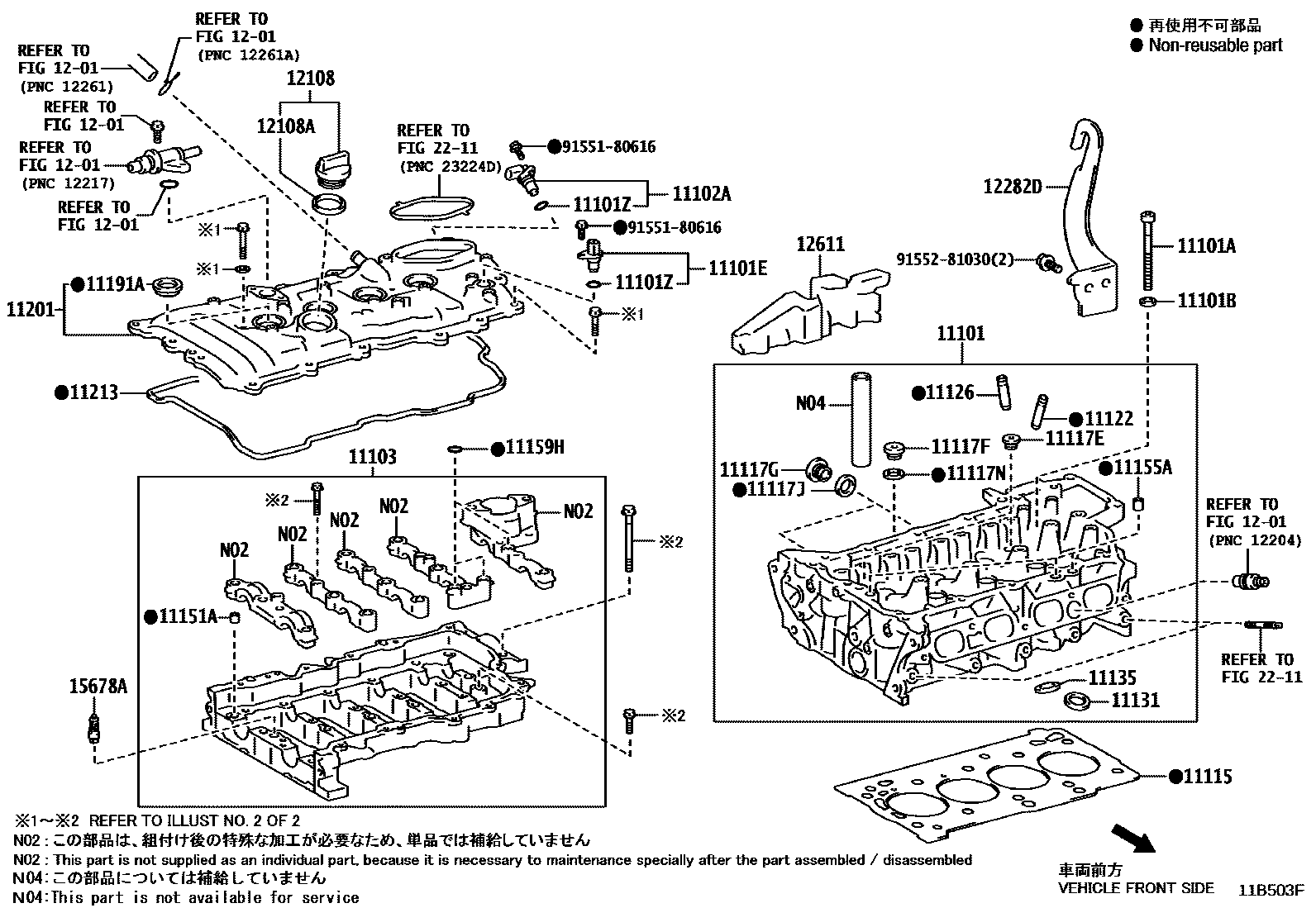

Toyota C-HR (TUP) — CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(L)
(J)
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11101ZO RING, CAM POSITION SENSOR
11102ASENSOR, CAMSHAFT POSITION
11103HOUSING SUB-ASSY, CAMSHAFT
(L)
(J)
11115GASKET, CYLINDER HEAD
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD,(L)
STD,(J)
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=12.5,OD=8
11155APIN, RING W/HEAD
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11191AGASKET(FOR SPARK PLUG TUBE)
11201COVER SUB-ASSY, CYLINDER HEAD
MADE IN EUROPE
MADE IN JAPAN
11213GASKET, CYLINDER HEAD COVER
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12282DHANGER, ENGINE, NO.2
(L),NO PAINTED
(J),NO PAINTED
PAINTED=WHITE
12611COVER, ENGINE, NO.1
15678AFILTER, OIL CONTROL VALVE
2211
9155180616
9155281030
32 parts on this diagram · 4 diagrams in section
