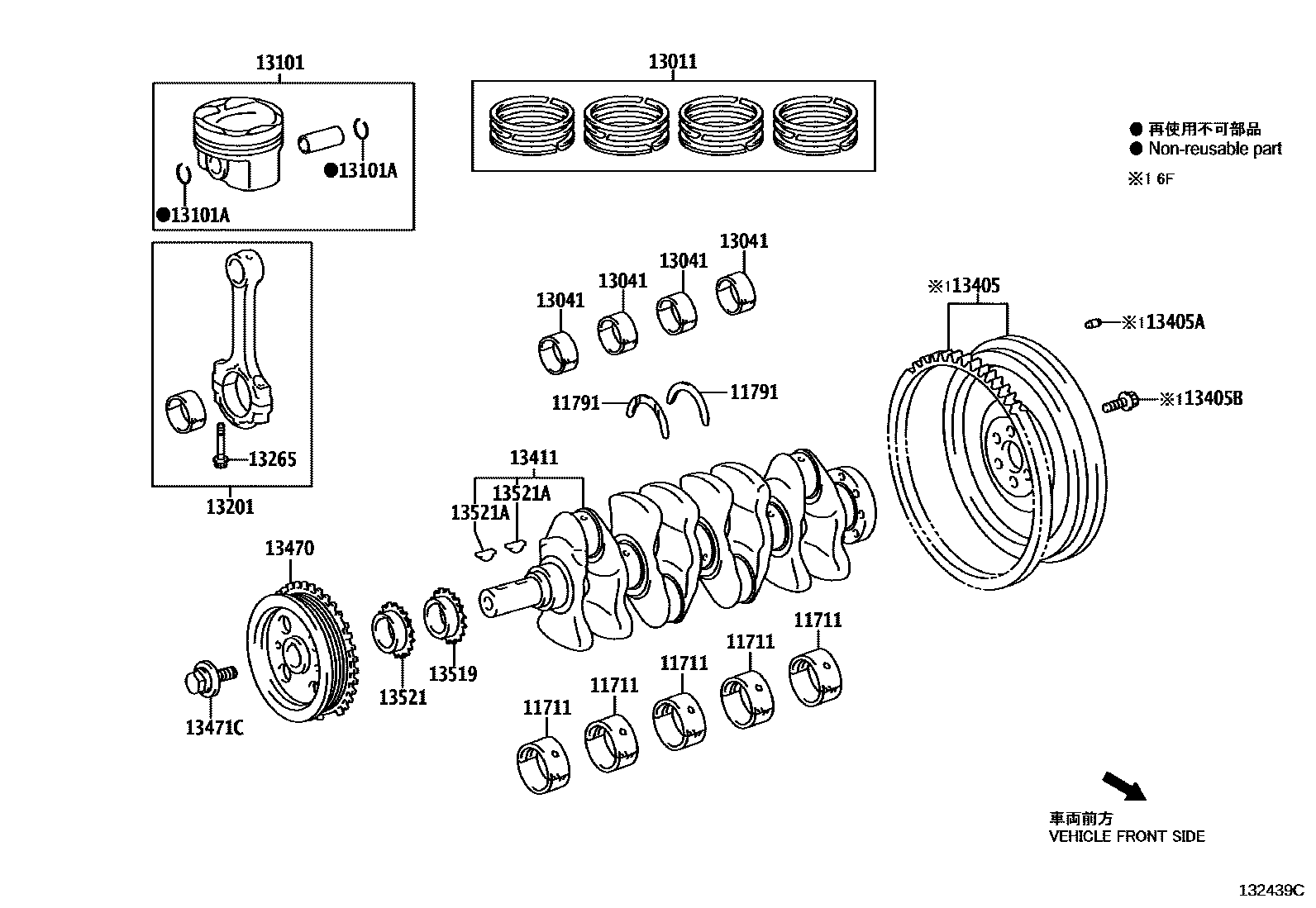

Toyota C-HR (TUP) — CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK4,(L),REFER R/M
MARK1,(J),REFER R/M
MARK2,(J),REFER R/M
MARK3,(J),REFER R/M
MARK4,(J),REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
STD
STD
STD
13011RING SET, PISTON
STD,MADE IN EUROPE
STD,MADE IN JAPAN
STD
13041BEARING, CONNECTING ROD
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK1,(J),REFER R/M
MARK2,(J),REFER R/M
MARK3,(J),REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD,(L)
STD,(J)
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
(L)
(J)
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
(L)
(J)
13470PULLEY ASSY, CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519GEAR, OIL PUMP DRIVE
(L)
(J)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L)
MADE IN EUROPE
(J)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
18 parts on this diagram · 2 diagrams in section
