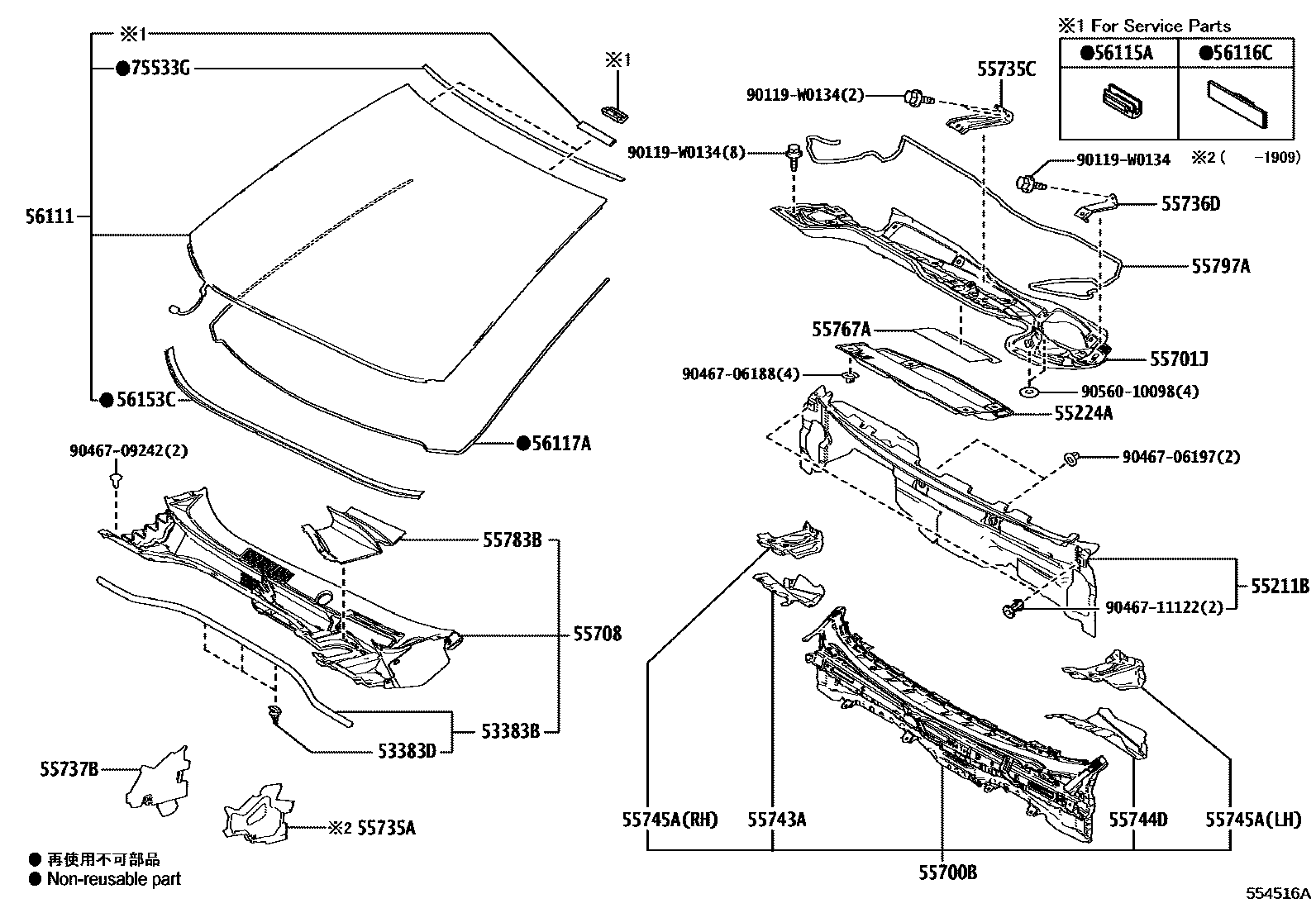

Toyota C-HR (TUP) — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55211BSILENCER, FRONT PANEL
55224AINSULATOR, DASH PANEL, OUTER NO.2
55700BCOWL ASSY
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55735APLATE, WATER GUARD, LH
55735CREINFORCEMENT, COWL BODY MOUNTING, RH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55743AEXTENSION, COWL TO COWL SIDE, RH
55744DEXTENSION, COWL TO COWL SIDE, LH
55745AREINFORCEMENT, COWL TOP, INNER
RH
LH
55767ASHEET, COWL TOP INSULATOR, NO.5
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55797ASEAL, COWL WATER EXTRACT
56111GLASS, WINDSHIELD
AUDIO-CD & USB & *BT, FOR GENERAL
AUDIO-RADIO LESS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=2979,AUDIO-RADIO LESS
*D,L=2979
*D,L=2979,SOUTH AFRICA SPEC
*D,L=2979,AUDIO-CD & USB & *BT, FOR GENERAL
56153CMOULDING, FRONT WINDOW, INNER CENTER
75533GMOULDING, WINDSHIELD, OUTSIDE
90119W0134
9046706188
9046706197
9046709242
9046711122
9056010098
29 parts on this diagram · 2 diagrams in section
