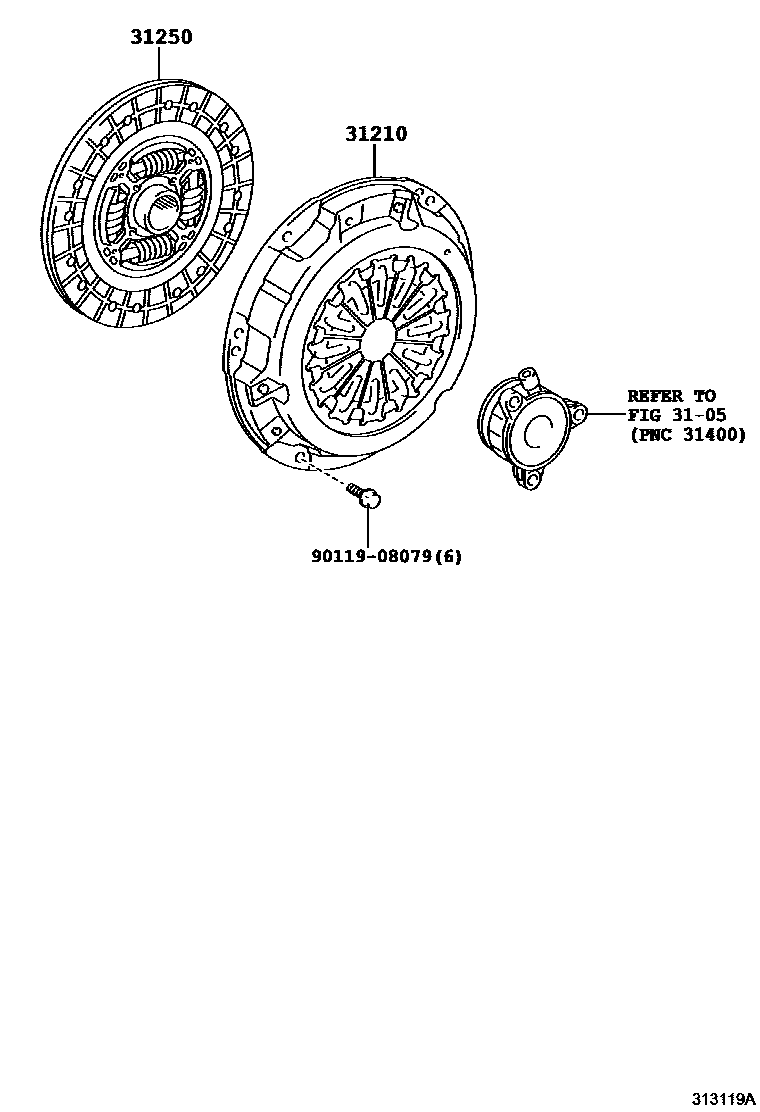

Toyota C-HR (TUP) — CLUTCH & RELEASE FORK

3105

31210COVER ASSY, CLUTCH

main31210-12371iNGX10..6F¥10,800201610-201909

main31210-12371iNGX10..6F¥10,800201909

31250DISC ASSY, CLUTCH

main31250-12630iNGX10..6F201610-201710

sub31250-12680¥15,300

main31250-12680iNGX10..6F¥15,300201711-201909

main31250-12680iNGX10..6F¥15,300201909

9011908079

main90119-08079¥120

4 parts on this diagram · 1 diagram in section
