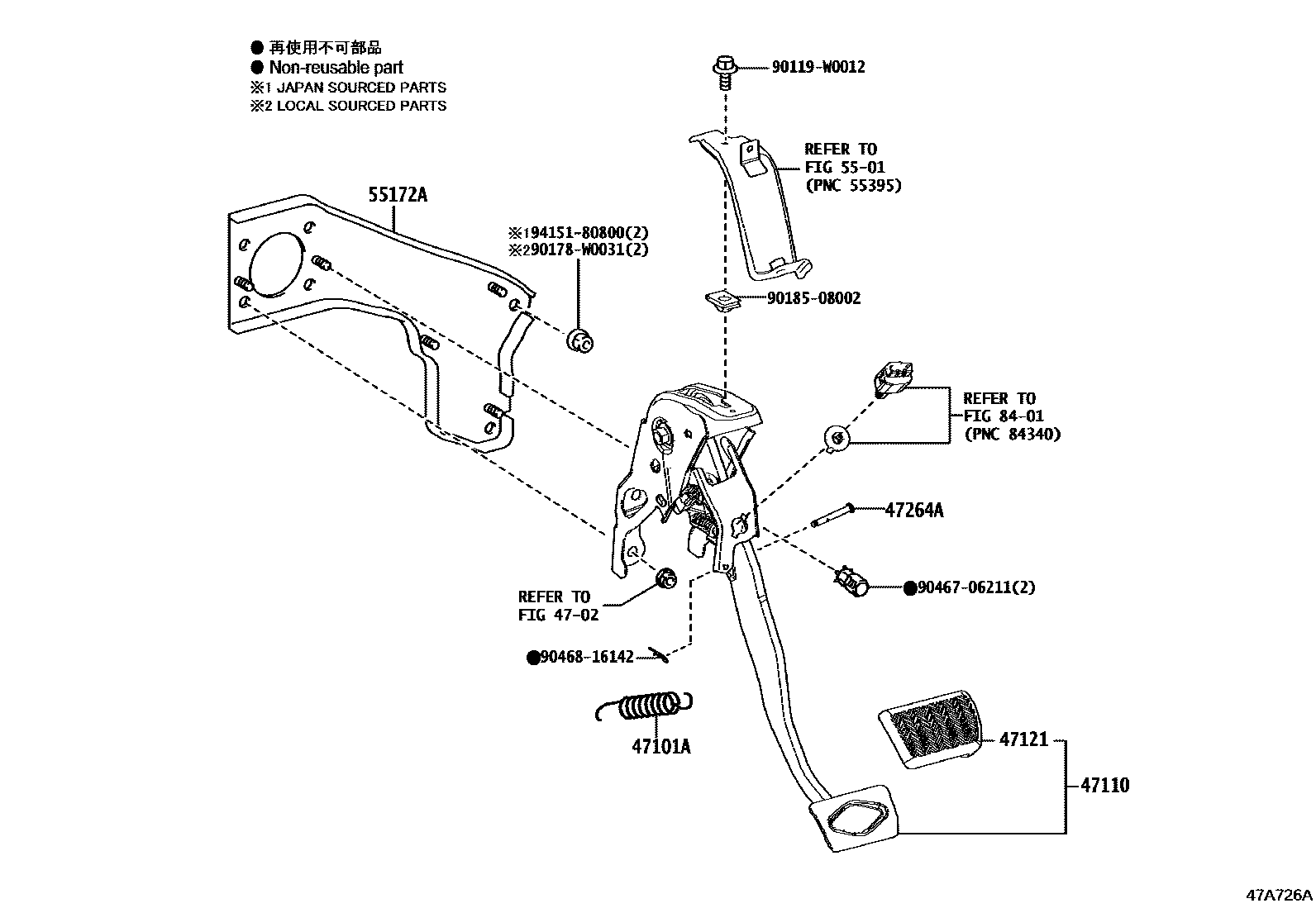

Toyota C-HR (TUP) — BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1

4702

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010iNGX10,50¥180201610-201909

main90507-16030iZYX10¥180201909

47110SUPPORT ASSY, BRAKE PEDAL

main47110-F4010iNGX10,50..LHD..CVT201610-201909

main47110-F4030iNGX10..LHD..6F201610-201909

main47110-F4050iNGX10,50..RHD..CVT201610-201909

main47110-F4070iNGX10..RHD..6F201610-201909

main47110-F4090iZYX10201909

47121PAD, BRAKE PEDAL

main47121-F4010iNGX10,50..CVT201610-201909

main47121-F4020iNGX10..6F¥300201610-201909

47264APIN(FOR PUSH ROD)

main90249-06187iNGX10,50¥120201610-201909

main90249-08221iZYX10¥220201909

5501

55172ABASE, BRAKE PEDAL SUPPORT

main55172-F4010iNGX10,50..LHD201610-201910

main55172-F4011iNGX10,50,ZYX10..LHD201911

main55172-F4020iNGX10..RHD201610-201910

main55172-F4021iNGX10..RHD201911

8401

90119W0012

main90119-W0012

90178W0031

main90178-W0031¥100

9018508002

main90185-08002¥200

9046706211

main90467-06211¥80

9046816142

main90468-16142¥70

9415180800

main94151-80800¥80

14 parts on this diagram · 3 diagrams in section
