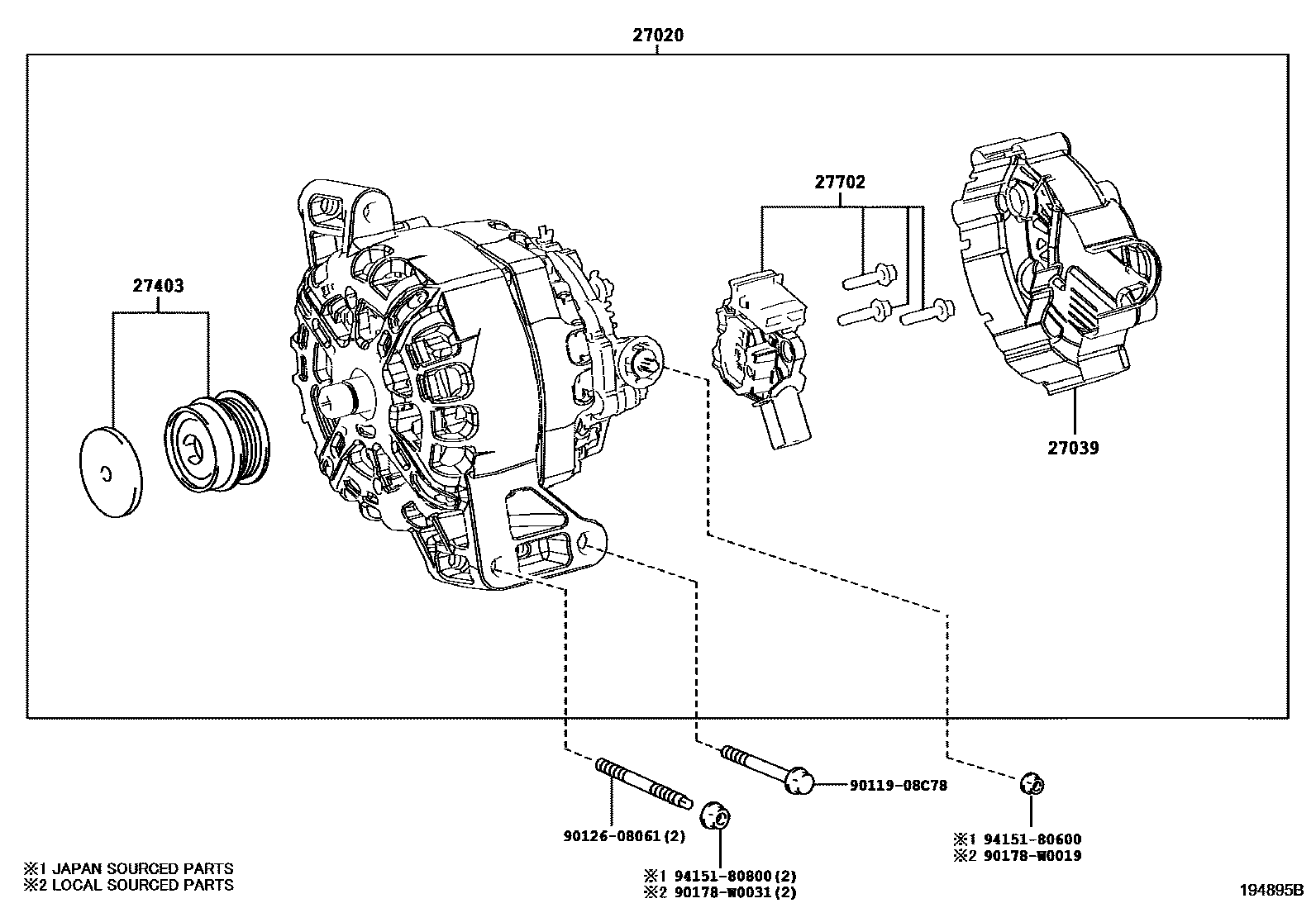

Toyota C-HR (TUP) — ALTERNATOR

27020ALTERNATOR ASSY

main27060-0Y210i8NRFTS..NGX10,50201610-201708

12V 115A

sub27060-0Y211

main27060-0Y211i8NRFTS..NGX10,50201709-201909

12V 115A

27039COVER, ALTERNATOR REAR END

main27039-0Y210i8NRFTS..NGX10,50201610-201909

27403PULLEY SET, ALTERNATOR

main27403-0Y210i8NRFTS..NGX10,50201610-201709

sub27403-0Y211

main27403-0Y211i8NRFTS..NGX10,50201709-201909

27702REGULATOR SUB-ASSY GENERATOR W/BRUSH

main27702-0Y090i8NRFTS..NGX10,50201610-201909

9011908C78

main90119-08C78¥0

9012608061

main90126-08061¥330

90178W0019

main90178-W0019¥110

90178W0031

main90178-W0031¥100

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

10 parts on this diagram · 1 diagram in section
