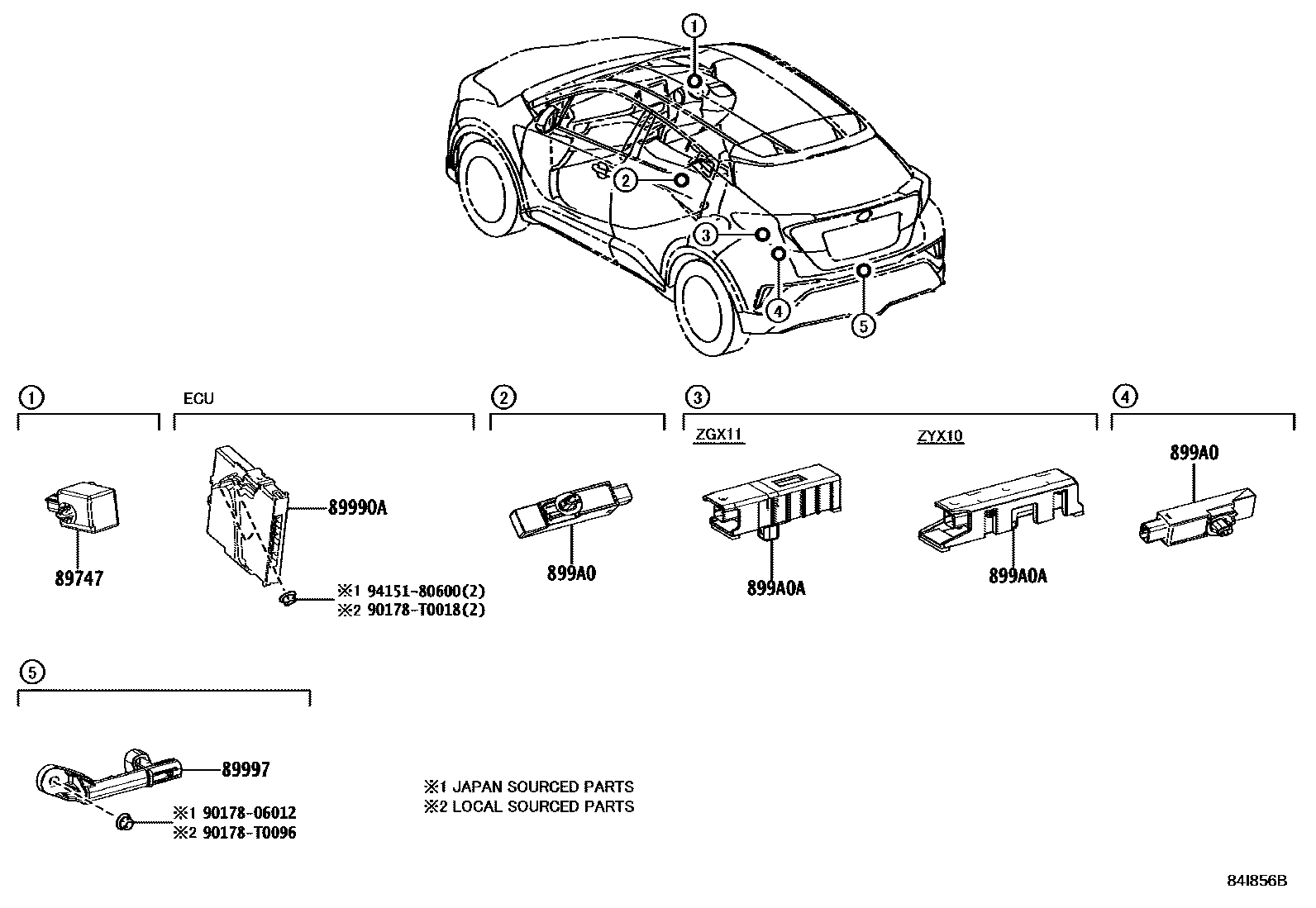

Toyota C-HR (THP) — WIRELESS DOOR LOCK

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iZGX11..E..TH¥2,900201802-202006

main89747-30040iZYX10¥2,900201802

main89747-30040iZGX11..IDN,MA¥2,900201802-202105

89990ACOMPUTER ASSY, SMART KEY

main89990-10030iZGX11..E201802-202105

main89990-10040iZYX10201802-201905

sub89990-10041

main89990-10041iZYX10201906-202101

sub89990-10042

main89990-10042iZYX10202102

89997ANTENNA, ELECTRICAL KEY

main89997-30100iZGX11..IDN,MA¥1,800201802-202105

main89997-30100iZGX11..E..TH¥1,800201802-202006

main89997-30100iZYX10¥1,800201802

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-02070iZGX11..E..TH201802-202006

main899A0-02070iZGX11..IDN,MA201802-202105

main899A0-02070iZYX10201802

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-F4040iZGX11..E..TH201802-202006

main899A0-F4040iZGX11..IDN,MA201802-202105

main899A0-F4050iZYX10201802

9017806012

main90178-06012¥80

90178T0018

main90178-T0018¥70

90178T0096

main90178-T0096

9415180600

main94151-80600¥60

9 parts on this diagram · 1 diagram in section
