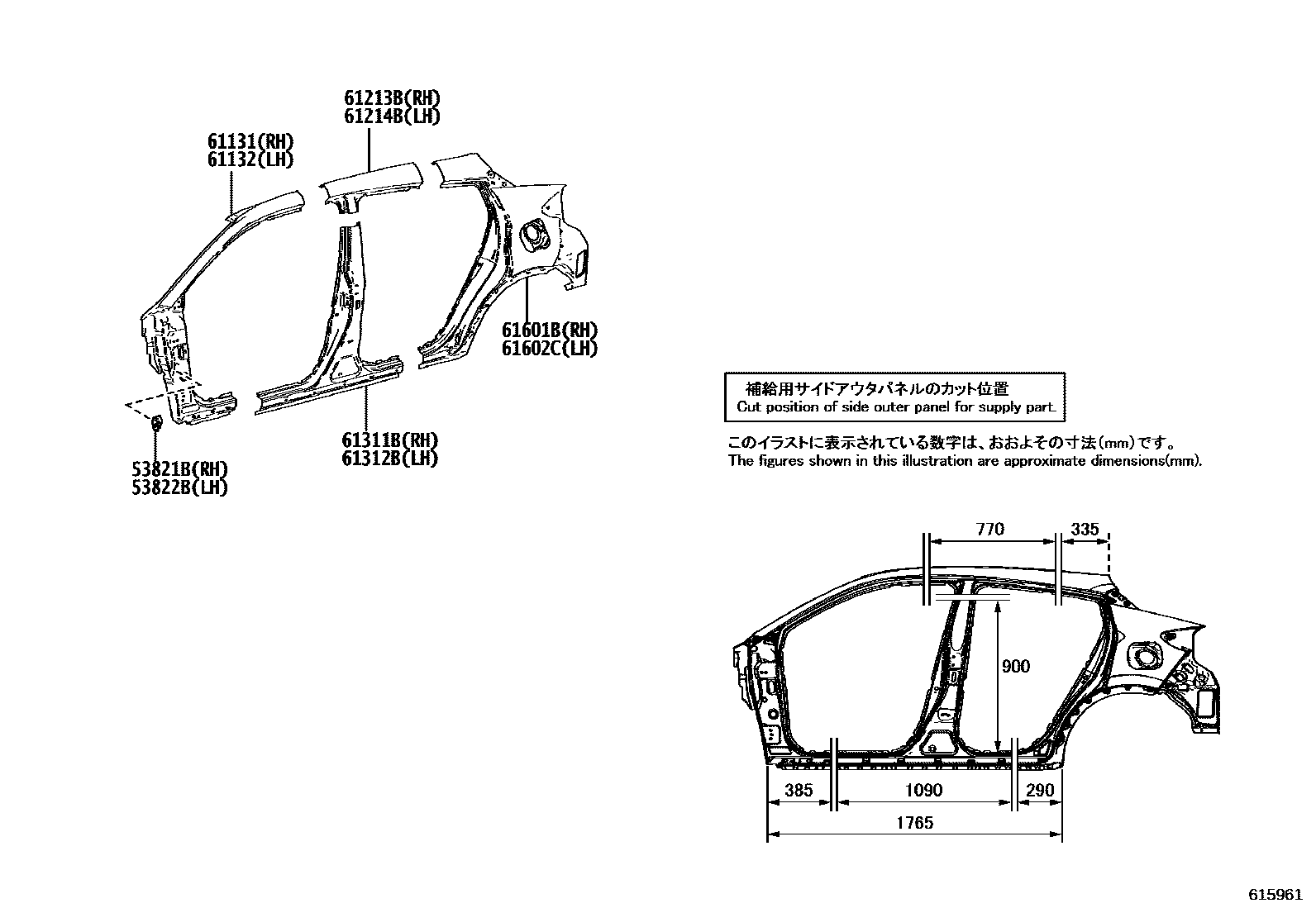

Toyota C-HR (THP) — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-F4020iZGX11,ZYX10..TH201802

main53821-F4020iZGX11..IDN,MA201802-202105

53822BBRACKET, FRONT FENDER, REAR LH

main53821-F4020iZGX11..IDN,MA201802-202105

main53821-F4020iZGX11,ZYX10..TH201802

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-F4040iZGX11..TH201802-202006

main61131-F4040iZGX11..IDN,MA201802-202105

main61131-F4040iZYX10201802

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-F4040iZGX11..TH201802-202006

main61132-F4040iZGX11..IDN,MA201802-202105

main61132-F4040iZYX10201802

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-F4020iZGX11..TH201802-202006

main61213-F4020iZGX11..IDN,MA201802-202105

main61213-F4020iZYX10201802

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-F4020iZGX11..TH201802-202006

main61214-F4020iZGX11..IDN,MA201802-202105

main61214-F4020iZYX10201802

61311BPILLAR, CENTER BODY, OUTER RH

main61311-F4030iZGX11..TH201802-202006

main61311-F4030iZGX11..IDN,MA201802-202105

main61311-F4030iZYX10201802

61312BPILLAR, CENTER BODY, OUTER LH

main61312-F4040iZGX11..TH201802-202006

main61312-F4040iZGX11..IDN,MA201802-202105

main61312-F4040iZYX10201802

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-F4040iZGX11..TH201802-202006

main61601-F4040iZGX11..IDN,MA201802-202105

main61601-F4040iZYX10201802

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-F4030iZGX11..IDN,MA201802-202105

main61602-F4030iZGX11..TH201802-202006

main61602-F4030iZYX10201802

10 parts on this diagram · 3 diagrams in section
