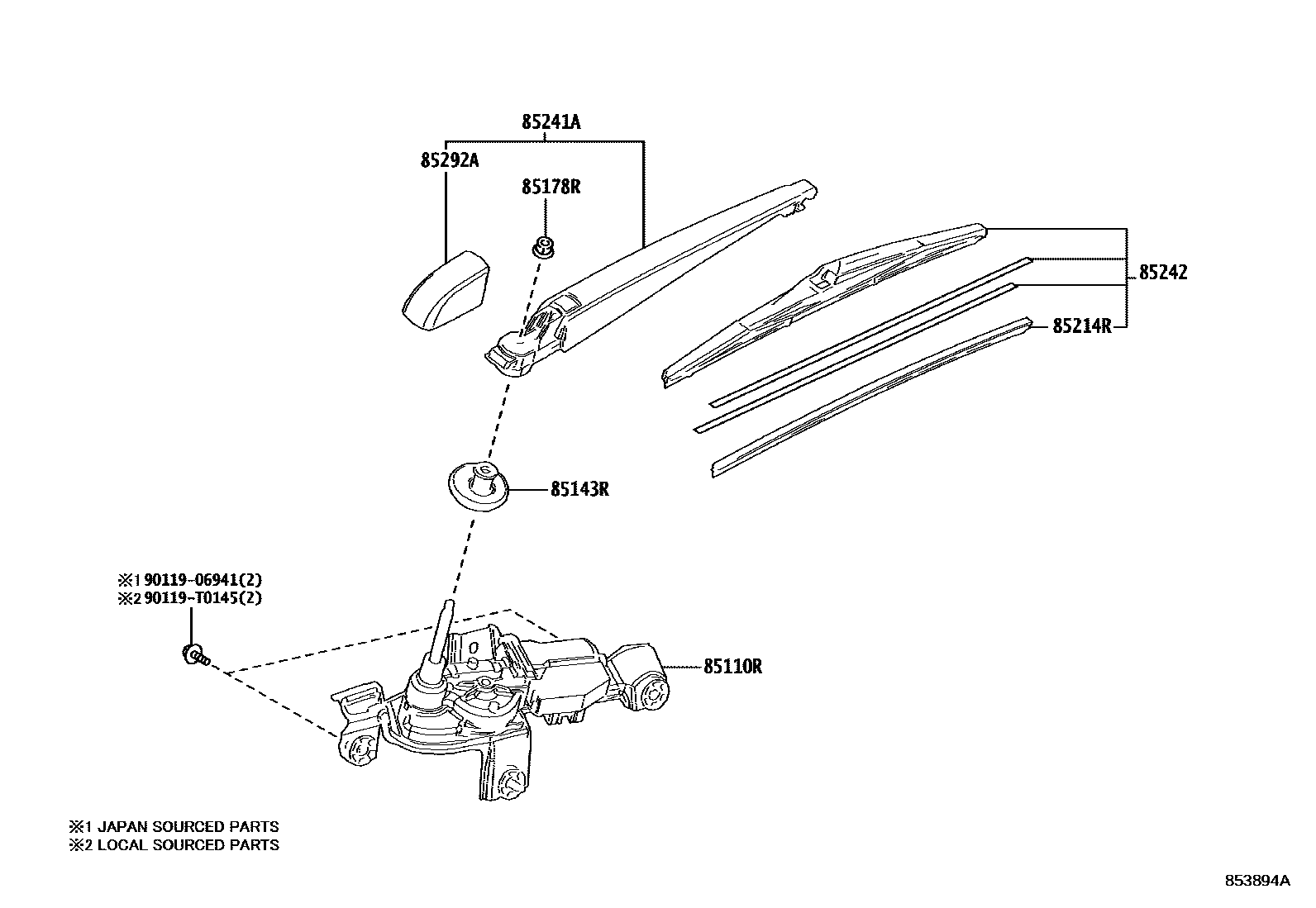

Toyota C-HR (THP) — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-10350iZGX11..TH¥17,600201802-202105

85143RGROMMET, REAR WIPER MOTOR

main85143-28070iZGX11..TH¥180201802-202105

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iZGX11..TH¥70201802-202105

(J)

main90182-T0005iZGX11..IDN,MA¥60201802-202105

(L)

85214RRUBBER, REAR WIPER

main85214-30280iZGX11..TH¥650201802-202105

85241AARM, REAR WIPER

main85241-10030iZGX11..TH¥1,870201802-202105

85242BLADE, RR WIPER

main85242-10030iZGX11..TH¥1,340201802-202105

85292ACAP, REAR WIPER ARM HEAD

main85292-47060iZGX11..TH¥0201802-202105

9011906941

main90119-06941¥80

90119T0145

main90119-T0145

9 parts on this diagram · 1 diagram in section
