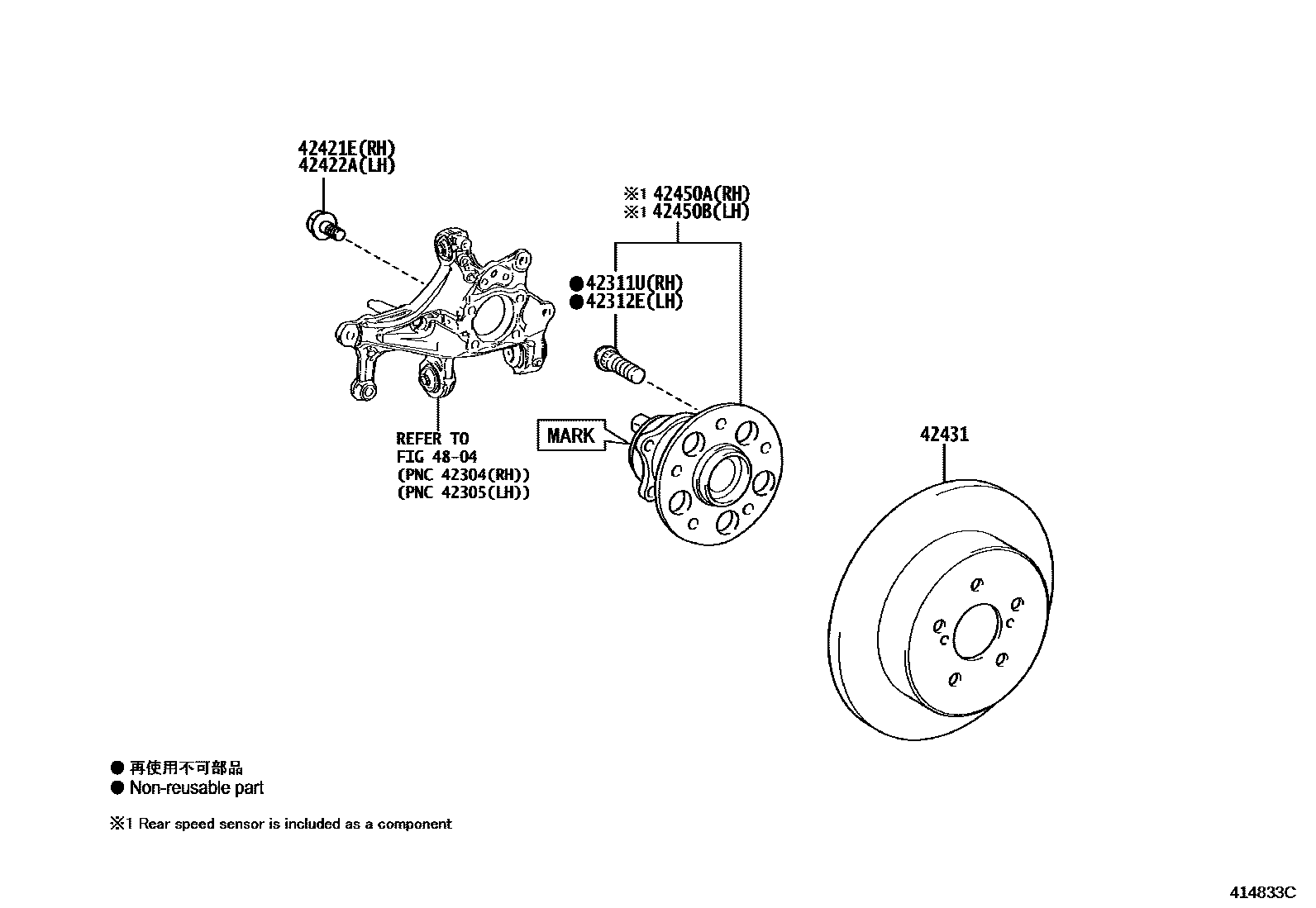

Toyota C-HR (THP) — REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02082iZGX11,ZYX10..TH¥240201802

main90942-02082iZGX11..IDN,MA¥240201802-202105

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02082iZGX11,ZYX10..TH¥240201802

main90942-02082iZGX11..IDN,MA¥240201802-202105

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12406iZGX11..TH¥160201802-202006

(J)

main90105-12406iZYX10¥160201802

(J)

main90105-12406iZGX11..IDN,MA¥160201802-202105

(J)

main90105-T0387iZYX10201802

(L)

main90105-T0387iZGX11..TH201802-202006

(L)

main90105-T0387iZGX11..IDN,MA201802-202105

(L)

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12406iZGX11..IDN,MA¥160201802-202105

(J)

main90105-12406iZGX11..TH¥160201802-202006

(J)

main90105-12406iZYX10¥160201802

(J)

main90105-T0387iZGX11..IDN,MA201802-202105

(L)

main90105-T0387iZYX10201802

(L)

main90105-T0387iZGX11..TH201802-202006

(L)

42431DISC, REAR

main42431-78010iZGX11..TH¥6,600201802-202006

main42431-78010iZGX11..IDN,MA¥6,600201802-202105

main42431-78010iZYX10¥6,600201802

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-06170iZGX11..IDN,MA201810-202105

MARK=89544-06100

main42450-06170iZGX11,ZYX10..TH201810

MARK=89544-06100

main42450-33080iZGX11,ZYX10¥25,000201802-201810

MARK=89544-33020

sub42450-42060¥22,600

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-06170iZGX11..IDN,MA201810-202105

MARK=89544-06100

main42450-06170iZGX11,ZYX10..TH201810

MARK=89544-06100

main42450-33080iZGX11,ZYX10¥25,000201802-201810

MARK=89544-33020

sub42450-42060¥22,600

4804

8 parts on this diagram · 1 diagram in section
