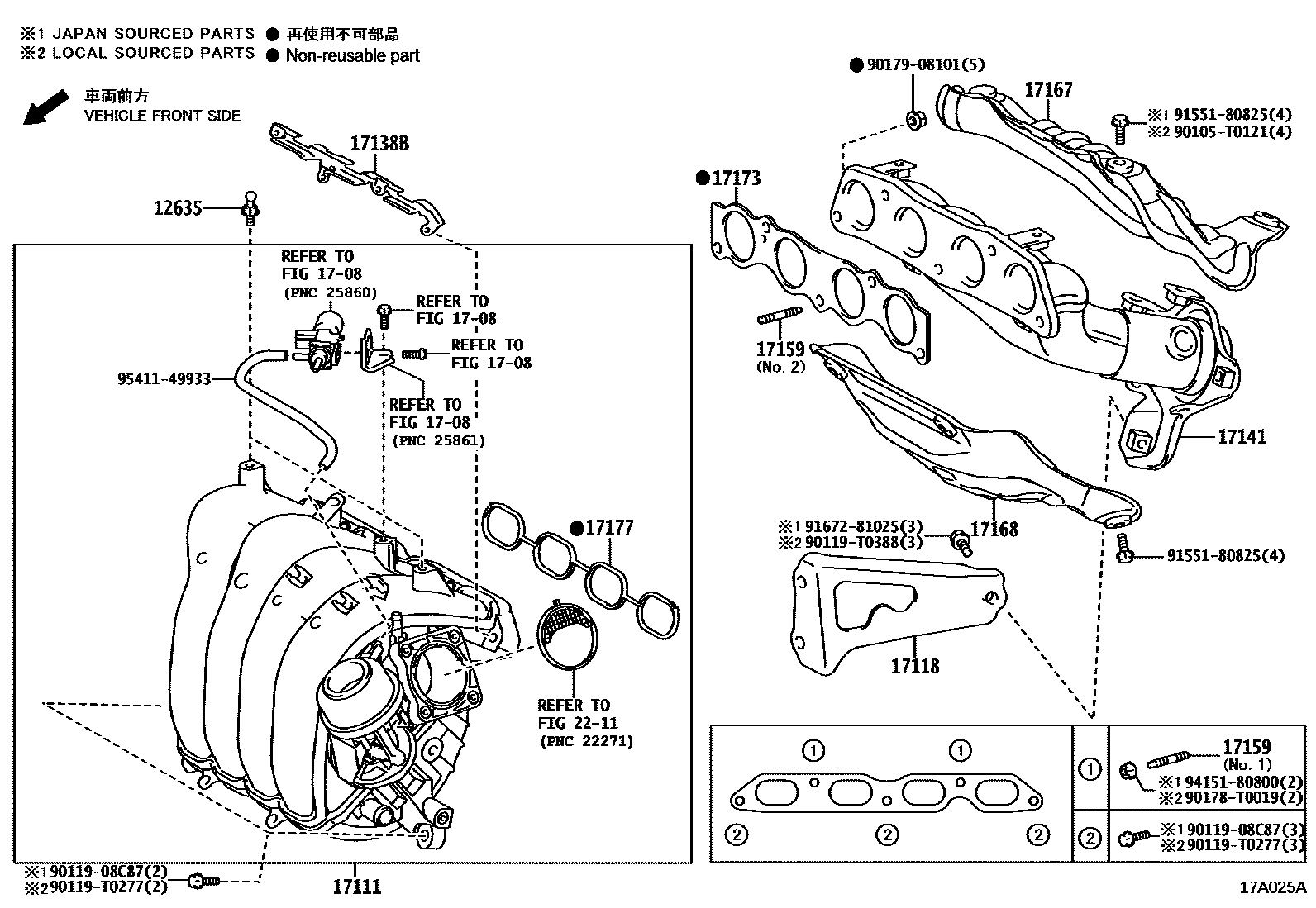

Toyota C-HR (THP) — MANIFOLD
12635JOINT, ENGINE COVER
(J)
(L)
1708
17111MANIFOLD, INTAKE
(L)
(L)
(J)
(J)
17118STAY, MANIFOLD
(L)
(L)
(J)
(J)
17138BSTAY, INTAKE MANIFOLD
(L)
(J)
17141MANIFOLD, EXHAUST
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
(J),NO.1
(J),NO.2
(L),NO.1
(L),NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(L)
(L),TYPE A:REF ILL.
(L),TYPE B:REF ILL.
(J),TYPE A:REF ILL.
(J)
(J),TYPE B:REF ILL.
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(L)
(J)
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(J)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
2211
90105T0121
main90105-T0121
9011908C87
90119T0277
main90119-T0277
90119T0388
main90119-T0388
90178T0019
main90178-T0019
9017908101
9155180825
9167281025
9415180800
9541149933
22 parts on this diagram · 4 diagrams in section
