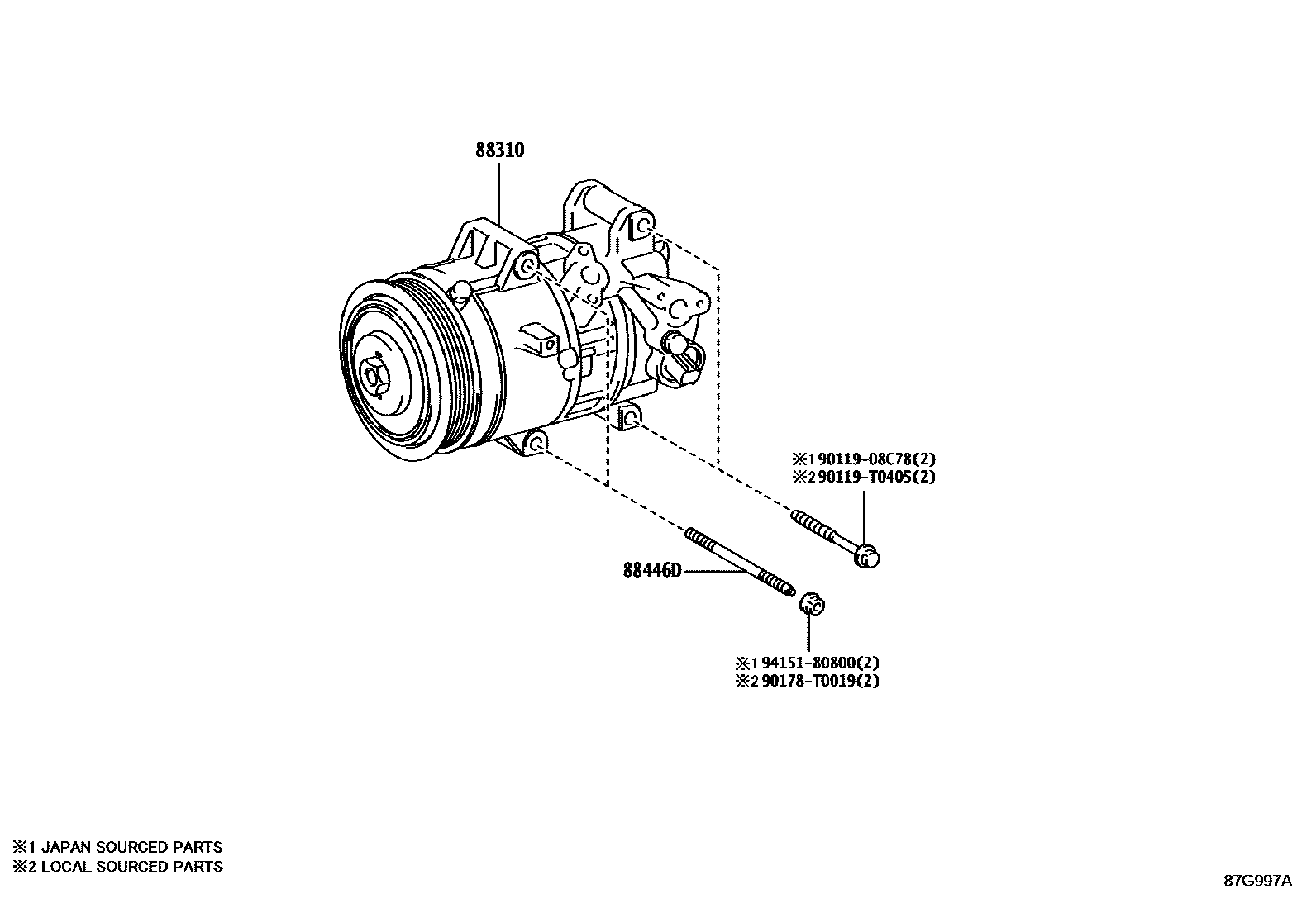

Toyota C-HR (THP) — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-02892iZGX11..TH201802-202105

88446DBOLT, COOLER

main88446-02090iZGX11..TH201904-202105

main88446-42030iZGX11¥0201802-201904

9011908C78

main90119-08C78¥0

90119T0405

main90119-T0405

90178T0019

main90178-T0019

9415180800

main94151-80800¥80

6 parts on this diagram · 2 diagrams in section
