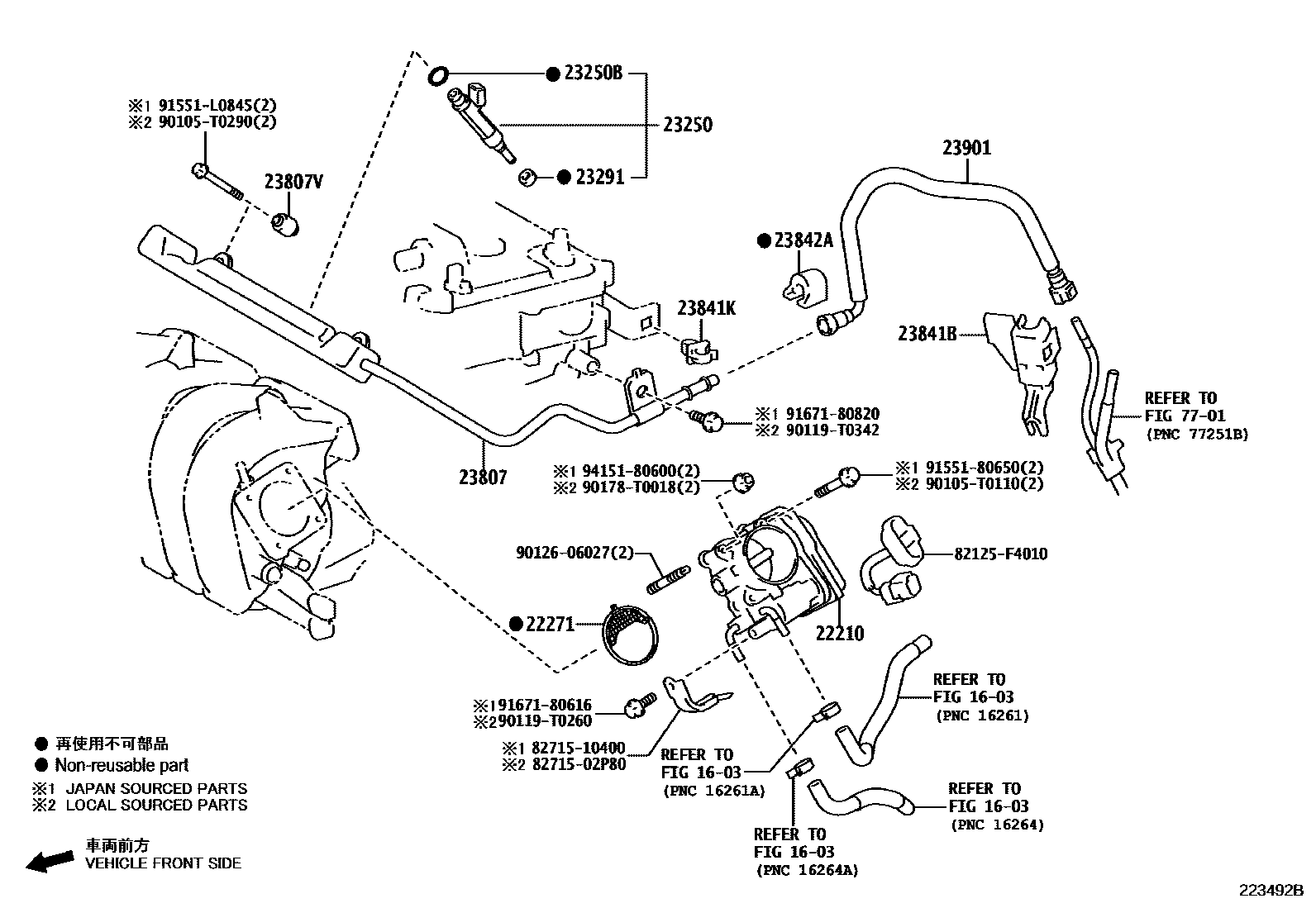

Toyota C-HR (THP) — FUEL INJECTION SYSTEM

0001 1 0002 1

1603

22210BODY ASSY, THROTTLE

main22030-0T110i2ZRFXE..ZYX10201802

(L)

main22030-0T170i2ZRFBE..ZGX11..IDN,MA201808-202105

(L)

main22030-37060i2ZRFXE..ZYX10¥52,700201802

(J)

main22030-37090i2ZRFBE..ZGX11..IDN,MA201808-202105

(J)

main22030-37090i2ZRFBE..ZGX11201802-201808

22271GASKET, THROTTLE BODY

main22271-0T060i2ZRFBE..ZGX11..IDN,MA201811-202105

(L)

main22271-37020i2ZRFXE..ZYX10¥260201802

main22271-75031i2ZRFBE..ZGX11..IDN,MA¥250201802-202105

(J)

main22271-75031i2ZRFBE..ZGX11¥250201802-201811

23250INJECTOR ASSY, FUEL

main23209-09410i2ZRFBE..ZGX11201802-202105

main23209-39295i2ZRFXE..ZYX10¥12,600201802

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i2ZRFBE..ZGX11..TH¥140201802-202105

(J)

main90301-07037i2ZRFXE..ZYX10¥140201802

main90301-T0051i2ZRFBE..ZGX11..TH201802-202105

(L)

23291INSULATOR, INJECTOR VIBRATION

main23291-0T010i2ZRFBE..ZGX11..TH201802-202105

(L)

main23291-28020i2ZRFBE..ZGX11..TH¥310201802-202105

(J)

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37051i2ZRFBE..ZGX11..IDN,MA¥8,900201802-202105

main23814-37100i2ZRFXE..ZYX10¥8,600201802

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010i2ZRFBE..ZGX11..TH¥240201802-202105

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0T042i2ZRFXE..ZYX10201802-202105

23841KCLAMP, FUEL PIPE

main23841-0T130i2ZRFBE..ZGX11..TH201802-202105

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-37131i2ZRFXE..ZYX10¥210201802

main23842-22020i2ZRFBE..ZGX11..IDN,MA¥550201802-202105

23901TUBE SUB-ASSY, FUEL

main23901-0T280i2ZRFXE..ZYX10201802

main23901-0T290i2ZRFBE..ZGX11..TH201802-202105

7701

82125F4010WIRE, TRANSMISSION

main82125-F4010

8271502P80BRACKET,WIRING HARNESS CLAMP

main82715-02P80

8271510400BRACKET,WIRING HARNESS CLAMP

main82715-10400

90105T0110

main90105-T0110¥80

90105T0290

main90105-T0290

90119T0260

main90119-T0260

90119T0342

main90119-T0342

9012606027

main90126-06027¥80

90178T0018

main90178-T0018¥70

9155180650

main91551-80650¥80

91551L0845

main91551-L0845¥100

9167180616

main91671-80616¥60

9167180820

main91671-80820¥80

9415180600

main94151-80600¥60

27 parts on this diagram · 2 diagrams in section
