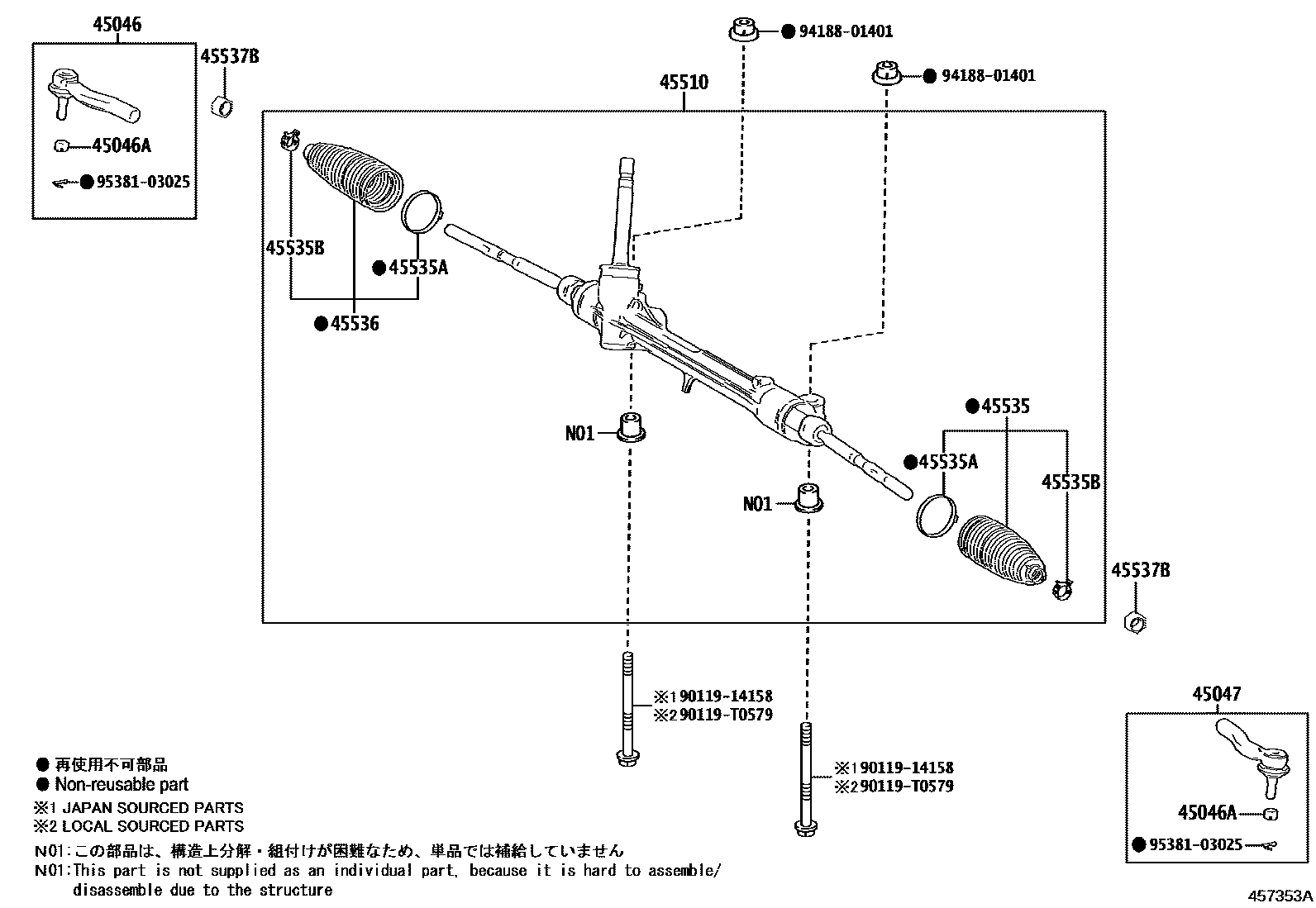

Toyota C-HR (THP) — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09890iZGX11..TH201802-202105

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iZYX10¥130201802-202105

(J)

main90171-T0004iZGX11..TH201802-202105

(L)

45047END SUB-ASSY, TIE ROD, LH

main45047-09420iZGX11..IDN,MA201802-202105

45510GEAR ASSY, STEERING

main45510-0A020iZGX11202011-202105

main45510-10240iZGX11,ZYX10¥32,900201802-202010

45535BOOT, STEERING RACK, NO.1

main45535-59075iZGX11..IDN,MA¥790201802-202105

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-48020iZGX11..IDN,MA¥240201802-202105

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iZGX11..TH¥320201802-202105

45536BOOT, STEERING RACK, NO.2

main45535-59075iZGX11..IDN,MA¥790201802-202105

45537BNUT, RACK END LOCK

main90178-16001iZGX11..TH¥120201802-202105

(J)

main90178-T0073iZGX11..TH201802-202105

(L)

9011914158

main90119-14158¥430

90119T0579

main90119-T0579

9418801401

main94188-01401¥190

9538103025

main95381-03025¥130

13 parts on this diagram · 1 diagram in section
