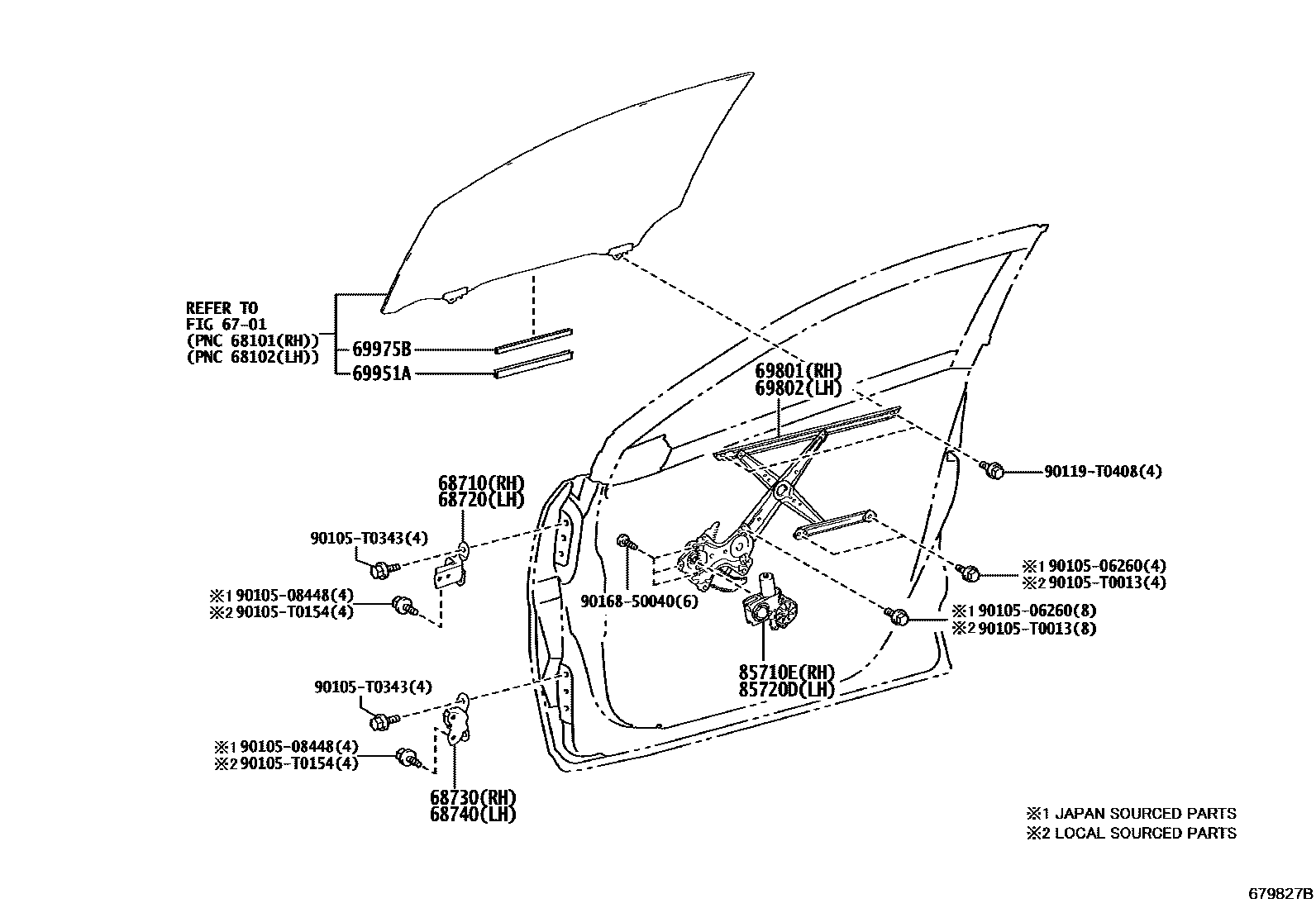

Toyota C-HR (THP) — FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D050iZGX11..TH¥2,030201802-202105

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D050iZGX11..TH¥2,030201802-202105

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02100iZGX11..TH201802-202105

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02100iZGX11..TH201802-202105

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-F4020iZGX11..TH201802-202105

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-F4020iZGX11..TH201802-202105

69951ACHANNEL, FRONT DOOR GLASS

main69911-F4010iZGX11..TH201802-202105

69975BFILLER, FRONT DOOR GLASS CHANNEL

main69975-0D060iZGX11..TH201802-202105

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-F4030iZGX11..TH201802-202105

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-F4030iZGX11..TH201802-202105

9010506260

main90105-06260¥60

9010508448

main90105-08448¥80

90105T0013

main90105-T0013¥60

90105T0154

main90105-T0154

90105T0343

main90105-T0343

90119T0408

main90119-T0408¥60

9016850040

main90168-50040¥70

18 parts on this diagram · 1 diagram in section
