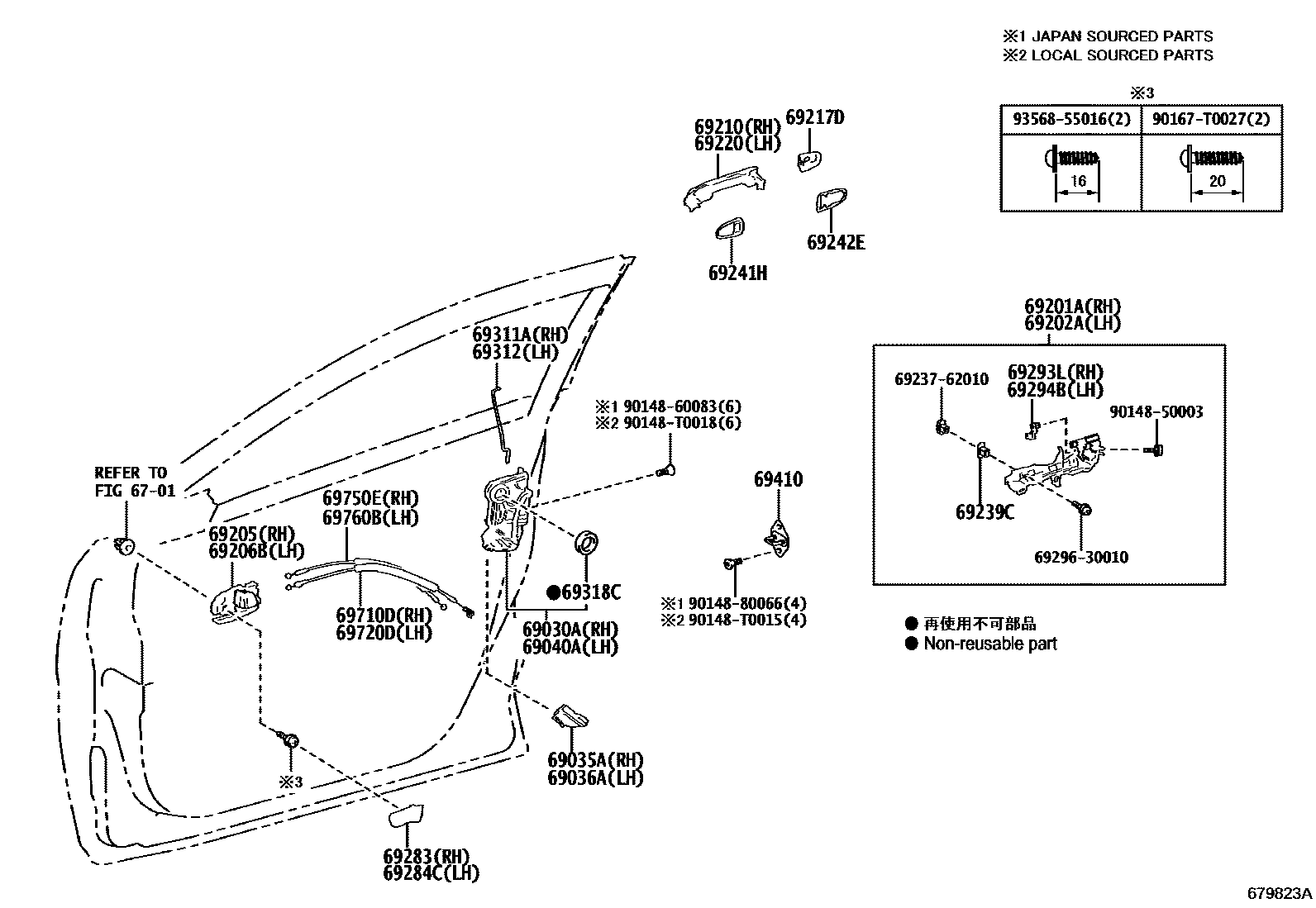

Toyota C-HR (THP) — FRONT DOOR LOCK & HANDLE
6701
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,070 ,2NA
PLATINUM WHITE PEARL MC.,2VP
METAL STREAM ME,1K0 ,2NK
ATTITUDE BLACK MC.,218 ,2VQ
ATTITUDE BLACK MC.,218
RED MC.,2NF
RADIANT GREEN ME.,2PY
BLUE ME.,2MU
NEBULA BLUE ME.,2VR
PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
LESS COLOR,DRIVER SIDE
LESS COLOR,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,070 ,2NA
PLATINUM WHITE PEARL MC.,2VP
METAL STREAM ME,1K0 ,2NK
ATTITUDE BLACK MC.,218 ,2VQ
ATTITUDE BLACK MC.,218
RED MC.,2NF
RADIANT GREEN ME.,2PY
BLUE ME.,2MU
NEBULA BLUE ME.,2VR
PAINT REQ.
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
6923762010RETAINER, DOOR OUTSIDE HANDLE
6929630010SCREW, DOOR INSIDE HANDLE
9014850003
9014860083
9014880066
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
9356855016
36 parts on this diagram · 1 diagram in section
