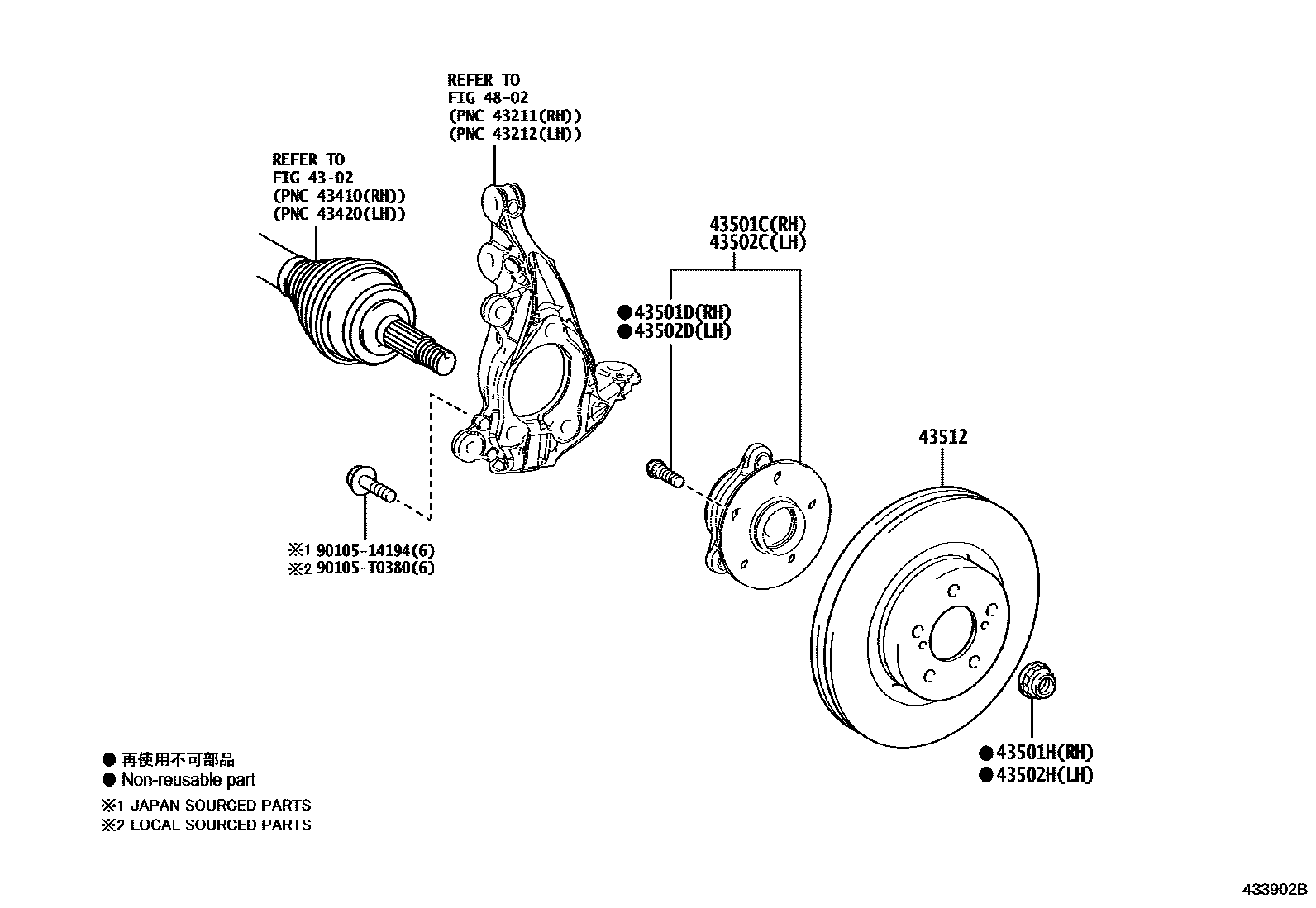

Toyota C-HR (THP) — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-0A010iZGX11..IDN,MA202006-202105

main43550-0A010iZYX10202006

main43550-10010iZGX11,ZYX10¥13,600201802-202005

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iZGX11..TH¥240201802-202006

main90942-02049iZGX11..IDN,MA¥240201802-202105

main90942-02049iZYX10¥240201802

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iZGX11..TH¥220201802-202006

(J)

main90177-22001iZGX11..IDN,MA¥220201802-202105

(J)

main90177-22001iZYX10¥220201802

(J)

main90177-T0017iZGX11..IDN,MA201802-202105

(L)

main90177-T0017iZGX11..TH201802-202006

(L)

main90177-T0017iZYX10201802

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-0A010iZYX10202006

main43550-0A010iZGX11..IDN,MA202006-202105

main43550-10010iZGX11,ZYX10¥13,600201802-202005

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iZGX11..IDN,MA¥240201802-202105

main90942-02049iZYX10¥240201802

main90942-02049iZGX11..TH¥240201802-202006

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iZGX11..TH¥220201802-202006

(J)

main90177-22001iZGX11..IDN,MA¥220201802-202105

(J)

main90177-22001iZYX10¥220201802

(J)

main90177-T0017iZGX11..IDN,MA201802-202105

(L)

main90177-T0017iZGX11..TH201802-202006

(L)

main90177-T0017iZYX10201802

(L)

43512DISC, FRONT

main43512-06180iZYX10202106

main43512-F4010iZGX11..TH¥9,300201802-202006

main43512-F4010iZGX11..IDN,MA¥9,300201802-202105

main43512-F4010iZYX10¥9,300201802-202106

4802

9010514194

main90105-14194¥240

90105T0380

main90105-T0380

11 parts on this diagram · 1 diagram in section
