Toyota C-HR (THP) — CRUISE CONTROL (AUTO DRIVE)

84632SWITCH, CRUISE CONTROL MAIN

main84632-34011iZGX11..TH¥4,960201802-202006

main84632-34011iZGX11..IDN,MA¥4,960201802-202105

main84632-34011iZYX10..G¥4,960201802-202106

main84632-47010iZYX10..E¥4,960201802

main84632-47010iZYX10..G¥4,960202106

84633WIRE, CRUISE CONTROL SWITCH

main84633-10010iZYX10..G¥210202106

main84633-10010iZYX10..E¥210201802

main84633-10020iZYX10..G201802-202106

main84633-10020iZGX11..TH201802-202006

main84633-10020iZGX11..IDN,MA201802-202105

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-F4020iZYX10..E201802-202005

main88210-F4020iZYX10..E202005-202106

P/N LABEL=88210F4020

main88210-F4090iZYX10..E202005-202106

P/N LABEL=88210F4090

sub88210-F4091

main88210-F4120iZYX10202106-202304

main88210-F4120iZYX10202304

P/N LABEL=88210F4120

main88210-F4140iZYX10202304

P/N LABEL=88210F4140

88215BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1

main88215-10010iZYX10..G¥1,600202106

main88215-10010iZYX10..E¥1,600201802

9015950199

main90159-50199¥70

9015960395

main90159-60395¥70

90159T0007

main90159-T0007

9016750063

main90167-50063¥60

9018206009

main90182-06009¥100

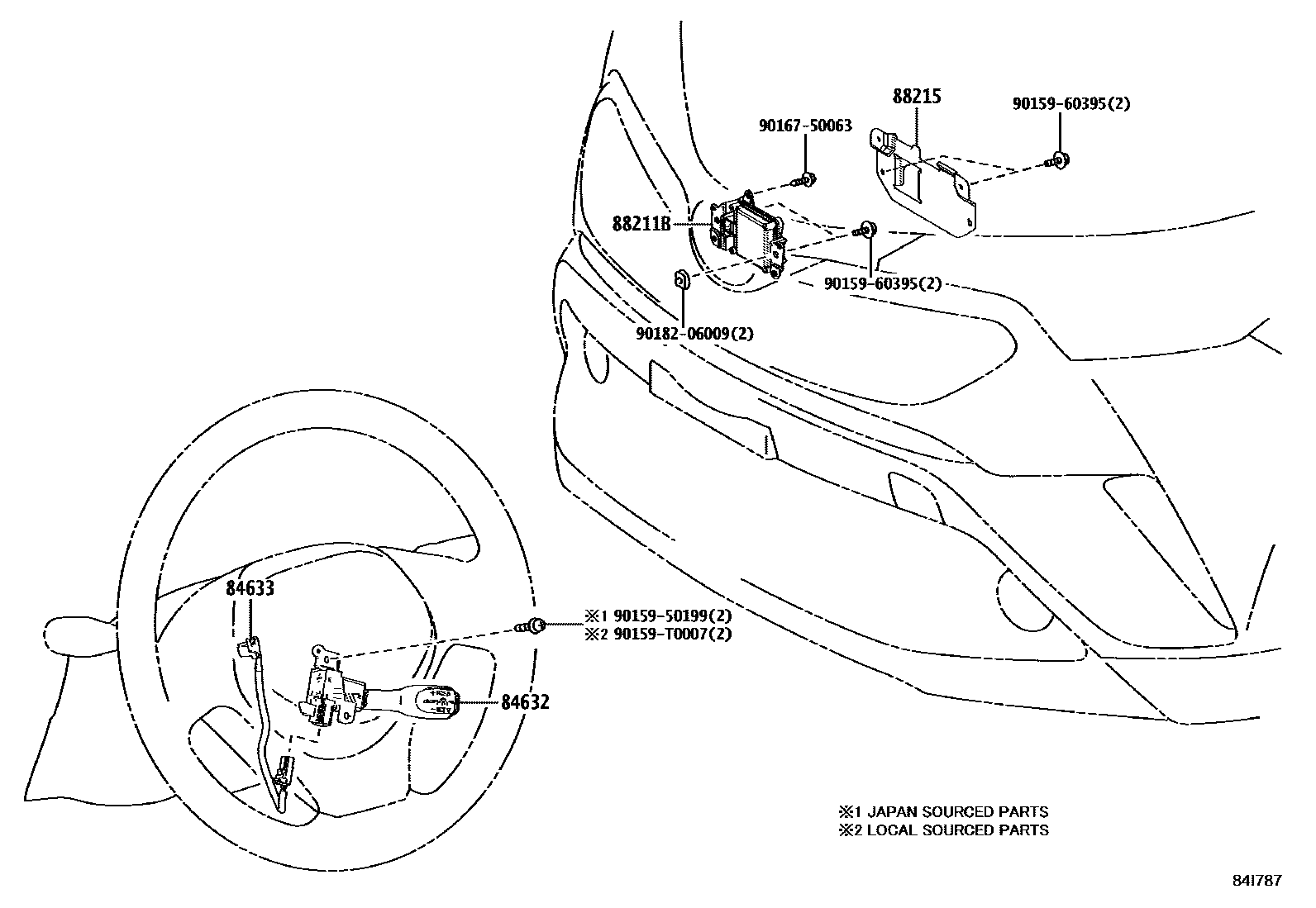

9 parts on this diagram · 1 diagram in section
