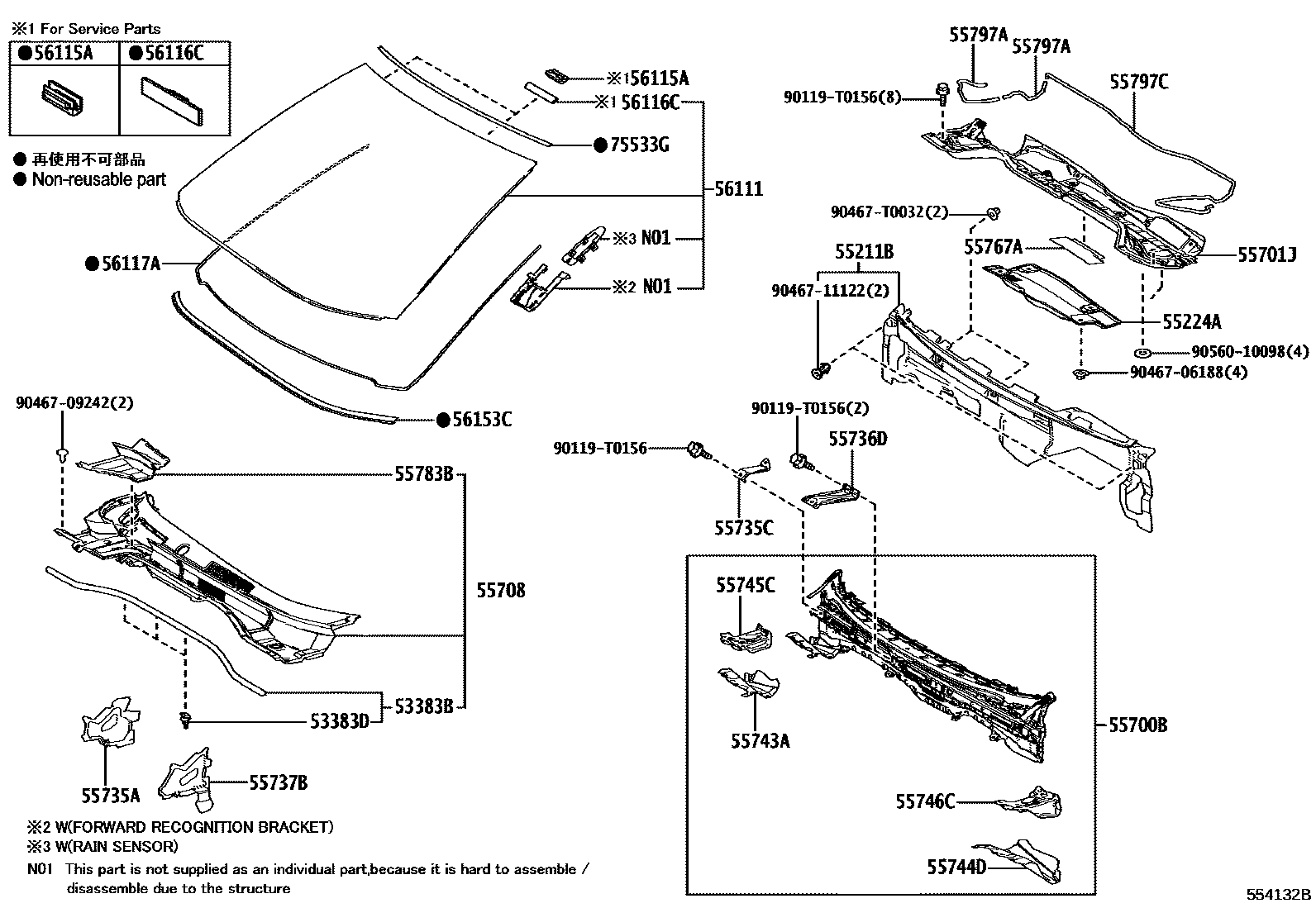

Toyota C-HR (THP) — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55211BSILENCER, FRONT PANEL
55224AINSULATOR, DASH PANEL, OUTER NO.2
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55735APLATE, WATER GUARD, LH
55735CREINFORCEMENT, COWL BODY MOUNTING, RH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55743AEXTENSION, COWL TO COWL SIDE, RH
55744DEXTENSION, COWL TO COWL SIDE, LH
55745CREINFORCEMENT, COWL TOP, INNER RH
55746CREINFORCEMENT, COWL TOP, INNER LH
55767ASHEET, COWL TOP INSULATOR, NO.5
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55797ASEAL, COWL WATER EXTRACT
55797CSEAL, COWL WATER EXTRACT, NO.2
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=2979
56153CMOULDING, FRONT WINDOW, INNER CENTER
75533GMOULDING, WINDSHIELD, OUTSIDE
90119T0156
9046706188
9046709242
9046711122
90467T0032
main90467-T0032
9056010098
31 parts on this diagram · 1 diagram in section
