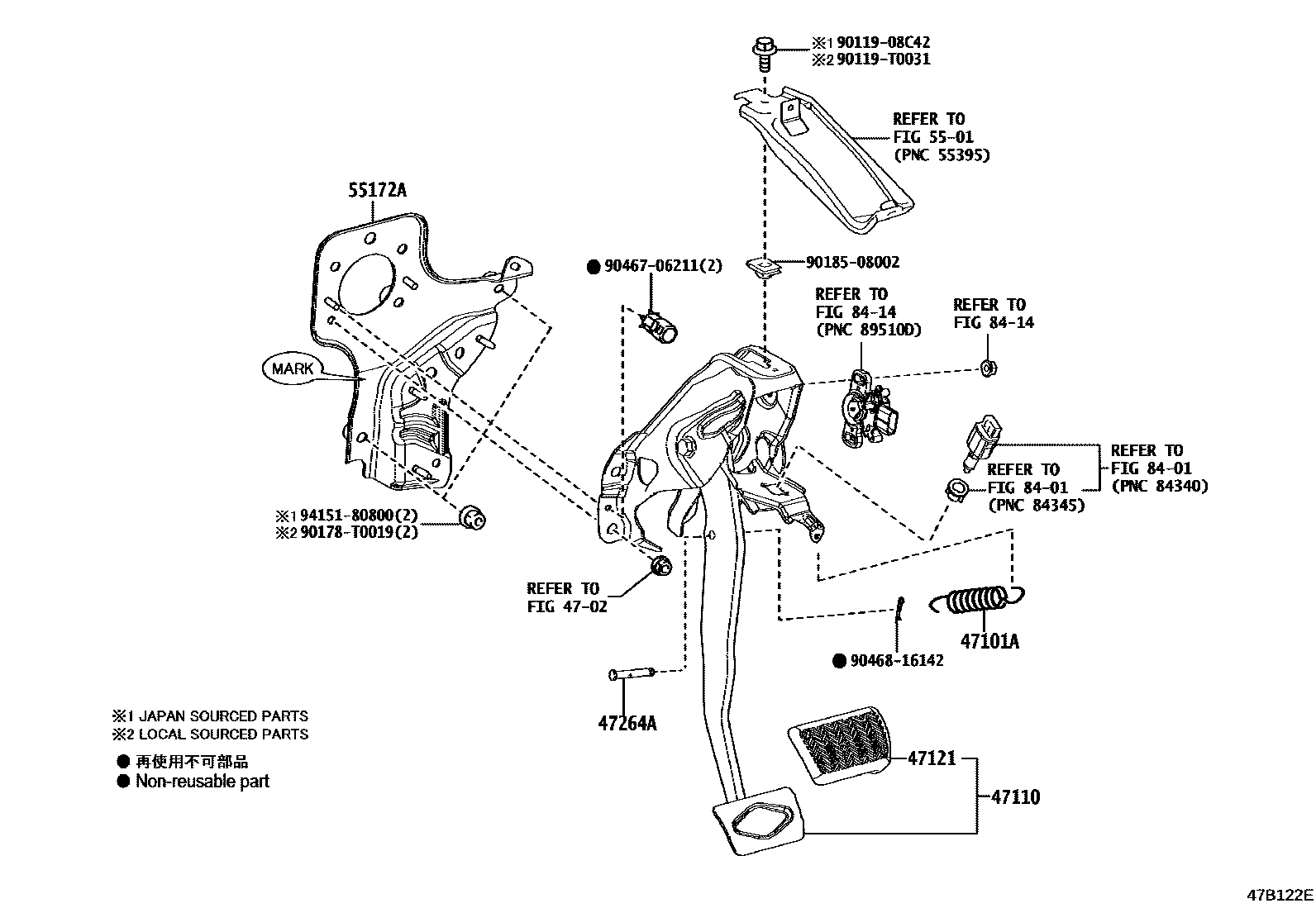

Toyota C-HR (THP) — BRAKE PEDAL & BRACKET

0001 1 0002 1

4702

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010iZGX11..IDN,MA¥180201802-202105

main90507-15010iZGX11..TH¥180201802-202006

main90507-16030iZYX10¥180201802

47110SUPPORT ASSY, BRAKE PEDAL

main47110-F4110iZGX11..TH201802-202006

main47110-F4110iZGX11..IDN,MA201802-202105

main47110-F4120iZYX10201802

47121PAD, BRAKE PEDAL

main47121-47010iZGX11..IDN,MA¥400201802-202105

main47121-47010iZGX11..TH¥400201802-202006

main47121-47010iZYX10¥400201802

47264APIN(FOR PUSH ROD)

main90249-06187iZGX11..TH¥120201802-202006

main90249-06187iZGX11..IDN,MA¥120201802-202105

main90249-08221iZYX10¥220201802

5501

55172ABASE, BRAKE PEDAL SUPPORT

main55172-0A020iZGX11..IDN,MA202006-202105

MARK UB

main55172-0A020iZYX10202006

MARK UB

main55172-10040iZGX11,ZYX10¥3,620201802-202006

NO MARK

8401

8414

9011908C42

main90119-08C42¥80

90119T0031

main90119-T0031

90178T0019

main90178-T0019

9018508002

main90185-08002¥200

9046706211

main90467-06211¥80

9046816142

main90468-16142¥70

9415180800

main94151-80800¥80

16 parts on this diagram · 2 diagrams in section
