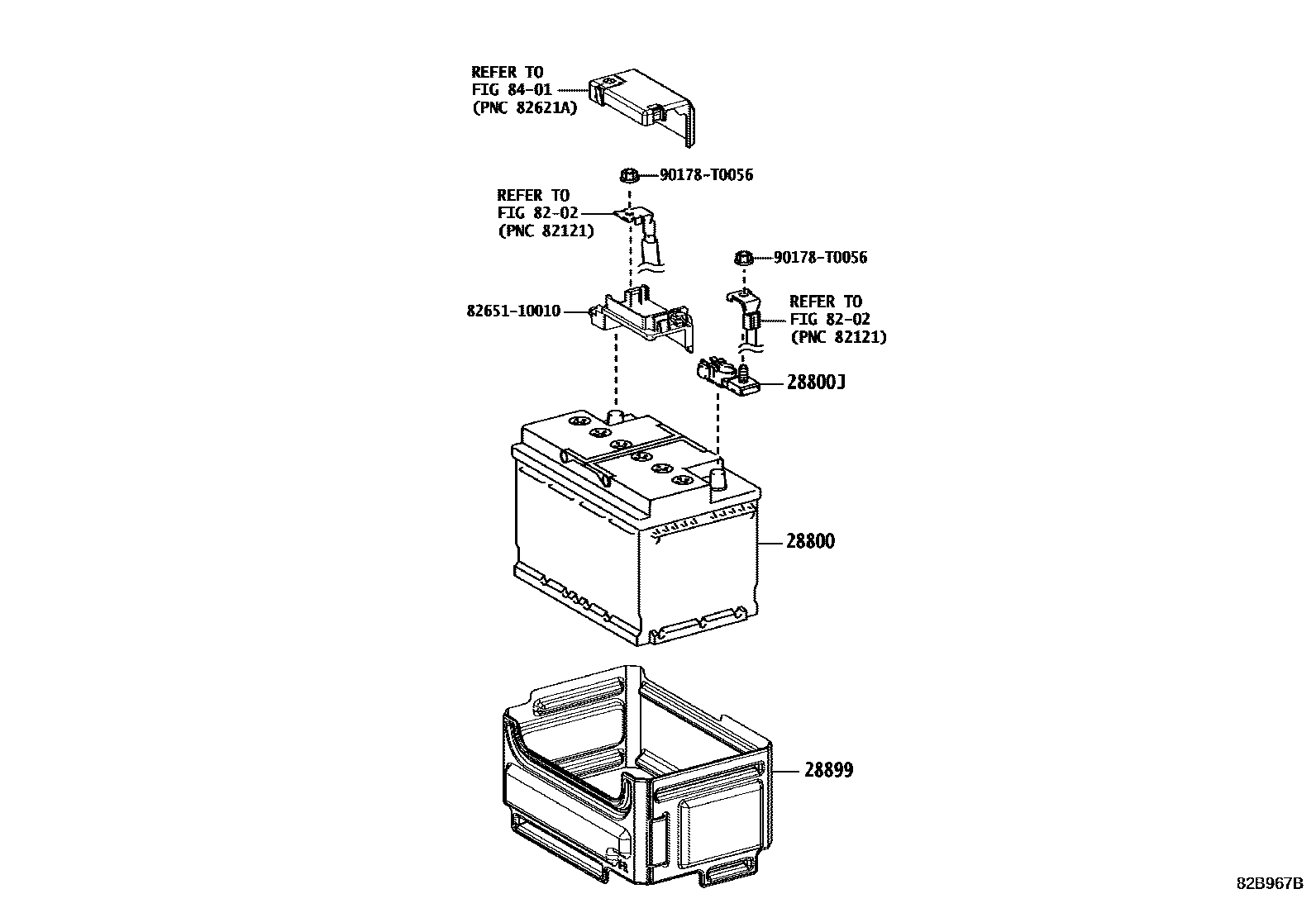

Toyota C-HR (THP) — BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-0C272i2ZRFBE..ZGX11201802-202002

LN2

sub28800-0C273

main28800-0L730i2ZRFBE..ZGX11202003-202105

LN2

sub28800-0L731

main28800-0T130i2ZRFXE..ZYX10201802-201907

LN1

sub28800-0T131

main28800-0T131i2ZRFXE..ZYX10201908-202211

LN1

sub28800-0T132

main28800-0T132i2ZRFXE..ZYX10202212

LN1

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i2ZRFBE..ZGX11..TH¥850201802-202105

28899INSULATOR, BATTERY

main28899-0T020i2ZRFXE..ZYX10201802-202002

sub28899-0T120

main28899-0T030i2ZRFBE..ZGX11201802-202002

sub28899-0T130

main28899-0T120i2ZRFXE..ZYX10202003

main28899-0T130i2ZRFBE..ZGX11..TH202003-202105

8202

8401

8265110010BLOCK, TERMINAL

main82651-10010¥2,000

90178T0056

main90178-T0056

7 parts on this diagram · 5 diagrams in section
