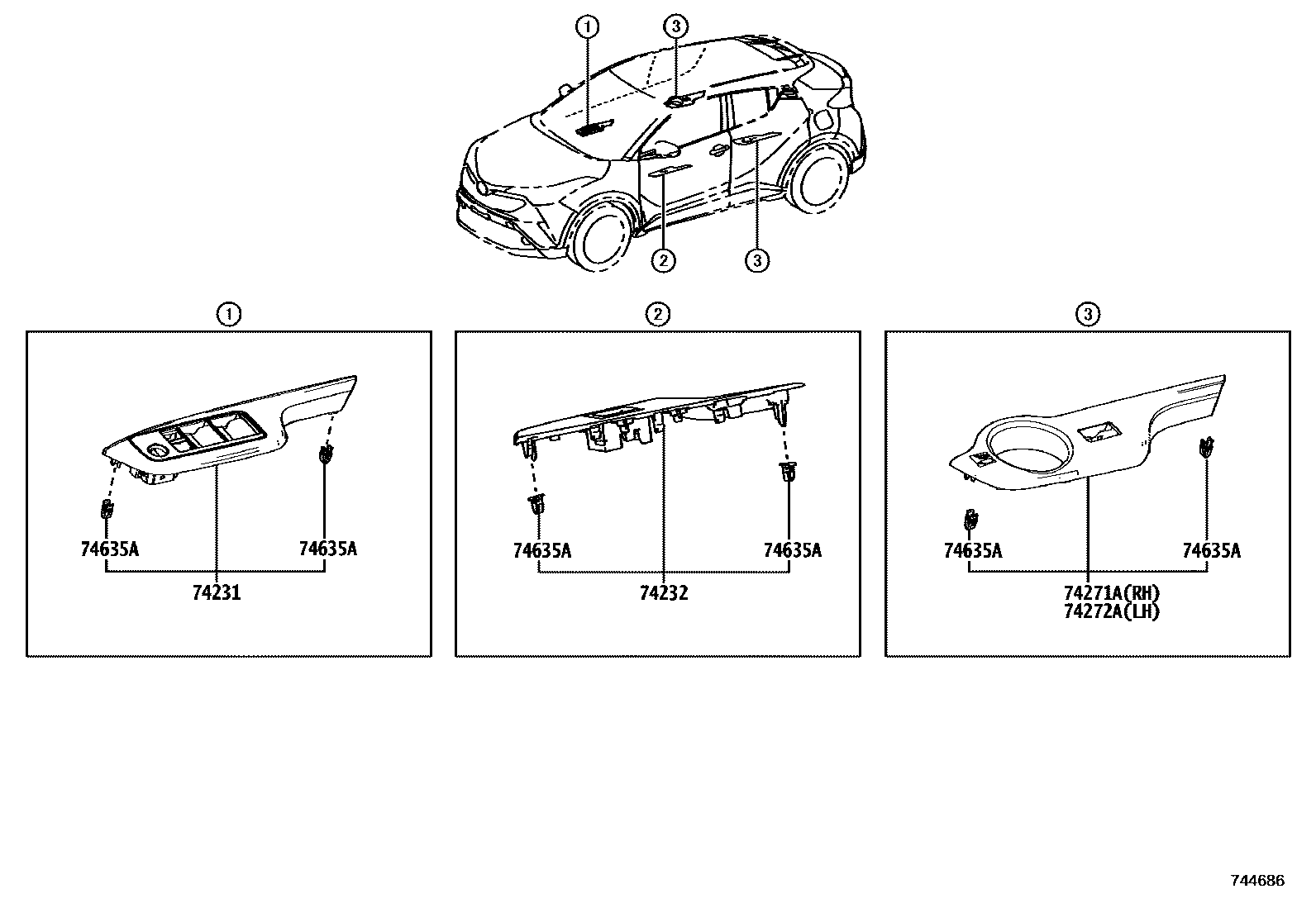

Toyota C-HR (THP) — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-10090iZGX11..IDN,MA¥2,290201802-202105

main74231-10090iZGX11..E..TH¥2,290201802-202006

main74231-10090iZYX10¥2,290201802

main74231-10100iZGX11..N¥2,290201802-202006

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-10050iZGX11..N¥2,560201802-202006

main74232-10060iZGX11..E..TH¥2,560201802-202006

main74232-10060iZGX11..IDN,MA¥2,560201802-202105

main74232-10060iZYX10¥2,560201802

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-10010iZYX10¥2,340201802

main74271-10010iZGX11..TH¥2,340201802-202006

main74271-10010iZGX11..IDN,MA¥2,340201802-202105

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-10010iZGX11..TH¥2,340201802-202006

main74272-10010iZGX11..IDN,MA¥2,340201802-202105

main74272-10010iZYX10¥2,340201802

74635ACLIP

main90467-12080iZGX11..TH¥60201802-202006

main90467-12080iZGX11..IDN,MA¥60201802-202105

main90467-12080iZYX10¥60201802

5 parts on this diagram · 2 diagrams in section
