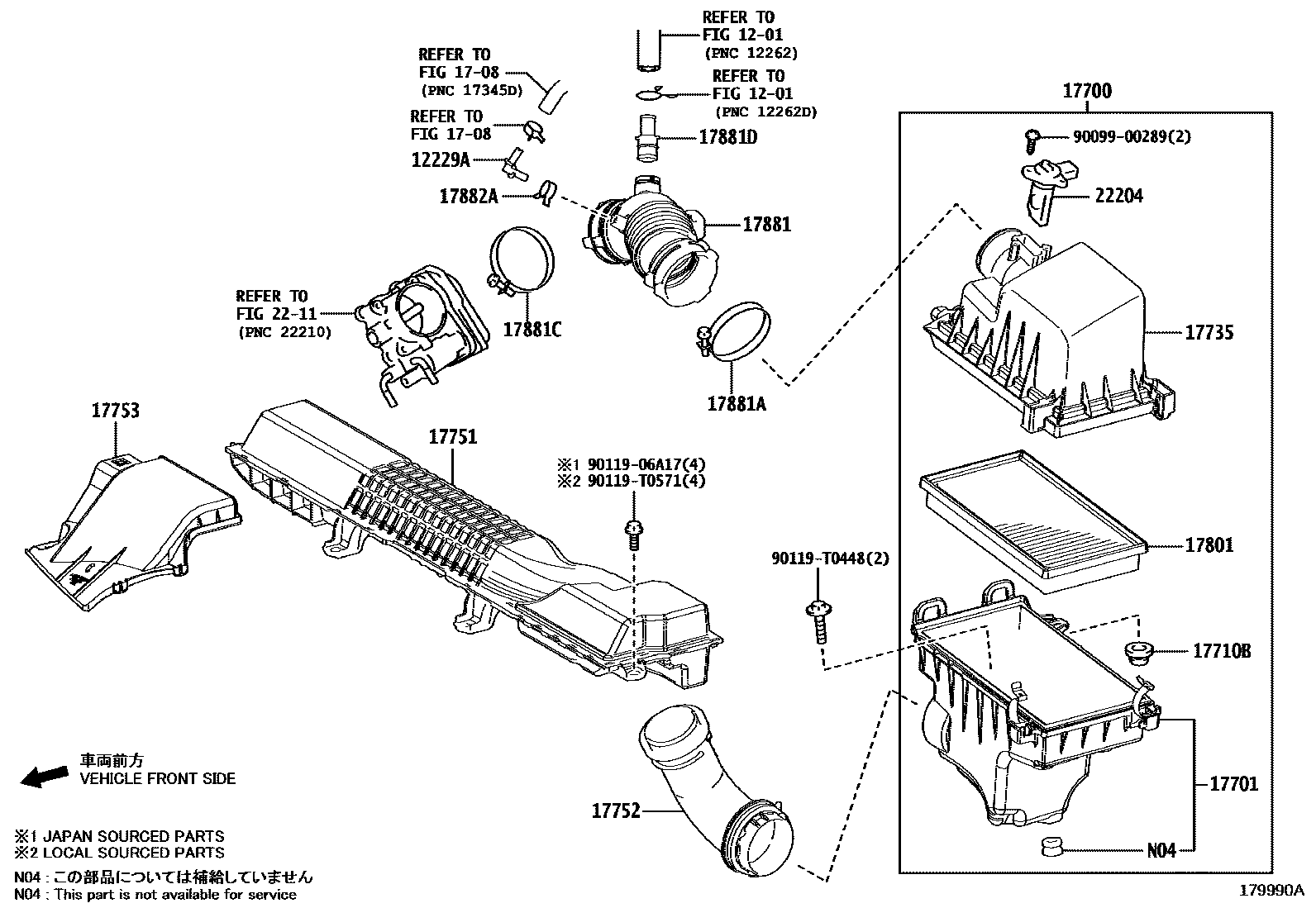

Toyota C-HR (THP) — AIR CLEANER
1201
12229APIPE, VENTILATION
1708
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17710BGROMMET
17735CAP, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17752INLET, AIR CLEANER, NO.2
17753INLET, AIR CLEANER, NO.3
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)
17881DTUBE, UNION(FOG AIR CLEANER HOSE)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
2211
22204METER SUB-ASSY, INTAKE AIR FLOW
9009900289
9011906A17
90119T0448
main90119-T0448
90119T0571
main90119-T0571
22 parts on this diagram · 2 diagrams in section
