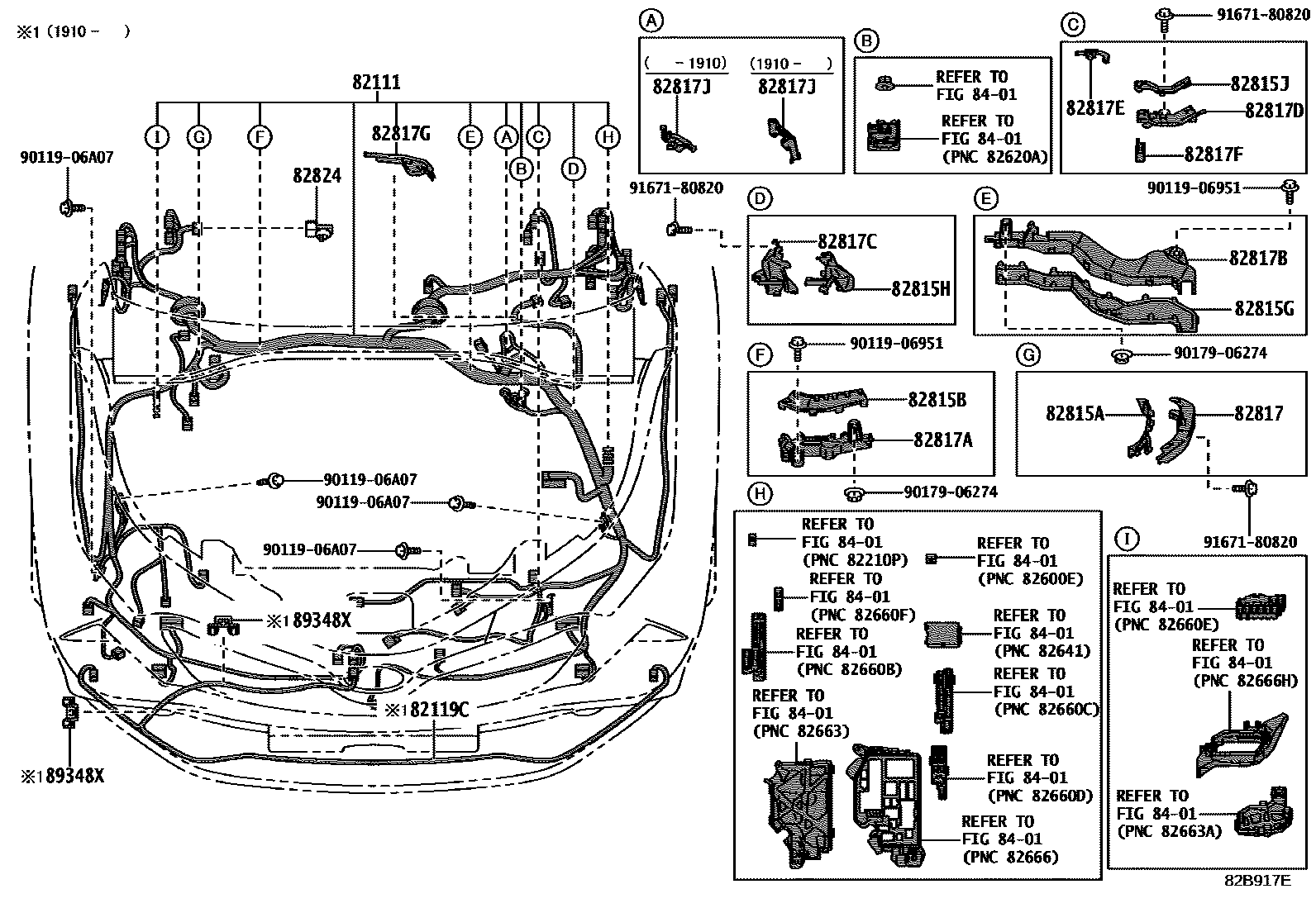

Toyota C-HR (JPP) — WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1INSTRUMENT PANEL 0005 1DOOR 0006 1FLOOR & ROOF 0007 1SEAT 0008 1CLAMP & BRACKET 0009 1CONNECTOR 1/3 0010 1CONNECTOR 2/3 0011 1CONNECTOR 3/3

82111WIRE, ENGINE ROOM MAIN

main82111-10D60iZGX10201801-201806

main82111-10D61iZGX10201806-201910

main82111-10J30iZGX10..E201910-202008

main82111-10J31iZGX10..E202008-202212

main82111-10J40iZGX10..D,G201910-202008

main82111-10J41iZGX10..D,G202008-202212

82119CWIRE, ENGINE ROOM, NO.5

main82119-10060iZGX10..E201910-202212

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-12L00iZGX10201909-202212

main82815-F4200iZGX10201801-201909

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-12L10iZGX10201909-202212

main82815-F4210iZGX10201801-201909

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-12L20iZGX10201909-202212

main82815-F4220iZGX10201801-201909

82815HCOVER, WIRING HARNESS PROTECTOR NO.6

main82815-12L30iZGX10201909-202212

main82815-F4230iZGX10201801-201909

82815JCOVER, WIRING HARNESS PROTECTOR, NO.7

main82815-12L40iZGX10¥350202008-202212

main82815-F4280iZGX10¥470201801-202008

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-12Y70iZGX10201909-202212

main82817-F4230iZGX10201801-201909

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-12Y80iZGX10201909-202212

main82817-F4240iZGX10201801-201909

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-12Y90iZGX10201909-202212

main82817-F4250iZGX10201801-201909

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-12Z00iZGX10201909-202212

main82817-F4260iZGX10201801-201909

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-12Z20iZGX10¥520202008-202212

main82817-F4310iZGX10¥700201801-202008

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-F4320iZGX10¥220201801-202212

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-12Z50iZGX10¥230202008-202212

main82817-F4470iZGX10¥320201801-202008

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-F4520iZGX10201801-202212

82817JPROTECTOR, WIRING HARNESS, NO.9

main82817-12W30iZGX10201910-202212

main82817-F4480iZGX10201801-201910

82824CONNECTOR, WIRING HARNESS

main82824-12530iZGX10¥550201903-202212

8401

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50050iZGX10..E¥260201910-202212

9011906951

main90119-06951¥80

9011906A07

main90119-06A07¥60

9017906274

main90179-06274¥70

9167180820

main91671-80820¥80

23 parts on this diagram · 11 diagrams in section
