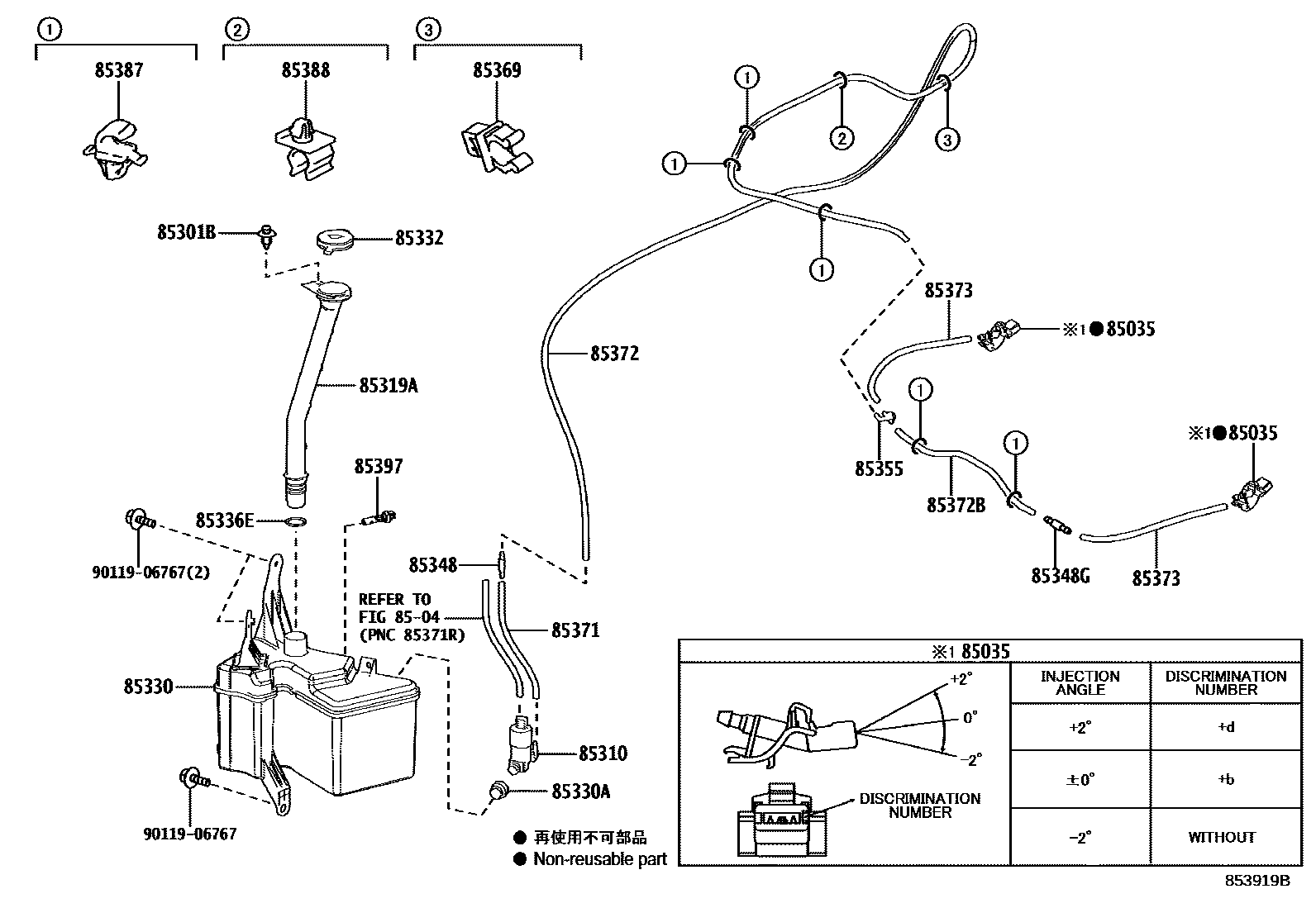

Toyota C-HR (JPP) — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE +2
8504
85301BCLIP, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85369CLAMP
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=173
L=173,COLD SPEC
L=1450(*H,L=270)
L=1450(*H,L=270),COLD SPEC
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=2200
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=390)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=210)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
9011906767
21 parts on this diagram · 3 diagrams in section
