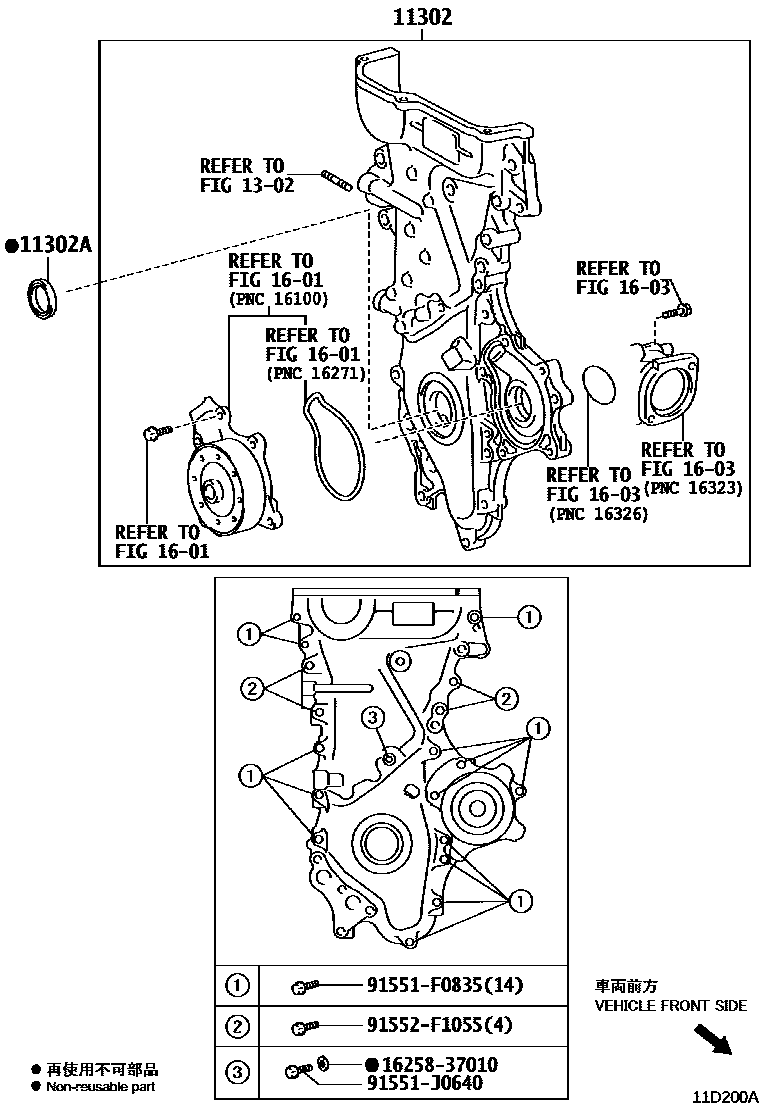

Toyota C-HR (JPP) — TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-37070i3ZRFAE..ZGX10¥24,100201801-201910

main11310-37070i3ZRFAE..ZGX10¥24,100201910-202212

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38096i3ZRFAE..ZGX10¥400201801-201910

main90311-38096i3ZRFAE..ZGX10¥400201910-202212

1302

1601

1603

1625837010GASKET(FOR HEATER RETURN)

main16258-37010¥340

91551F0835

main91551-F0835¥80

91551J0640

main91551-J0640¥80

91552F1055

main91552-F1055¥160

9 parts on this diagram · 1 diagram in section
