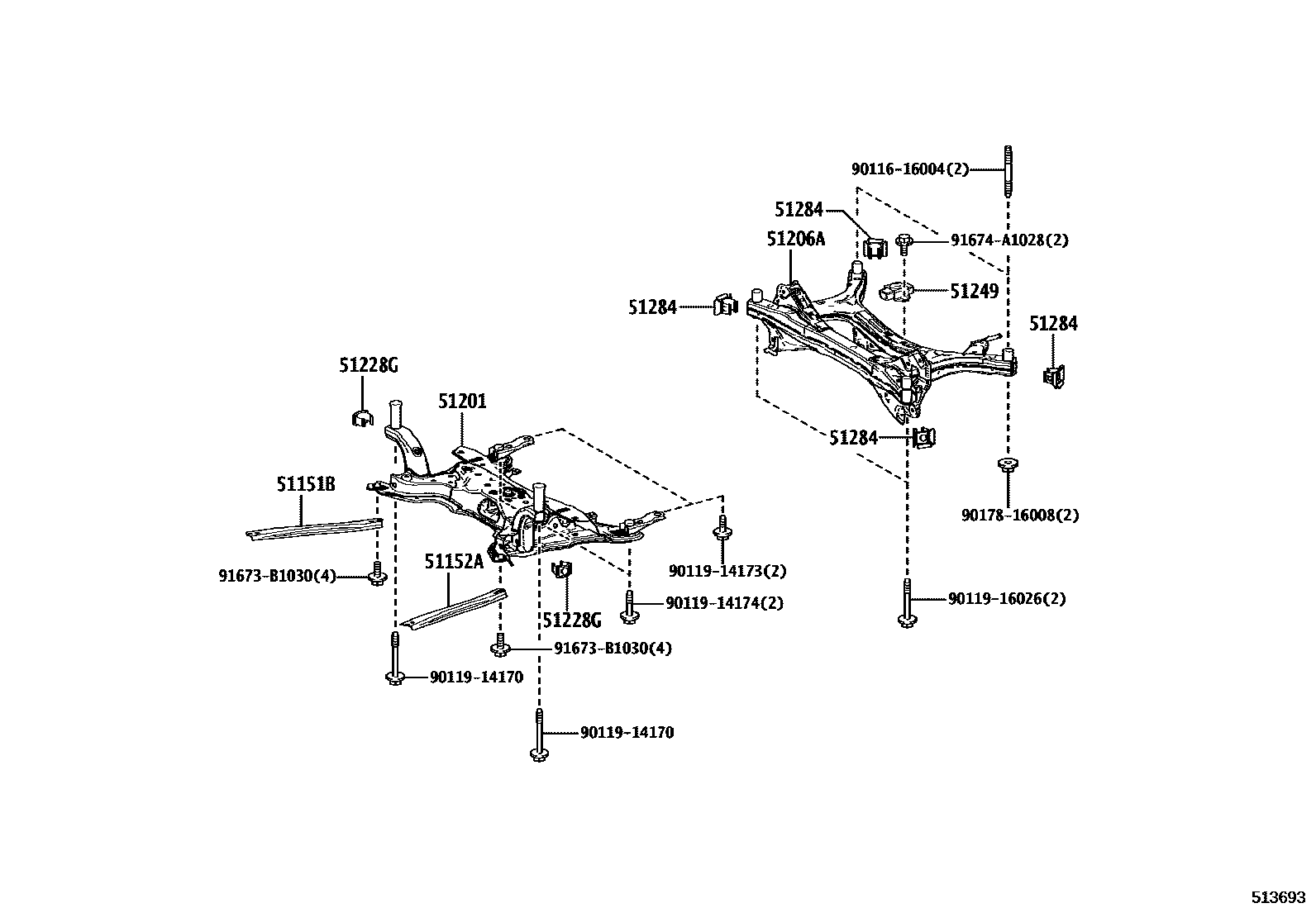

Toyota C-HR (JPP) — SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1

51151BREINFORCEMENT, SIDE RAIL, NO.1 RH

main51151-10010iZGX10¥2,650201910-202212

main51151-10010iZGX10¥2,650201801-201910

51152AREINFORCEMENT, SIDE RAIL, NO.1 LH

main51151-10010iZGX10¥2,650201801-201910

main51151-10010iZGX10¥2,650201910-202212

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-10121iZGX10¥73,700201801-201907

sub51201-10122¥61,400

main51201-10122iZGX10¥61,400201908-201910

main51201-10122iZGX10¥61,400201910-202212

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-10011iZGX10¥52,800201801-201910

main51206-10011iZGX10¥52,800201910-202212

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-47010iZGX10¥220201801-201910

main51228-47010iZGX10¥220201910-202212

51249DAMPER, REAR SUSPENSION MEMBER

main51249-10010iZGX10¥4,390201801-201910

main51249-10010iZGX10¥4,390201910-202212

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010iZGX10¥340201910-202212

main51284-47010iZGX10¥340201801-201910

9011616004

main90116-16004¥610

9011914170

main90119-14170¥490

9011914173

main90119-14173¥310

9011914174

main90119-14174¥360

9011916026

main90119-16026¥610

9017816008

main90178-16008¥190

91673B1030

main91673-B1030¥120

91674A1028

main91674-A1028¥120

15 parts on this diagram · 3 diagrams in section
