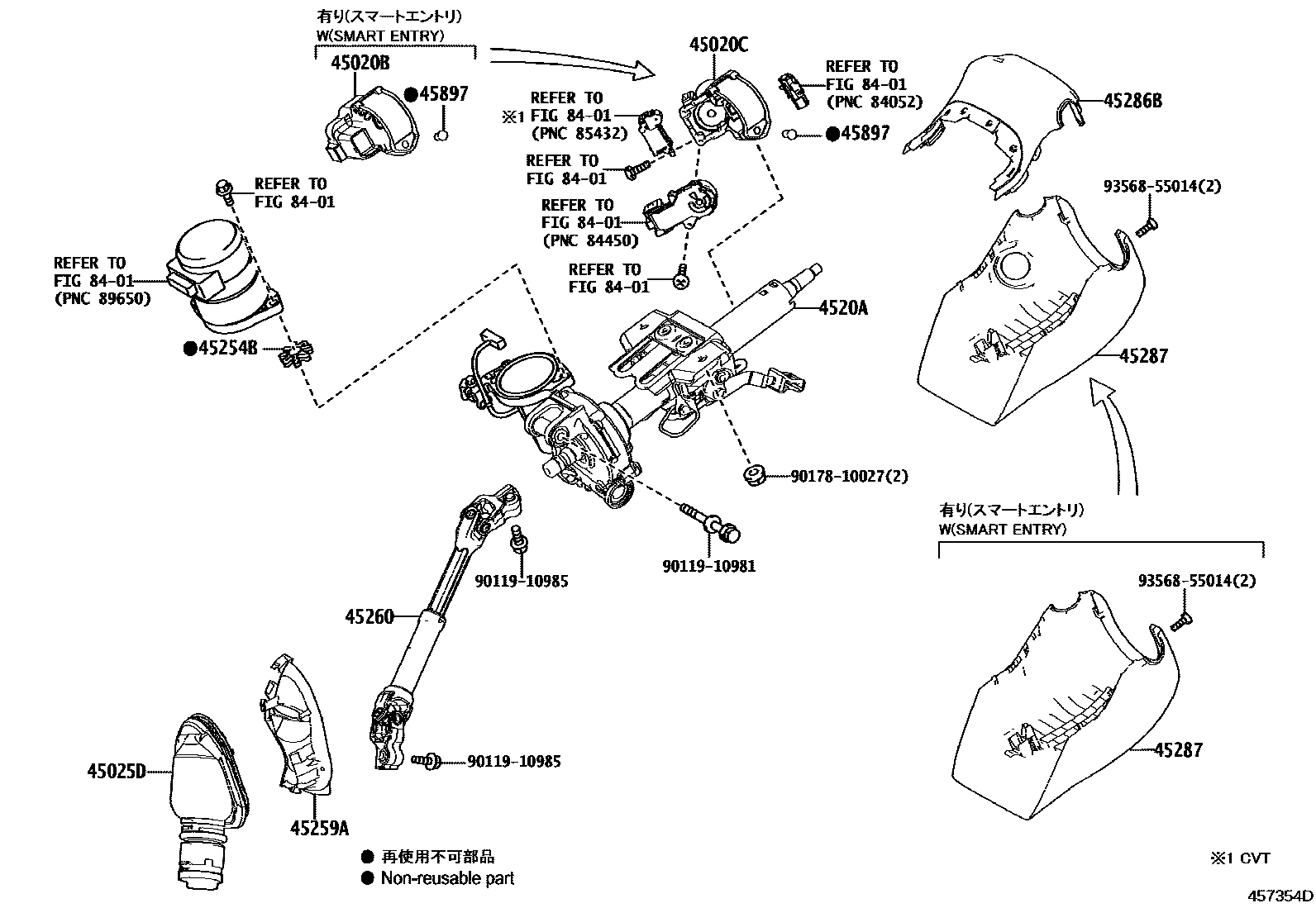

Toyota C-HR (JPP) — STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-10120iZGX10¥11,600201805-202212

main45280-12410iZGX10¥14,000201801-201805

sub45280-10120¥11,600

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30B20iZGX10..E,G¥14,300201910-202212

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-76010iZGX10201801-202212

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-10050iZGX10..D201801-202212

main4520A-10060iZGX10..E,G201910-202212

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iZGX10¥220201801-202212

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-10020iZGX10201801-202212

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-10040iZGX10201801-202212

45286BCOVER, STEERING COLUMN, UPR

main45286-10280-C1iZGX10..G201910-202212

BLACK,TRIM2#

main45286-10280-C1iZGX10..E201910-202212

BLACK,TRIM2#,8#

main45286-F4010-C1iZGX10201801-201910

BLACK,TRIM2#

sub45286-F4010

main45286-F4010-C2iZGX10..D201910-202212

BLACK,TRIM2#

sub45286-F4010

45287COVER, STEERING COLUMN, LWR

main45024-10070-C1iZGX10..E201910-202212

BLACK,TRIM2#,8#

main45024-10070-C1iZGX10..G201910-202212

BLACK,TRIM2#

main45287-F4010-C1iZGX10201801-201910

BLACK,TRIM2#

sub45287-F4010

main45287-F4010-C2iZGX10..D201910-202212

BLACK,TRIM2#

sub45287-F4010

45897BOLT, STEERING LOCK SET

main45897-12020iZGX10¥210201801-202212

8401

9011910981

main90119-10981¥190

9011910985

main90119-10985¥100

9017810027

main90178-10027¥100

9356855014

main93568-55014¥70

15 parts on this diagram · 1 diagram in section
