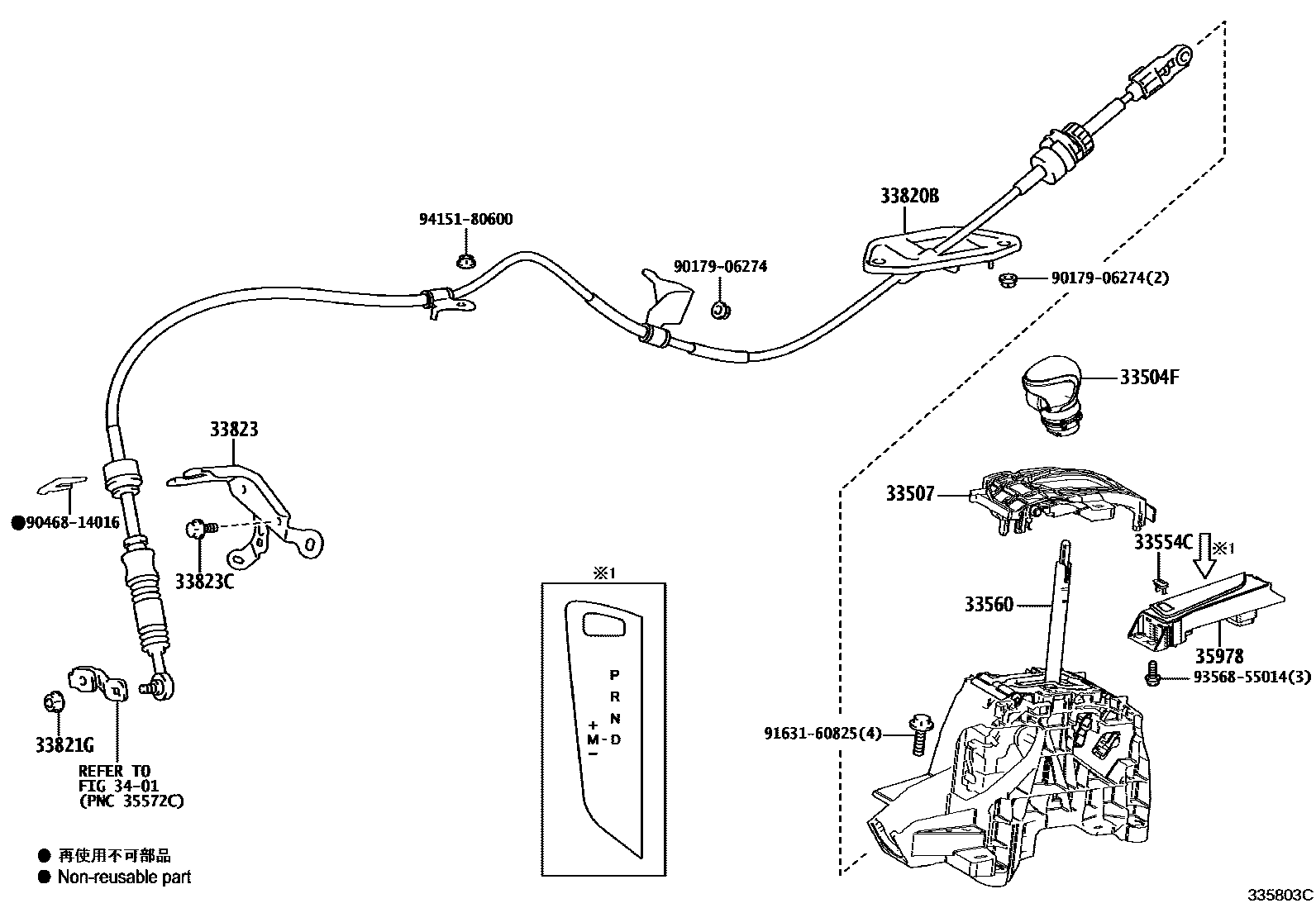

Toyota C-HR (JPP) — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-10070-C2iZGX10201801-201804

BLACK,TRIM2#

sub33504-10071¥4,260

main33504-10071-C2iZGX10201805-202212

BLACK,TRIM2#

main33504-10071-C2iZGX10..D201910-202212

BLACK,TRIM2#,4#,8#

main33504-10071-C2iZGX10..D201910-202212

BLACK,TRIM2#,8#

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-10050iZGX10201902-202212

main33507-F4010iZGX10201801-201901

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-F4010iZGX10201801-202212

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-12640iZGX10201902-202212

main33560-12650iZGX10..E,G201910-202212

main33560-F4010iZGX10201801-201901

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-10340iZGX10201905-202212

main33820-F4030iZGX10201801-201904

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main94151-80800iZGX10¥80201801-202212

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-28300iZGX10¥940201801-202212

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iZGX10¥120201801-202212

3401

35978INDICATOR, SHIFT POSITION

main35978-F4010iZGX10201801-202212

9017906274

main90179-06274¥70

9046814016

main90468-14016¥160

9163160825

main91631-60825¥80

9356855014

main93568-55014¥70

9415180600

main94151-80600¥60

15 parts on this diagram · 1 diagram in section
