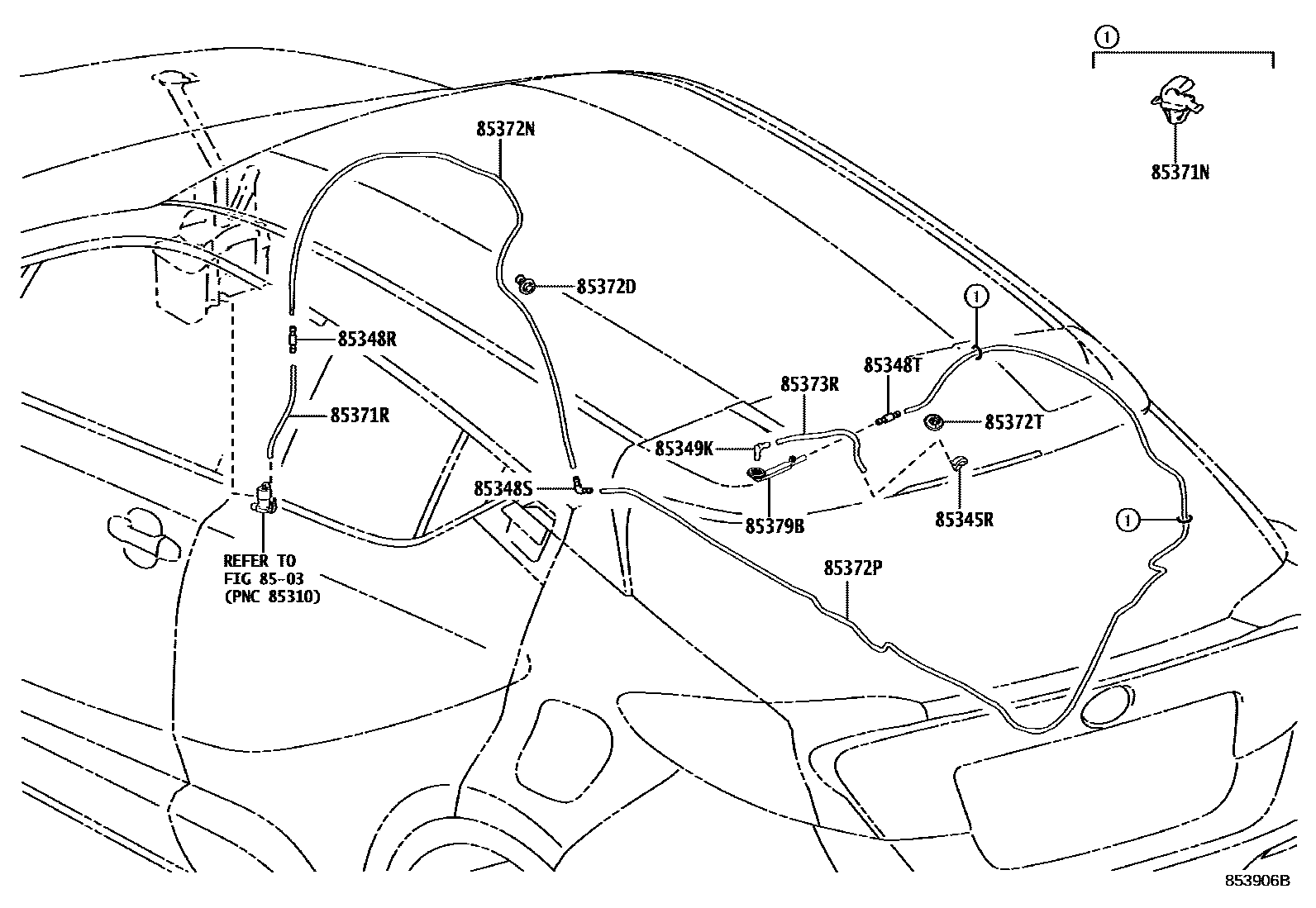

Toyota C-HR (JPP) — REAR WASHER
8503
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85349KJOINT, REAR WASHER ELBOW, NO.2
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=173
L=173,COLD SPEC
L=1450(*H,L=230)
L=1450(*H,L=230),COLD SPEC
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1528
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=3340
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=210)
85379BGROMMET, WASHER, A
14 parts on this diagram · 1 diagram in section
