Toyota C-HR (JPP) — OIL FILTER

15600AUNION(FOR OIL FILTER)

main90904-04006i3ZRFAE..ZGX10¥450201801-202212

CARTRIGE TYPE

15601FILTER SUB-ASSY, OIL

main90915-10003i3ZRFAE..ZGX10¥1,050201801-202212

CARTRIGE TYPE

sub90915-10009¥1,050

15609BRACKET SUB-ASSY, OIL FILTER

main15609-37060i3ZRFAE..ZGX10¥7,000201801-202212

CARTRIGE TYPE

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002i3ZRFAE..ZGX10¥180201801-202212

CARTRIGE TYPE

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main90430-20018i3ZRFAE..ZGX10¥90201801-202212

CARTRIGE TYPE

15609HRING, O(FOR OIL FILTER BRACKET)

main96723-24020i3ZRFAE..ZGX10¥140201801-202212

CARTRIGE TYPE

91551F0835

main91551-F0835¥80

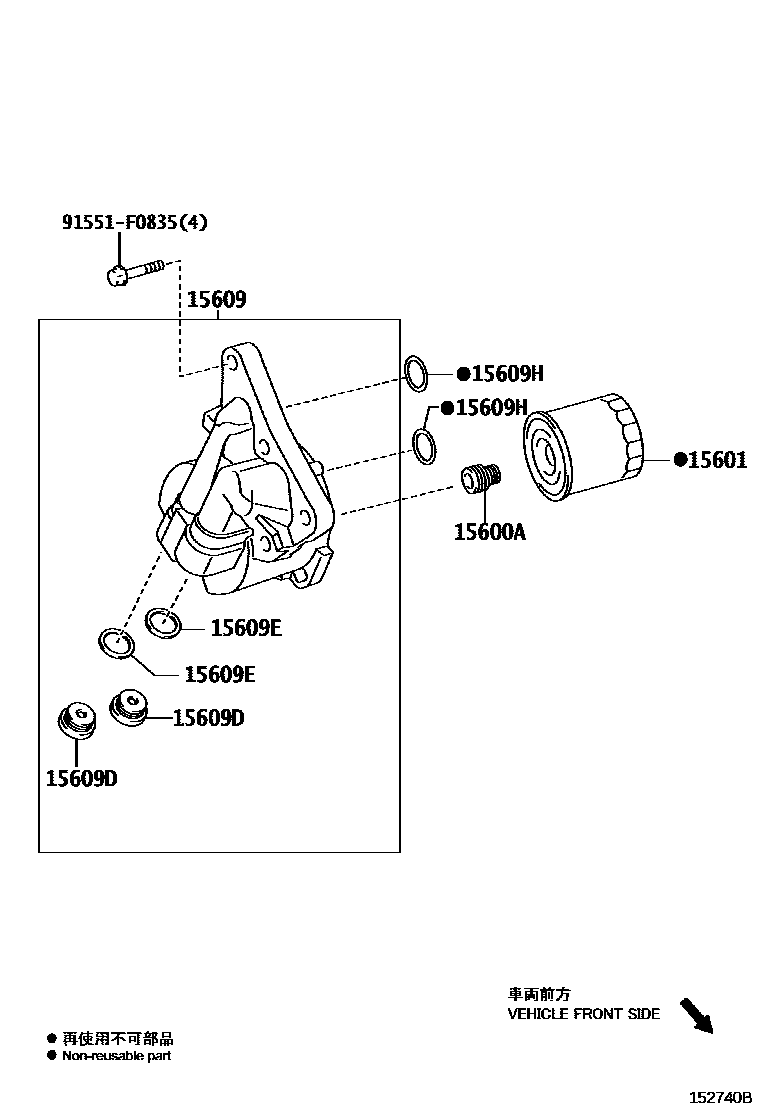

7 parts on this diagram · 1 diagram in section
