Toyota C-HR (JPP) — IGNITION COIL & SPARK PLUG / GLOW PLUG

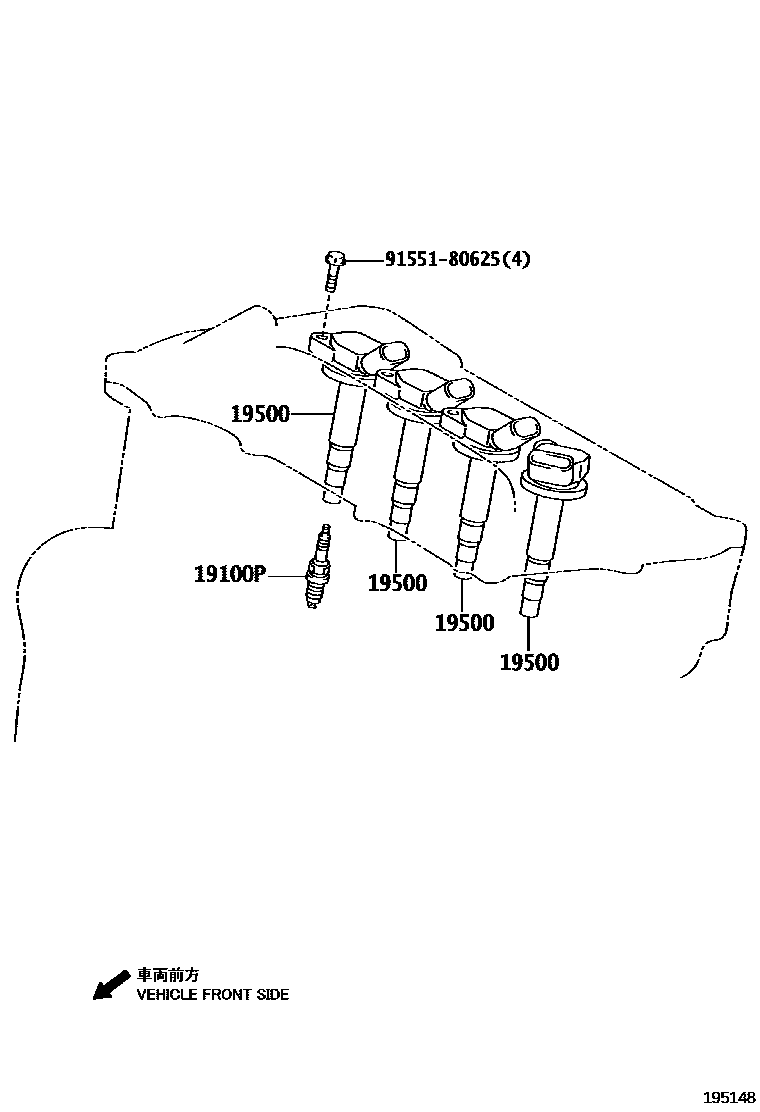

Parts diagram

19100PPLUG, SPARK

main90919-01275i¥2,000201801-202212

SC16HR11

19500COIL ASSY, IGNITION

main90919-02258i¥7,500201801-202212

9155180625

main91551-80625¥60

3 parts on this diagram · 1 diagram in section
