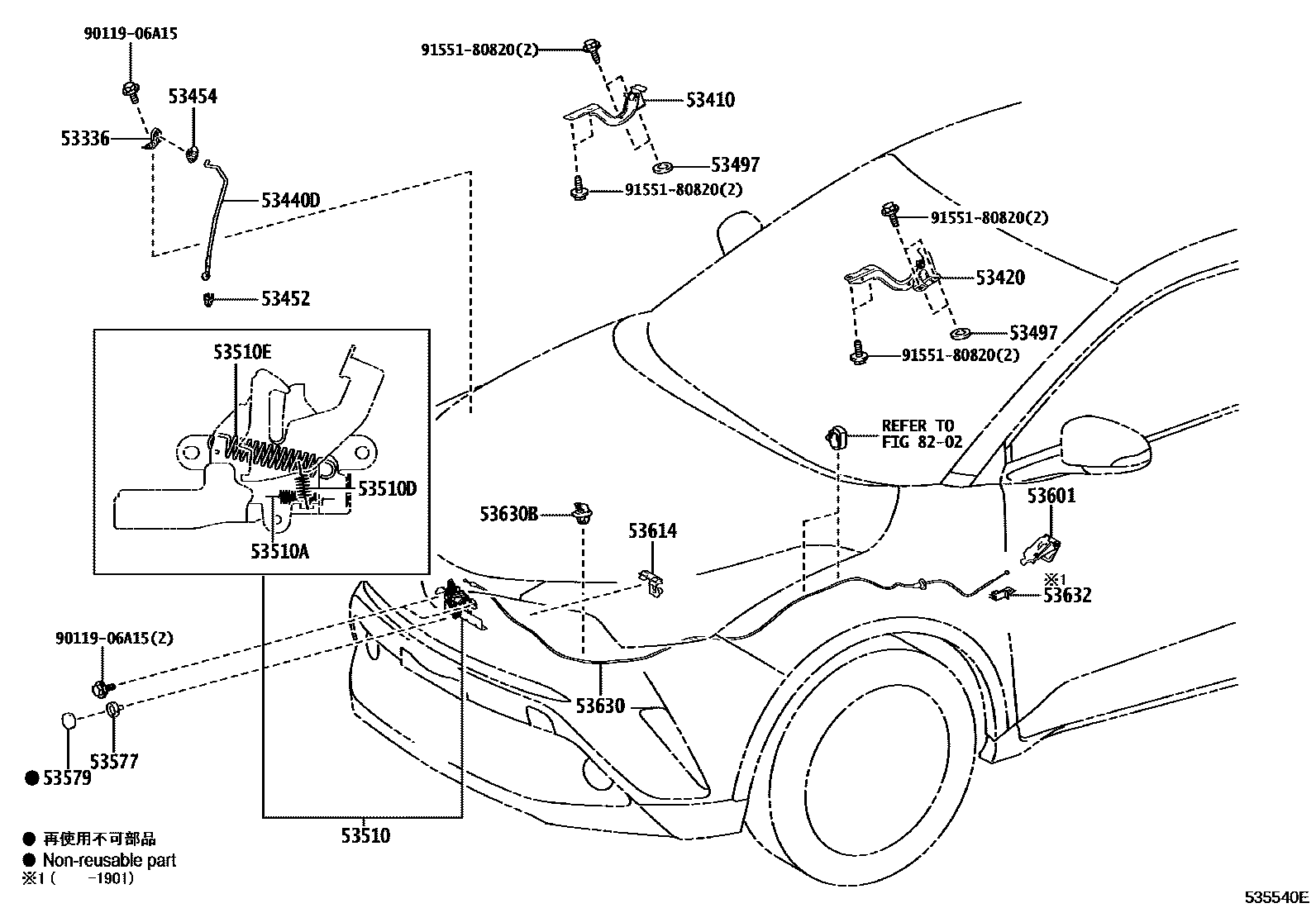

Toyota C-HR (JPP) — HOOD LOCK & HINGE

53336BRACKET, HOOD STAY, RH

main53336-10010iZGX10¥480201801-202212

53410HINGE ASSY, HOOD, RH

main53410-10100iZGX10¥1,870201801-202212

53420HINGE ASSY, HOOD, LH

main53420-10090iZGX10¥1,870201801-202212

53440DSUPPORT ASSY, HOOD

main53440-10090iZGX10¥1,550201801-202212

53452HOLDER, HOOD STAY

main53452-10010iZGX10¥340201801-202212

53454CLIP, HOOD SUPPORT ROD

main53454-12030iZGX10¥100201801-202212

53497PAD, HOOD HINGE, NO.1

main53497-42010iZGX10¥100201806-202212

T=0.5

53510LOCK ASSY, HOOD

main53510-10260iZGX10201801-202212

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09052iZGX10¥90201801-202212

WD=0.9,CW=20.75

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iZGX10¥90201801-202212

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iZGX10¥120201801-202212

WD=1.6,CW=12

53577BOLT, HOOD LOCK

main53577-33010iZGX10¥230201801-202212

53579CAP, HOOD LOCK NUT

main53579-50010iZGX10¥100201801-202212

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iZGX10..D201910-202212

BLACK,TRIM2#,4#,8#

main53601-30100-C0iZGX10201901-202212

BLACK,TRIM2#

main53601-30100-C0iZGX10..D201910-202212

BLACK,TRIM2#,8#

main53601-52010-C1iZGX10201801-201901

BLACK,TRIM2#

sub53601-52010¥2,230

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-10030iZGX10¥200201801-202212

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-10280iZGX10201801-201901

main53630-10281iZGX10201901-202212

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iZGX10¥80201801-202212

53632HOLDER, HOOD LOCK CONTROL CABLE

main53632-10010iZGX10¥200201801-201901

8202

9011906A15

main90119-06A15¥60

9155180820

main91551-80820¥80

21 parts on this diagram · 1 diagram in section
