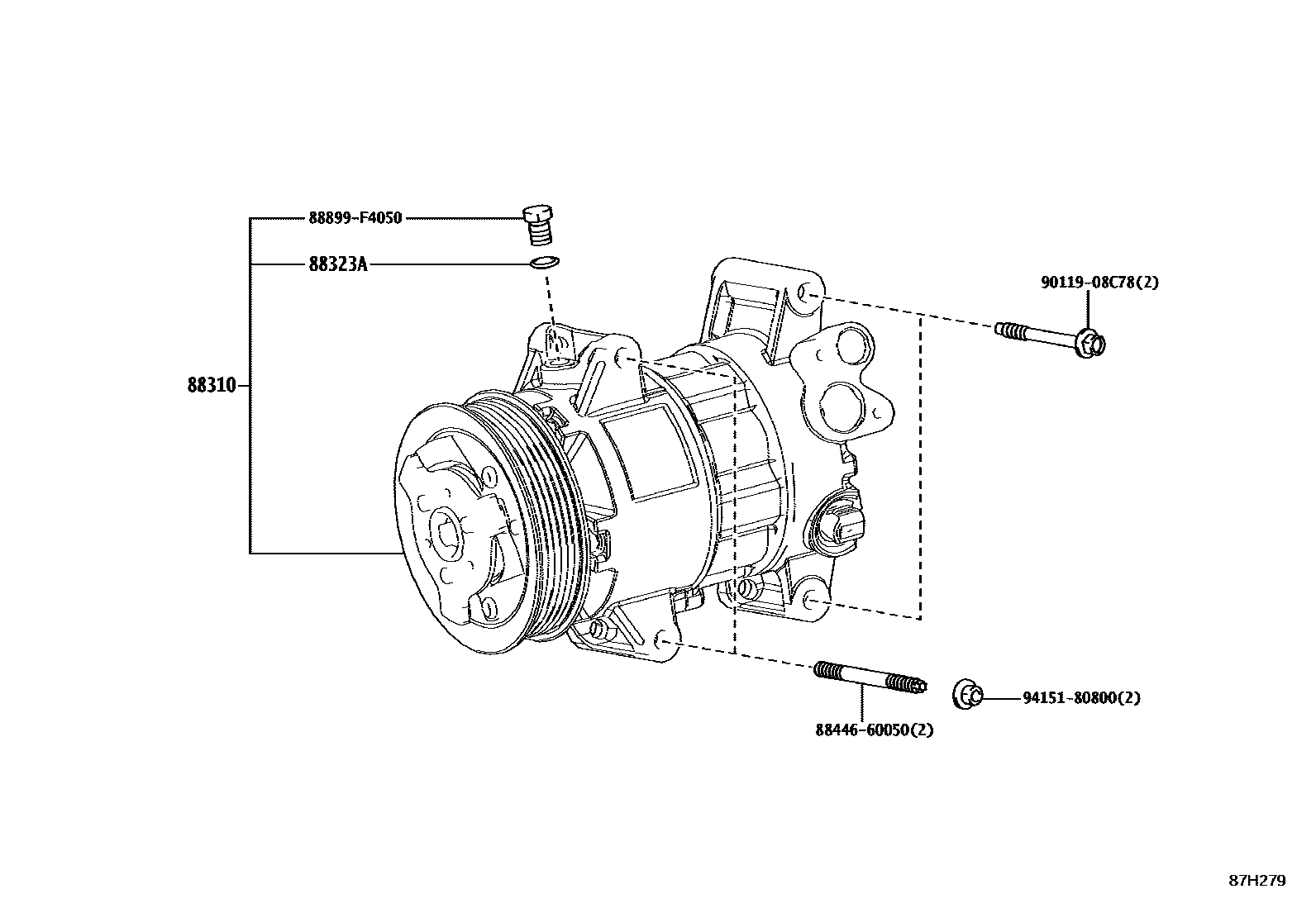

Toyota C-HR (JPP) — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-12B10iZGX10201806-202212

main88310-F4050iZGX10201801-201806

88323AGASKET, COMPRESSOR

main88899-F4060iZGX10201801-201806

8844660050BOLT, IDLE PULLEY

main88446-60050¥0

88899F4050COVER, EVAPORATOR

main88899-F4050

9011908C78

main90119-08C78¥0

9415180800

main94151-80800¥80

6 parts on this diagram · 2 diagrams in section
