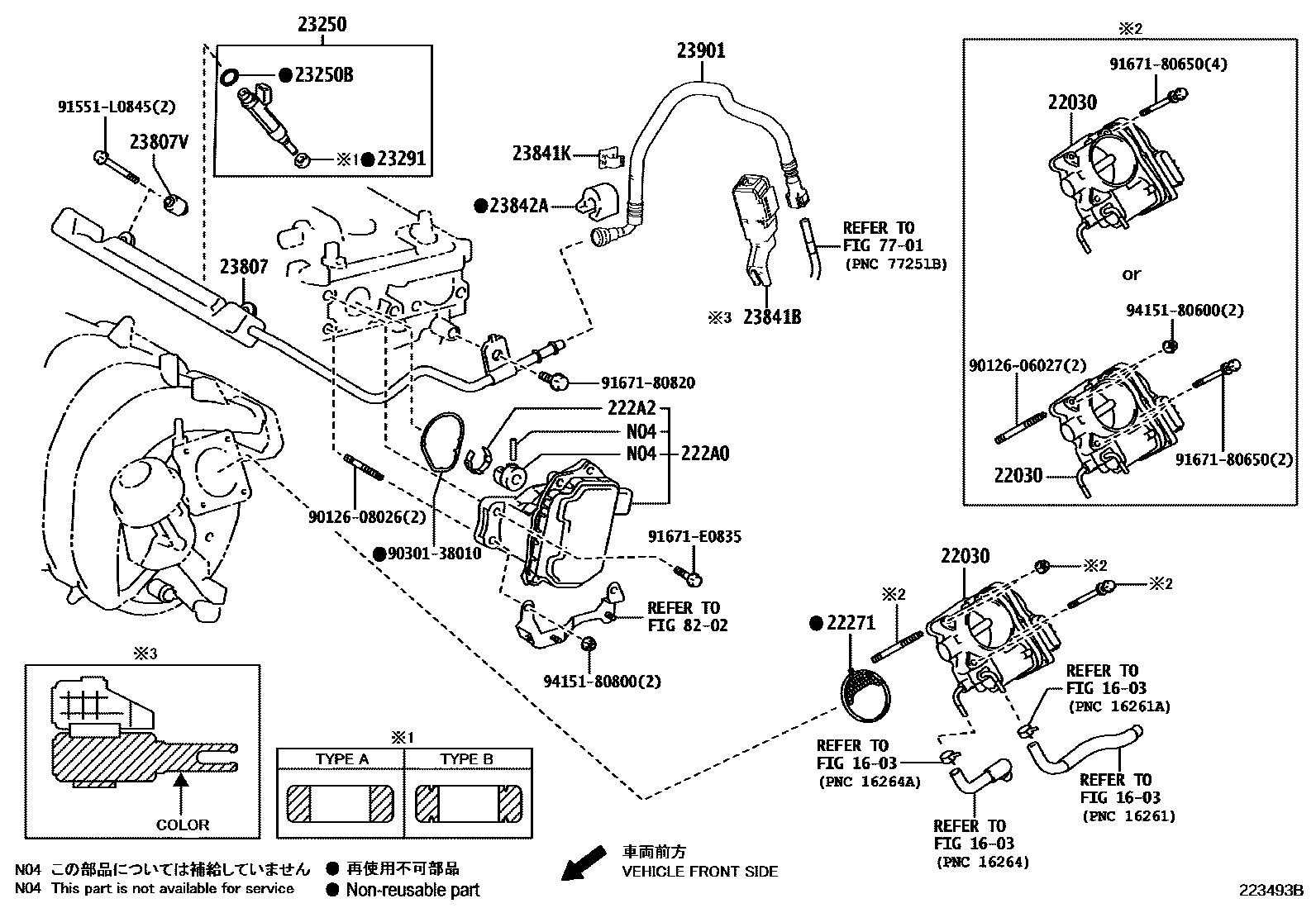

Toyota C-HR (JPP) — FUEL INJECTION SYSTEM

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-37040i3ZRFAE..ZGX10¥52,700201801-202212

22271GASKET, THROTTLE BODY

main22271-75031i3ZRFAE..ZGX10¥250201801-202212

222A0CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT

main222A0-37023i3ZRFAE..ZGX10¥96,300201801-201811

sub222A0-37024¥96,300

main222A0-37024i3ZRFAE..ZGX10¥96,300201812-202001

sub222A0-37025¥72,800

main222A0-37025i3ZRFAE..ZGX10¥72,800202002-202212

222A2CLIP, VALVE LIFT CONTROL ACTUATOR CONNECTOR

main222A2-37011i3ZRFAE..ZGX10¥130201801-202212

23250INJECTOR ASSY, FUEL

main23209-39235i3ZRFAE..ZGX10¥13,900201801-202212

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i3ZRFAE..ZGX10¥140201801-202212

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i3ZRFAE..ZGX10¥240201801-202212

TYPE A:REFER ILLUST.

main23291-28020i3ZRFAE..ZGX10¥310201801-202212

TYPE B:REFER ILLUST.

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37051i3ZRFAE..ZGX10¥8,900201801-202212

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010i3ZRFAE..ZGX10¥240201801-202212

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-37081i3ZRFAE..ZGX10¥310201801-202212

23841KCLAMP, FUEL PIPE

main23841-47020i3ZRFAE..ZGX10¥180201801-202212

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i3ZRFAE..ZGX10¥550201801-202212

23901TUBE SUB-ASSY, FUEL

main23901-37320i3ZRFAE..ZGX10201801-202212

7701

8202

9012606027

main90126-06027¥80

9012608026

main90126-08026¥210

9030138010

main90301-38010¥170

91551L0845

main91551-L0845¥100

9167180650

main91671-80650¥80

9167180820

main91671-80820¥80

91671E0835

main91671-E0835¥100

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

25 parts on this diagram · 1 diagram in section
