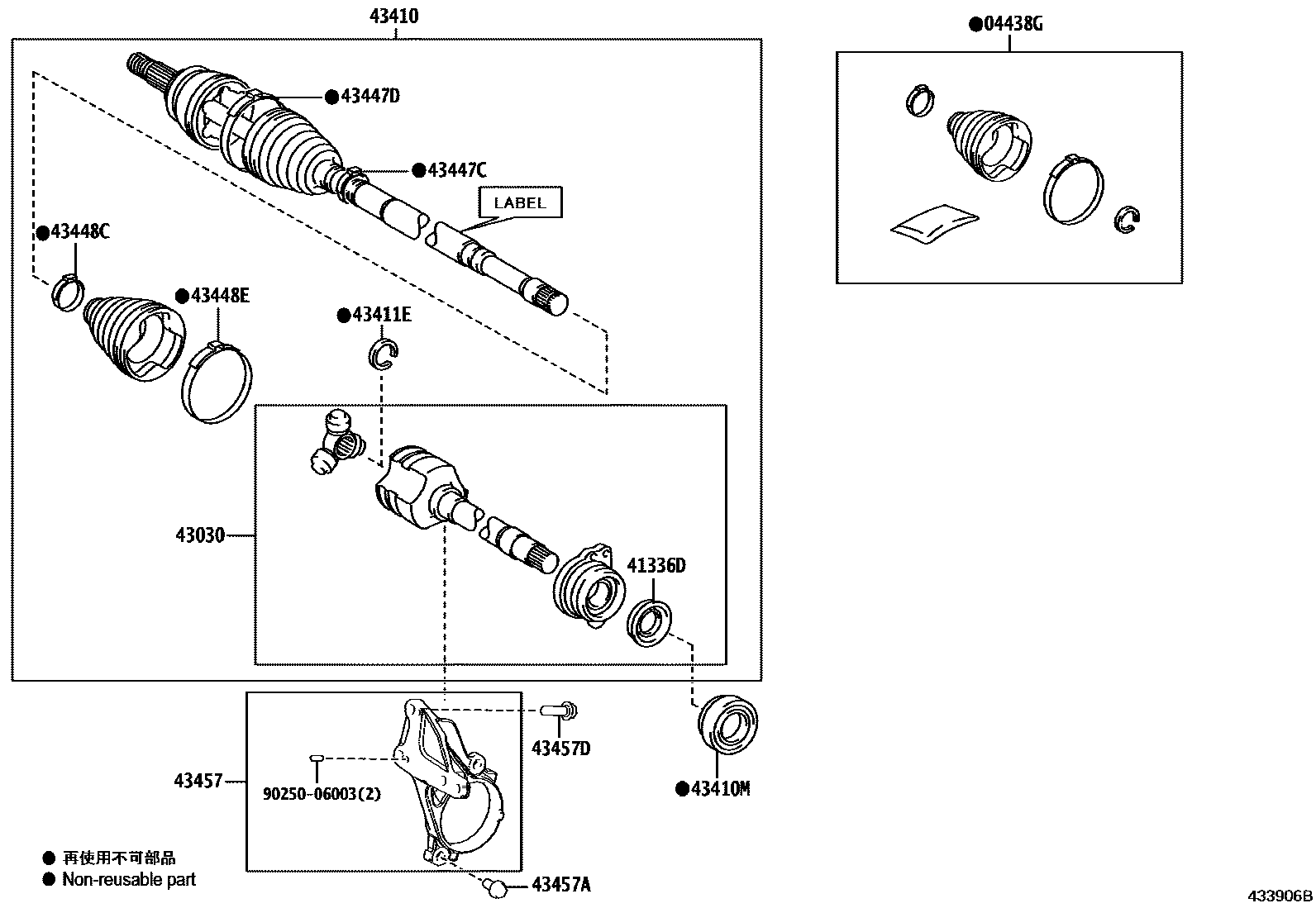

Toyota C-HR (JPP) — FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-10060iZGX10201910-202212

main04437-10060iZGX10201801-201910

W/O LABEL

main04438-F4010iZGX10201801-201809

W/LABEL

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-05100iZGX10201801-201809

W/LABEL

main41336-10030iZGX10201910-202212

main41336-10030iZGX10201801-201910

W/O LABEL

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-10030iZGX10201910-202212

main43030-10030iZGX10201801-201910

W/O LABEL

main43030-F4010iZGX10201801-201809

W/LABEL

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-10410iZGX10201801-201910

W/O LABEL

main43410-10410iZGX10201910-202212

main43410-F4030iZGX10201801-201809

W/LABEL

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40041iZGX10¥310201801-202212

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-05040iZGX10201801-201809

W/LABEL

main43425-13010iZGX10¥70201801-201910

W/O LABEL

main43425-13010iZGX10¥70201910-202212

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02820iZGX10201801-201809

W/LABEL

main42345-74150iZGX10¥240201801-201910

W/O LABEL

main42345-74150iZGX10¥240201910-202212

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02810iZGX10201801-201809

W/LABEL

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0F070iZGX10201801-201809

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-10060iZGX10201801-201910

W/O LABEL

main42345-10060iZGX10201910-202212

main42345-F4020iZGX10201801-201809

W/LABEL

43457BRACKET, DRIVE SHAFT BEARING

main43457-10030iZGX10201801-202212

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361iZGX10¥110201801-202212

*10-1.25PX22-19.5

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381iZGX10¥100201801-202212

9025006003

main90250-06003¥90

14 parts on this diagram · 2 diagrams in section
