Toyota C-HR (JPP) — FRONT DOOR WINDOW REGULATOR & HINGE

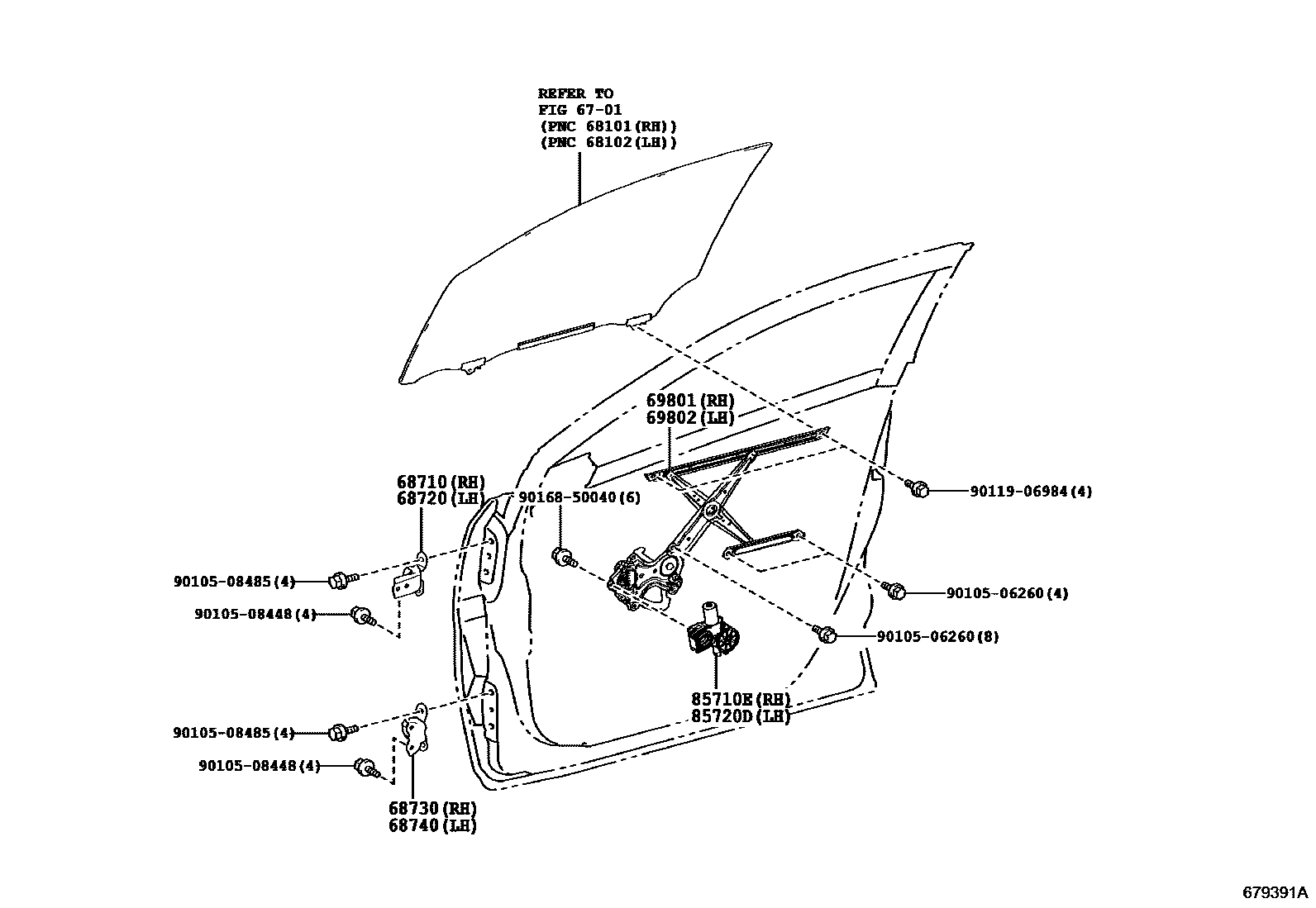

Parts diagram

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151i¥2,050201801-202212

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151i¥2,050201801-202212

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120i¥2,240201801-202212

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120i¥2,240201801-202212

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-10130i¥4,680201801-202212

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-10110i¥4,680201801-202212

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-10110i¥23,000201801-202212

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-10100i¥23,000201801-202212

9010506260

main90105-06260¥60

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9011906984

main90119-06984¥60

9016850040

main90168-50040¥70

14 parts on this diagram · 1 diagram in section
