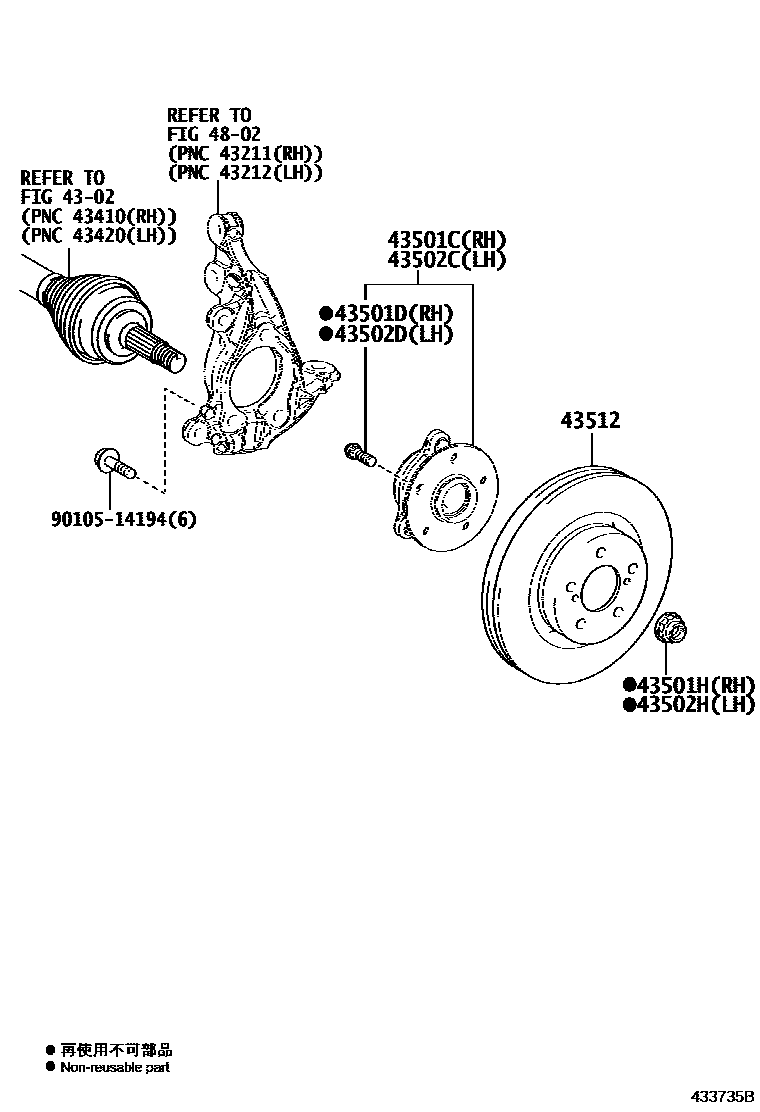

Toyota C-HR (JPP) — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-10010iZGX10¥13,600201801-202212

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iZGX10¥240201801-202212

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iZGX10¥220201801-202212

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-10010iZGX10¥13,600201801-202212

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iZGX10¥240201801-202212

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iZGX10¥220201801-202212

43512DISC, FRONT

main43512-33150iZGX10¥9,300201910-202212

main43512-F4010iZGX10¥9,300201801-201910

4802

9010514194

main90105-14194¥240

10 parts on this diagram · 1 diagram in section
