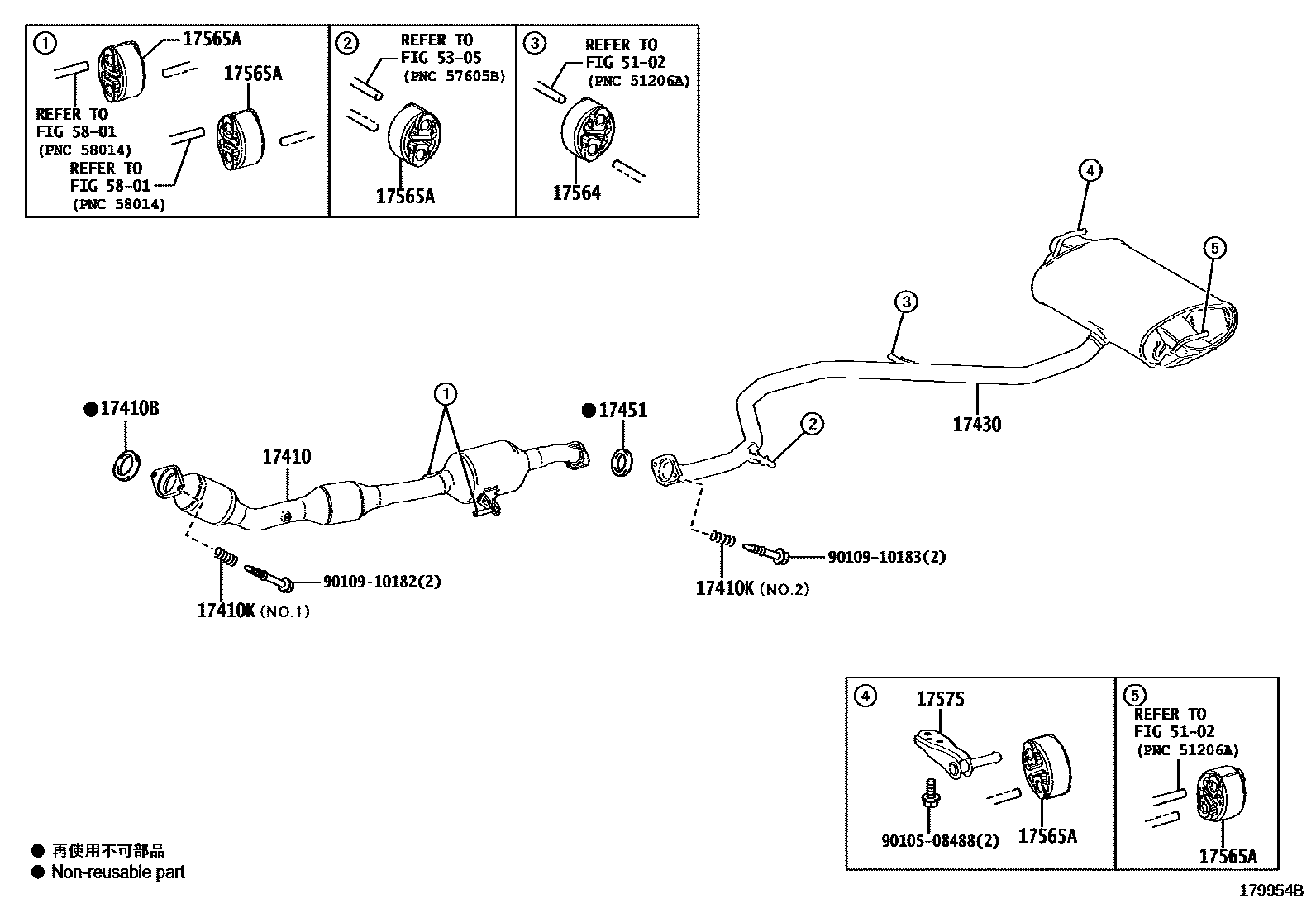

Toyota C-HR (JPP) — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17410KSPRING, EXHAUST PIPE
NO.2
NO.1
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17564SUPPORT,EXHAUST PIPE, NO.4
17565ASUPPORT, EXHAUST PIPE, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
5102
5305
5801
9010508488
9010910182
9010910183
14 parts on this diagram · 1 diagram in section
