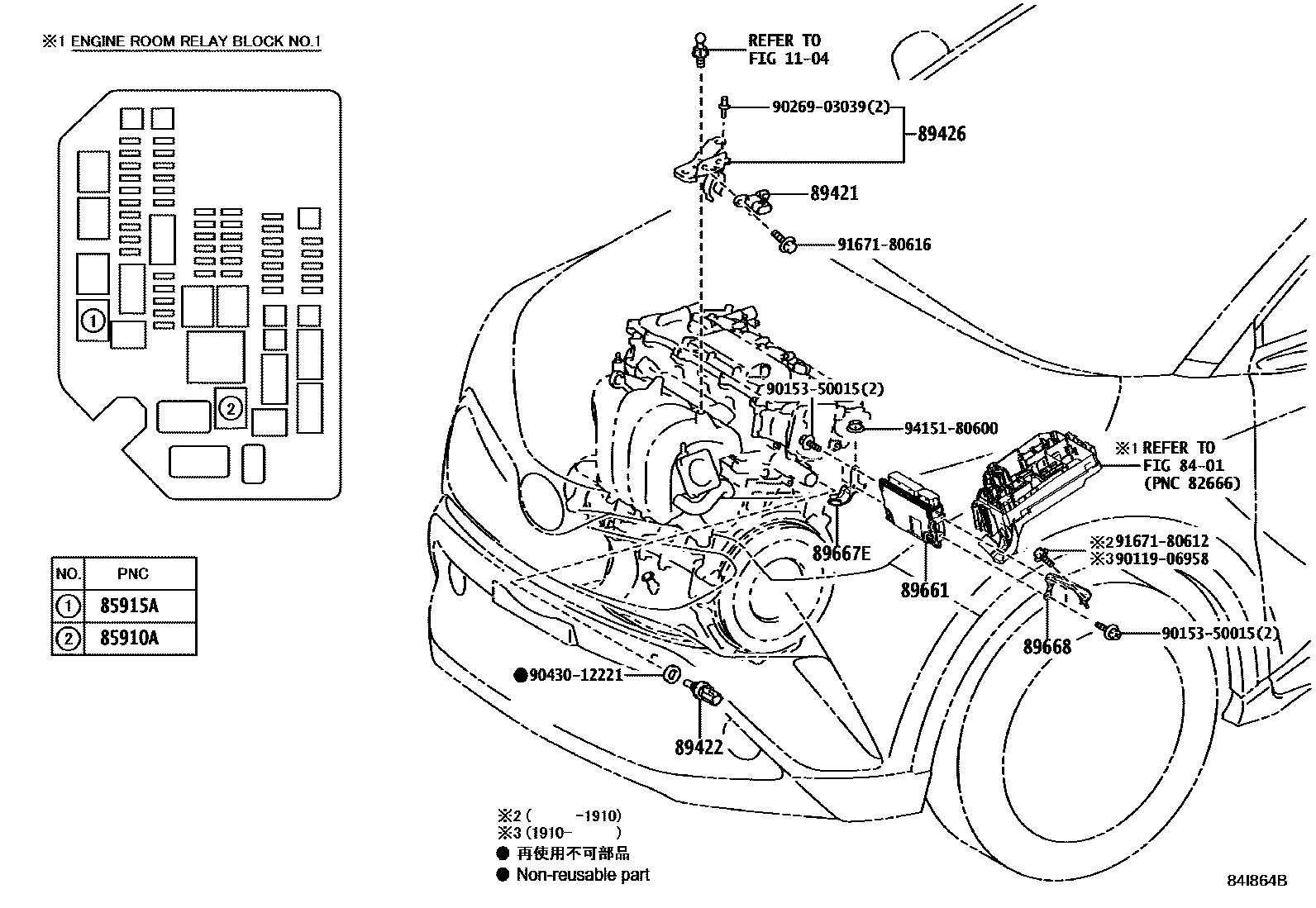

Toyota C-HR (JPP) — ELECTRONIC FUEL INJECTION SYSTEM

1104

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87021iZGX10201801-201806

sub90987-02027¥2,930

main90987-02027iZGX10¥2,930201806-202212

85915ARELAY, MAIN

main90080-87021iZGX10201801-201806

sub90987-02027¥2,930

main90987-02027iZGX10¥2,930201806-202212

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZGX10¥5,900201801-202212

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZGX10¥2,410201801-202212

89426BRACKET, VACUUM SENSOR

main89426-13020iZGX10¥540201801-202212

89661COMPUTER, ENGINE CONTROL

main89661-10310iZGX10202008-202212

DENSO,MARK 89661-10410

main89661-10410iZGX10201806-201910

DENSO,MARK 89661-10410

main89661-10440iZGX10201910-202008

DENSO,MARK 89661-10410

main89661-F4011iZGX10201801-201806

DENSO,MARK 89661-F4011

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-12360iZGX10¥410201801-202212

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12290iZGX10¥380201801-202212

9011906958

main90119-06958¥60

9015350015

main90153-50015¥60

9026903039

main90269-03039¥70

9043012221

main90430-12221¥200

9167180612

main91671-80612¥60

9167180616

main91671-80616¥60

9415180600

main94151-80600¥60

17 parts on this diagram · 1 diagram in section
