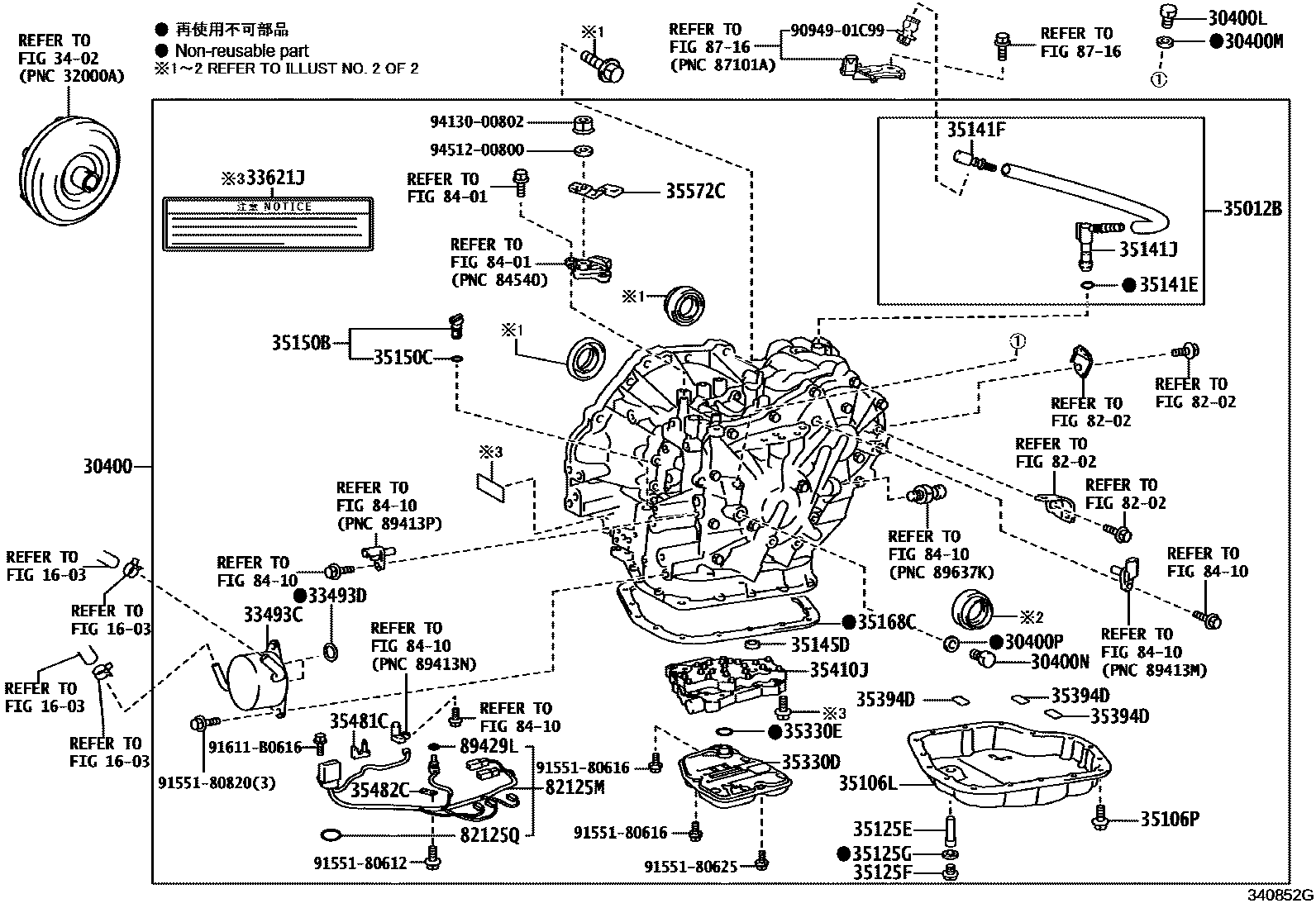

Toyota C-HR (JPP) — TRANSAXLE ASSY(CVT)

0001 1K313,K313F 0002 1K313,K313F

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-10010iNGX10..CVT¥349,000201612-201910

K313

main30400-10020iNGX50¥349,000201612-201910

K313F

30400LPLUG , FILLER(CVT)

main90341-12025iNGX10,50..CVT¥190201612-201910

30400MGASKET, FILLER PLUG(CVT)

main90430-12221iNGX10,50..CVT¥200201612-201910

30400NPLUG, REFILL(CVT)

main90341-18077iNGX10,50..CVT¥190201612-201910

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iNGX10,50¥110201612-201910

33493CCOOLER, TRANSMISSION OIL

main33493-20100iNGX10,50..CVT¥11,900201612-201910

33493DRING, O (FOR TRANSMISSION OIL COOLER)

main90301-20012iNGX10,50..CVT¥170201612-201910

33621JLABEL, TRANSAXLE OIL INFORMATION

main33621-12150iNGX50¥140201612-202112

main33621-28021iNGX50¥120202201

3402

35012BHOSE SUB-ASSY, TRANSMISSION BREATHER

main35012-12120iNGX10,50..CVT¥1,490201612-201910

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-12200iNGX10,50..CVT¥3,590201612-201910

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173iNGX10,50..CVT¥80201612-201910

35125ETUBE, OVERFLOW(CVT)

main35125-12440iNGX10,50..CVT¥130201612-201910

35125FPLUG, OVERFLOW(CVT)

main90341-12034iNGX10,50..CVT¥190201612-201910

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iNGX10,50¥90201612-201910

35141ERING, O(FOR BREATHER PLUG)

main90301-06021iNGX10,50..CVT¥140201612-201910

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03216iNGX10,50..CVT¥260201612-201910

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03191iNGX10,50..CVT¥260201612-201910

35145DGASKET, TRANSAXLE CASE

main35145-33010iNGX10,50..CVT¥360201612-201910

35150BPLUG ASSY, TRANSMISSION CASE

main35150-48010iNGX10,50..CVT¥280201612-201910

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iNGX10,50..CVT¥140201612-201910

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-12091iNGX10,50..CVT¥370201612-201910

35330DSTRAINER ASSY, OIL

main35330-12050iNGX10,50..CVT¥4,480201612-201910

35330ERING, O (FOR OIL STRAINER)

main90301-22019iNGX10,50..CVT¥130201612-201910

35394DMAGNET, OIL CLEANER(CVT)

main35394-30011iNGX10,50..CVT¥360201612-202101

main35394-48010iNGX10,50¥280202102

35410JBODY ASSY, TRANSMISSION VALVE

main35410-12871iNGX10,50..CVT¥53,700201612-201910

35481CCLAMP, VALVE BODY WIRE HARNESS

main35481-12030iNGX10,50..CVT¥140201612-201910

35482CCLAMP, TEMPERATURE SENSOR

main35482-73010iNGX10,50..CVT¥170201612-201910

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12160iNGX10,50..CVT¥390201612-201910

8202

82125MWIRE, TRANSMISSION

main82125-12641iNGX10,50..CVT¥2,370201612-201807

sub82125-12642¥1,790

main82125-12642iNGX10,50..CVT¥1,790201808-201910

82125QRING, O(FOR TRANSMISSION WIRE)

main90301-21009iNGX10,50..CVT¥170201612-201910

8401

8410

8716

89429LRING, O(FOR OIL TEMPERATURE SENSOR)

main90301-06004iNGX10,50..CVT¥120201612-201910

9094901C99

main90949-01C99¥100

9155180612

main91551-80612¥60

9155180616

main91551-80616¥60

9155180625

main91551-80625¥60

9155180820

main91551-80820¥80

91611B0616

main91611-B0616¥110

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

45 parts on this diagram · 2 diagrams in section
