Toyota C-HR (JPP) — SPEAKER

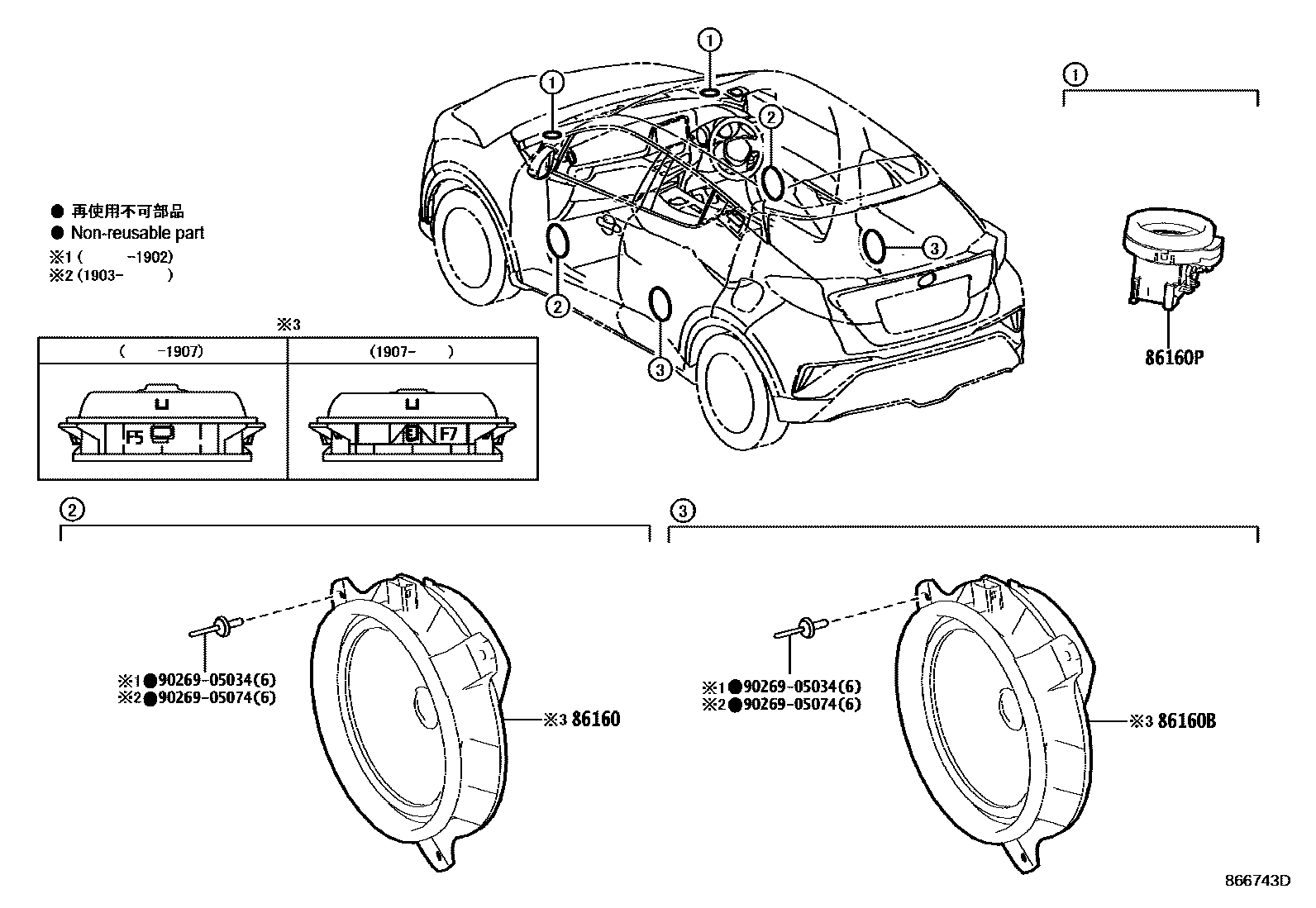

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-30E00i¥6,300201907-201910

main86160-30E00i¥6,300201910

main86160-52300i¥7,000201612-201907

86160BSPEAKER ASSY, REAR

main86160-30E00i¥6,300201907-201910

main86160-30E00i¥6,300201910

main86160-52300i¥7,000201612-201907

86160PSPEAKER ASSY, FRONT NO.2

main86160-52170i¥2,210201910

main86160-52170i¥2,210201612-201910

9026905034

main90269-05034¥140

9026905074

main90269-05074¥70

5 parts on this diagram · 1 diagram in section
