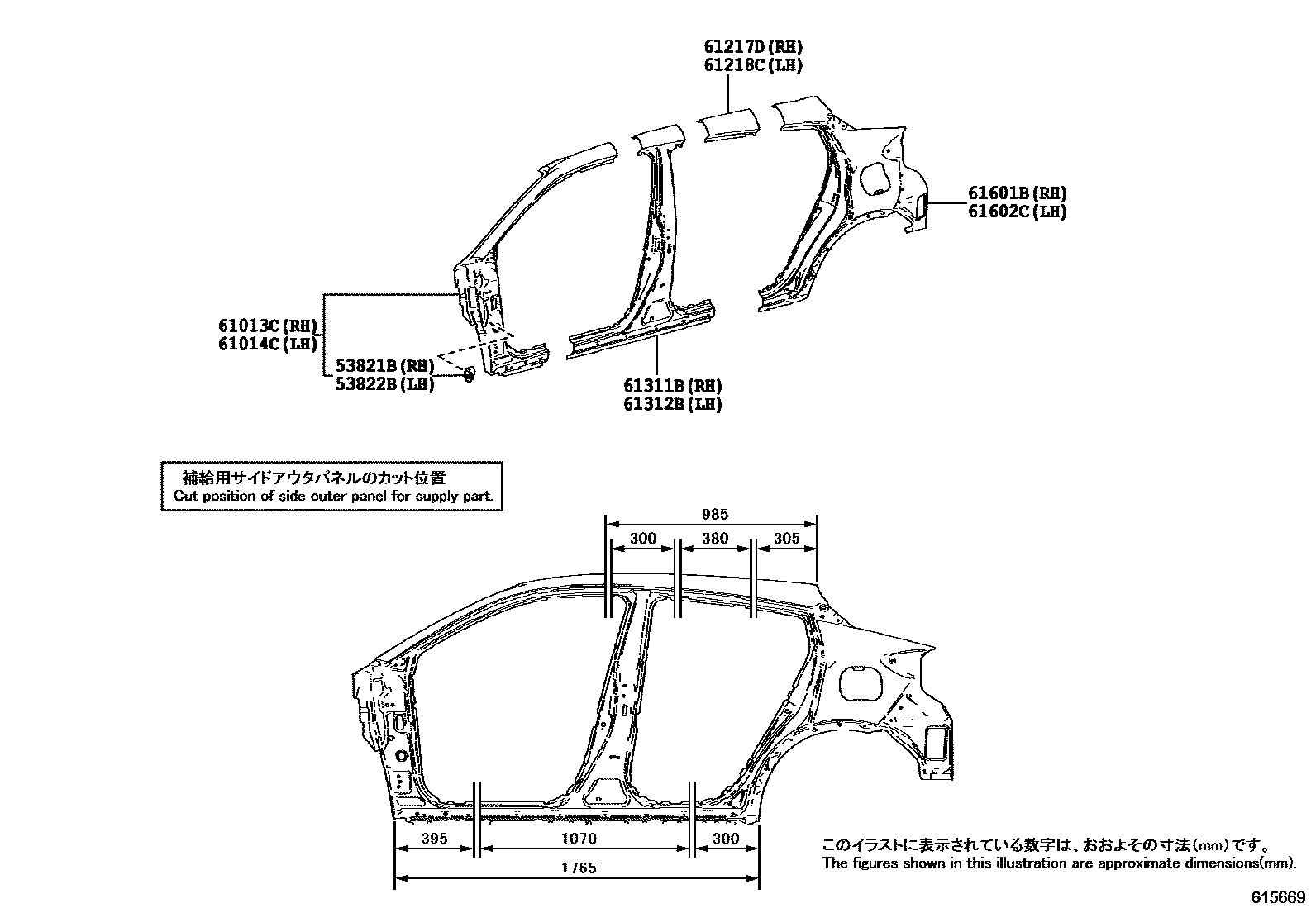

Toyota C-HR (JPP) — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-30150iNGX10,50,ZYX10¥230201612-201910

53822BBRACKET, FRONT FENDER, REAR LH

main53821-30150iNGX10,50¥230201612-201910

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-10090iNGX10,50¥15,600201612-201910

61014CPANEL SUB-ASSY, SIDE, INNER LH

main61014-10090iNGX10,50¥15,600201612-201910

61217DRAIL, ROOF SIDE, OUTER NO.4 RH

main61217-10010iNGX10,50¥2,970201612-201910

61218CRAIL, ROOF SIDE, OUTER NO.4 LH

main61218-10010iNGX10,50¥2,970201612-201910

61311BPILLAR, CENTER BODY, OUTER RH

main61311-10060iNGX10,50¥14,800201612-201910

61312BPILLAR, CENTER BODY, OUTER LH

main61312-10060iNGX10,50¥14,800201612-201910

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-10A00iNGX10,50¥42,000201612-201910

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-10A00iNGX10,50¥43,200201612-201910

10 parts on this diagram · 3 diagrams in section
