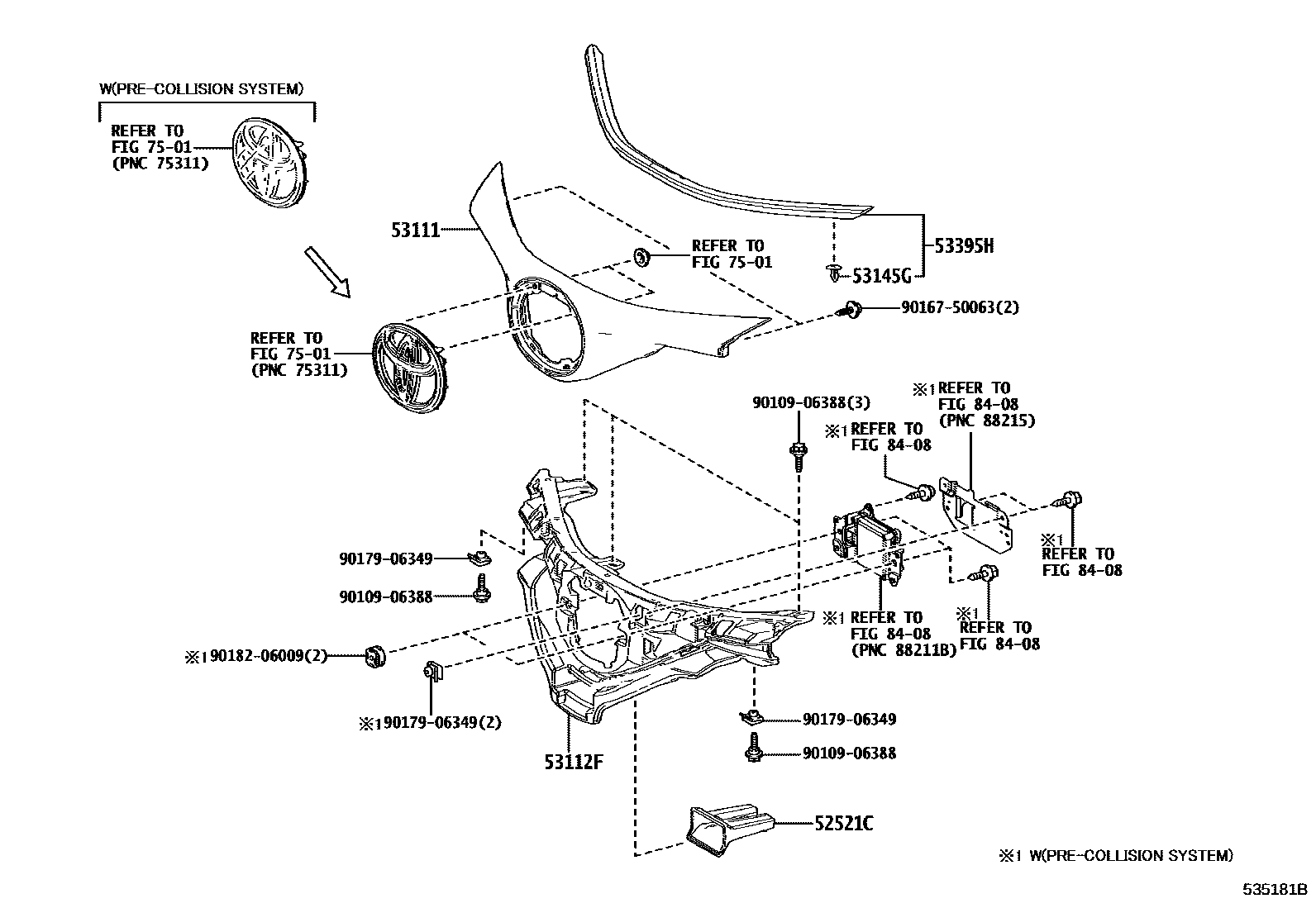

Toyota C-HR (JPP) — RADIATOR GRILLE

0001 1 0002 1

52521CRETAINER, FRONT BUMPER, UPPER

main52521-10040iNGX10,50¥1,470201612-201910

53111GRILLE, RADIATOR

main53111-10480iNGX10,50¥14,000201612-201910

NO PAINT REQ.

main53111-10490iNGX10,50,ZYX10¥11,900201910

NO PAINT REQ.

53112FGRILLE, RADIATOR, INSIDE

main53112-10050iNGX10,50¥6,400201612-201910

main53112-10060iNGX10,50,ZYX10¥8,000201910-202008

main53112-10090iNGX10,50,ZYX10¥6,600202008

53145GCLIP, RADIATOR GRILLE

main53145-60030iNGX10,50¥80201612-201910

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-10030iNGX10,50¥1,090201612-201910

main53395-10040iNGX10,50,ZYX10¥1,460201910

7501

8408

9010906388

main90109-06388¥70

9016750063

main90167-50063¥60

9017906349

main90179-06349¥180

9018206009

main90182-06009¥100

11 parts on this diagram · 2 diagrams in section
