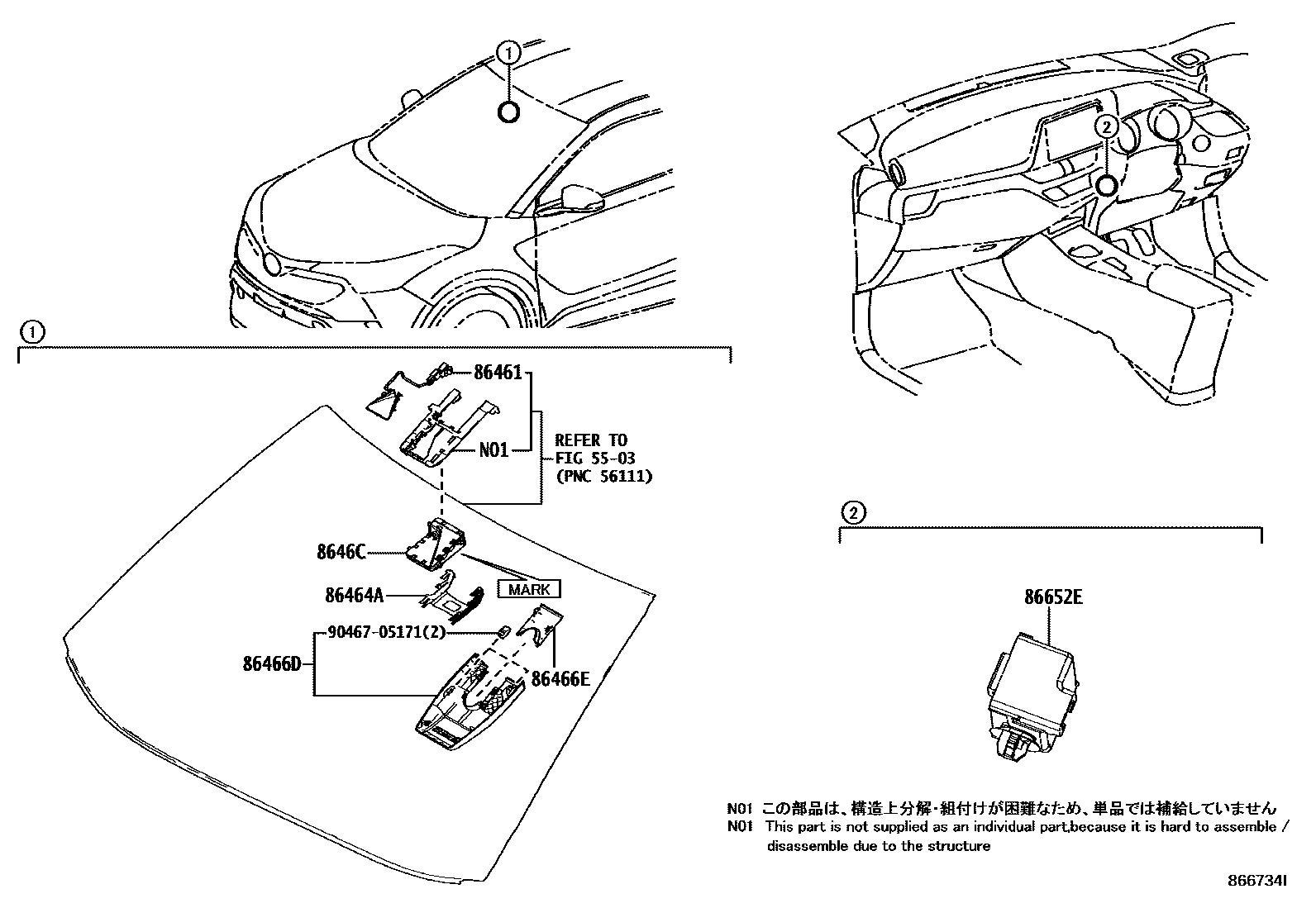

Toyota C-HR (JPP) — PRE-COLLISION SYSTEM

5503

86461HOOD, FORWARD RECOGNITION

main86401-10010iNGX10,50,ZYX10¥6,400202008

main86461-10020iNGX10,50¥7,100201612-201910

PRE-COLLISION SYSTEM-WITHOUT

main86461-10020iNGX10,50,ZYX10¥7,100201910-202008

86464ALATCH, FORWARD RECOGNITION

main86464-71010iNGX10,50¥520201612-202008

main86464-K0010iNGX10,50,ZYX10¥550202008

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-10010iNGX10,50¥2,560201612-201910

PRE-COLLISION SYSTEM-WITHOUT

main86466-10010iNGX10,50,ZYX10¥2,560201910-202008

main86466-10030iNGX10,50,ZYX10¥2,610202008

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-10020iNGX10,50¥520201612-201910

PRE-COLLISION SYSTEM-WITHOUT

main86466-10020iNGX10,50,ZYX10¥520201910-202008

main86466-10040iNGX10,50,ZYX10¥520202008

8646CCAMERA, FORWARD RECOGNITION

main8646C-10010iNGX10,50,ZYX10¥47,300202101

P/N LABEL=8646C10010

main8646C-F4010iNGX10,50¥43,900201612-201710

P/N LABEL=8646CF4010

main8646C-F4010iNGX10,50¥43,900201612-201710

PRE-COLLISION SYSTEM-WITHOUT

main8646C-F4011iNGX10,50¥43,900201710-201805

P/N LABEL=8646CF4011

main8646C-F4011iNGX10,50¥43,900201710-201805

PRE-COLLISION SYSTEM-WITHOUT

main8646C-F4040iNGX10,50¥43,900201805-201910

PRE-COLLISION SYSTEM-WITHOUT

main8646C-F4040iNGX10,50¥43,900201805-201910

P/N LABEL=8646CF4040

main8646C-F4050iNGX10,50,ZYX10¥43,800201910-202008

main8646C-F4070iNGX10,50,ZYX10¥47,300202101-202110

P/N LABEL=8646CF4070

main8646C-F4070iNGX10,50,ZYX10¥47,300202008-202012

86652EBUZZER, PRE-COLLISION CITY

main86652-50010iNGX10,50¥2,400201612-201910

PRE-COLLISION SYSTEM-WITHOUT

main86652-50010iNGX10,50,ZYX10¥2,400201910

9046705171

main90467-05171¥60

8 parts on this diagram · 1 diagram in section
