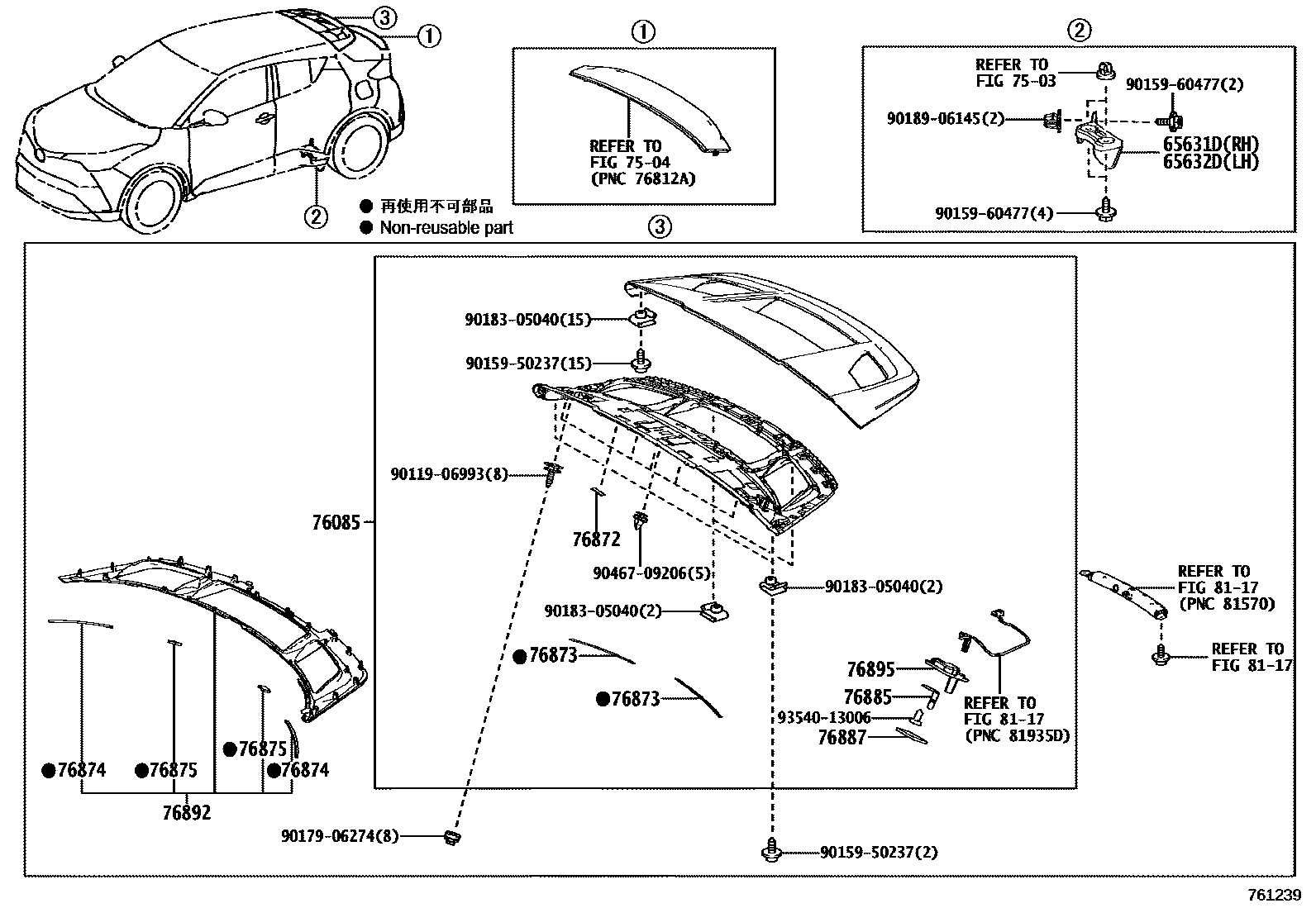

Toyota C-HR (JPP) — MUDGUARD & SPOILER
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
7503
7504
76085SPOILER SUB-ASSY, REAR
WHITE PEARL CS.,070
WHITE,2JU ,2NC ,2ND ,2NE ,2NG ,2NJ ,2PR
PLATINUM WHITE PEARL MC.,089
MEYAL STREAM ME.,1K0 ,2TA ,2TD
MEYAL STREAM ME.,1K0
GRAY ME.,1G3
CEMENT GRAY ME.,1H5
BLACK MC.,209
BLACK,2NA ,2PQ ,2TB ,2VP
BLACK,2NA ,2NF ,2NH ,2NK ,2PQ ,2RW
BLACK,2NA ,2NH ,2NK ,2PQ ,2TB ,2TC ,2VP ,2VT
SPARKLING BLACK PEARL CS.,220
RED MC.,3T3
EMOTIONAL RED 2,3U5
DK. BROWN M.M.,4U3
ORANGE ME.,4R8
YELLOW,5A3
RADIANT GREEN ME.,6W9
OXIDE BRONZE ME.,6X1
BLUE ME.,8T7
NEBULA BLUE ME.,8X2
DK.BLUE M.M.,8W7
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76874PROTECTOR, REAR SPOILER, NO.3
76875PROTECTOR, REAR SPOILER, NO.4
76885RETAINER, REAR SPOILER, NO.5
76887SEAL, REAR SPOILER
76892SPOILER, REAR NO.2
76895PROTECTOR, REAR SPOILER, NO.5
8117
9011906993
9015950237
9015960477
9017906274
9018305040
9018906145
9046709206
9354013006
22 parts on this diagram · 2 diagrams in section
