Toyota C-HR (JPP) — MIRROR

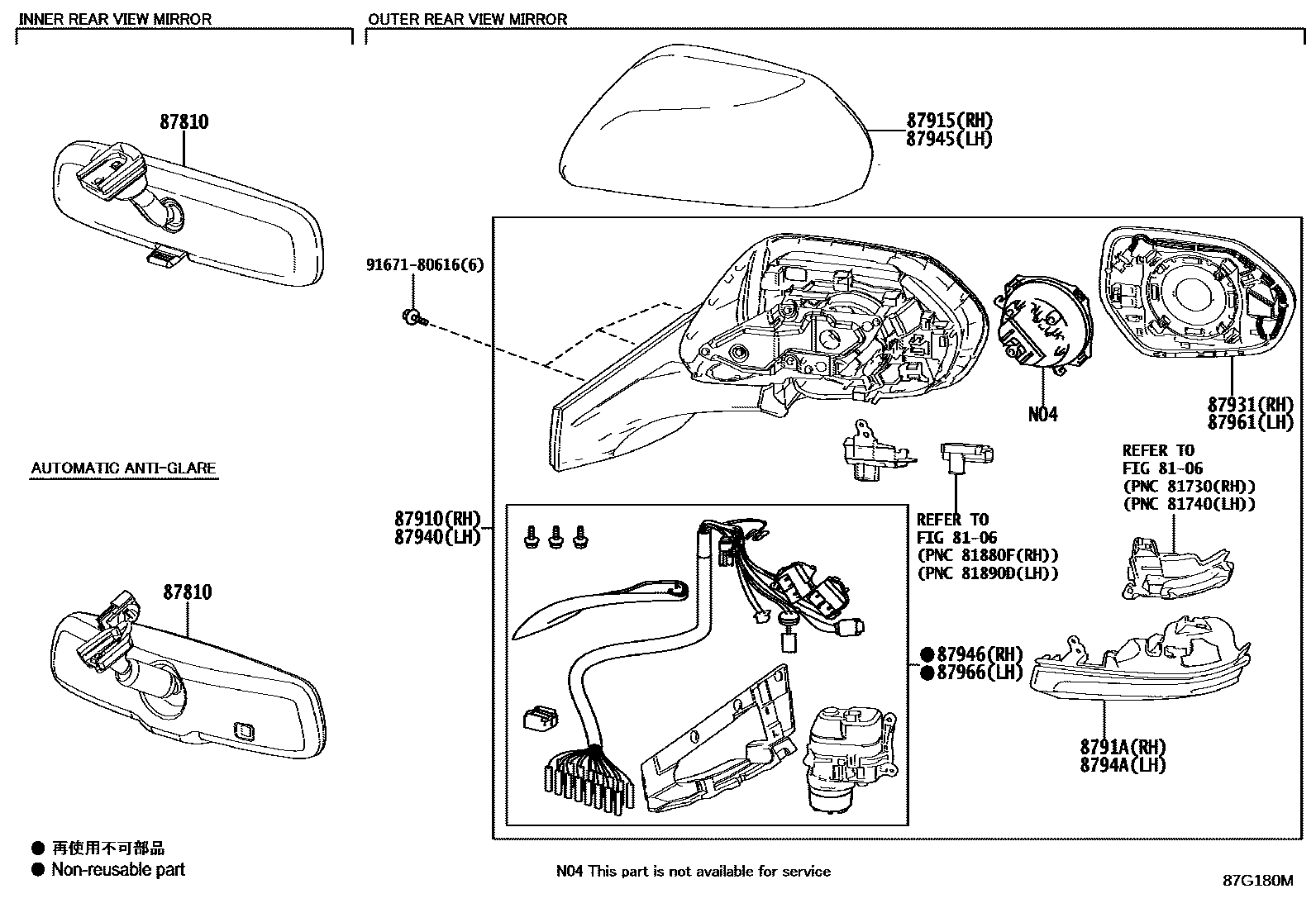

8106
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
WHITE,2JU ,2NC ,2NJ ,2PR
WHITE,2JU ,2NC ,2ND ,2NE ,2NG ,2NJ ,2PR
WHITE PEARL CS.,070
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
METAL STREAM ME,1K0
METAL STREAM ME,1K0 ,2TA ,2TD
METAL STREAM ME,1K0
GRAY ME.,1G3
CEMENT GRAY ME.,1H5
BLACK,2NA ,2NB ,2NH ,2NK ,2PQ ,2TB ,2TC ,2VP ,2VT
BLACK,2NA ,2NK ,2PQ
BLACK,2NA ,2NF ,2NH ,2NK ,2PQ ,2RW
BLACK,2NA ,2PQ ,2TB ,2VP
GR SPORT,BLACK,070 ,089 ,1G3 ,3U5 ,5A3
BLACK MC.,209
BLACK MC.,209
SPARKLING BLACK PEARL CS.,220
RED MC.,3T3
EMOTIONAL RED 2,3U5
DK. BROWN M.M.,4U3
ORANGE ME.,4R8
YELLOW,5A3
YELLOW,5A3
RADIANT GREEN ME.,6W9
OXIDE BRONZE ME.,6X1
BLUE ME.,8T7
NEBULA BLUE ME.,8X2
NEBULA BLUE ME.,8X2
DK.BLUE M.M.,8W7
8791ACOVER, OUTER MIRROR, RH NO.2
87931OUTER MIRROR, RH
87945COVER, OUTER MIRROR, LH
WHITE,2JU ,2NC ,2NJ ,2PR
WHITE,2JU ,2NC ,2ND ,2NE ,2NG ,2NJ ,2PR
WHITE PEARL CS.,070
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
METAL STREAM ME,1K0
METAL STREAM ME,1K0 ,2TA ,2TD
METAL STREAM ME,1K0
GRAY ME.,1G3
CEMENT GRAY ME.,1H5
BLACK,2NA ,2NB ,2NH ,2NK ,2PQ ,2TB ,2TC ,2VP ,2VT
BLACK,2NA ,2NK ,2PQ
BLACK,2NA ,2NF ,2NH ,2NK ,2PQ ,2RW
BLACK,2NA ,2PQ ,2TB ,2VP
GR SPORT,BLACK,070 ,089 ,1G3 ,3U5 ,5A3
BLACK MC.,209
BLACK MC.,209
SPARKLING BLACK PEARL CS.,220
RED MC.,3T3
EMOTIONAL RED 2,3U5
DK. BROWN M.M.,4U3
ORANGE ME.,4R8
YELLOW,5A3
YELLOW,5A3
RADIANT GREEN ME.,6W9
OXIDE BRONZE ME.,6X1
BLUE ME.,8T7
NEBULA BLUE ME.,8X2
NEBULA BLUE ME.,8X2
DK.BLUE M.M.,8W7
87946RETRACTOR, OUTER MIRROR, RH
NOT APPLICABLE
8794ACOVER, OUTER MIRROR, LH NO.2
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
NOT APPLICABLE
9167180616
13 parts on this diagram · 4 diagrams in section
