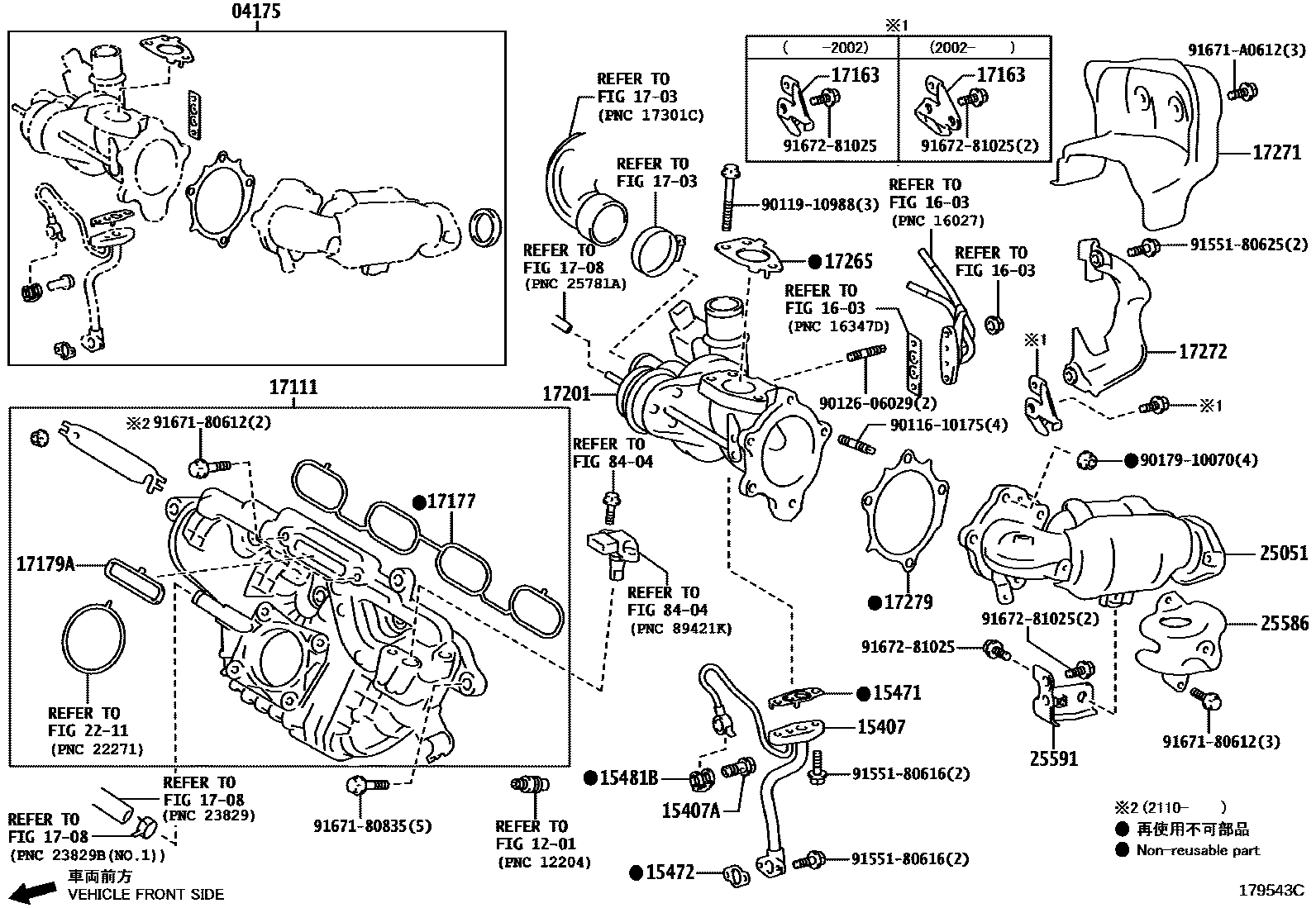

Toyota C-HR (JPP) — MANIFOLD
04175GASKET KIT, TURBOCHARGER
1201
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
15471GASKET, TURBO OIL INLET
15472GASKET, TURBO OIL OUTLET, NO.1
15481BGASKET(FOR UNION BOLT NO.1)
1603
1703
1708
17111MANIFOLD, INTAKE
(L)
(J)
17163BRACKET, HEAT INSULATOR, NO.1
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
17179AGASKET, INTAKE MANIFOLD, NO.2
(L)
(J)
17201TURBOCHARGER SUB-ASSY
17265GASKET, TURBOCHARGER
17271INSULATOR, TURBO, NO.1
17272INSULATOR, TURBO, NO.2
17279GASKET, TURBINE OUTLET ELBOW
2211
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
*114=*413
*114=*464
25586INSULATOR, MANIFOLD CONVERTER, NO.1
25591BRACKET, MANIFOLD SUPPORT
8404
9011610175
9011910988
9012606029
9017910070
9155180616
9155180625
9167180612
9167180835
91671A0612
9167281025
34 parts on this diagram · 4 diagrams in section
