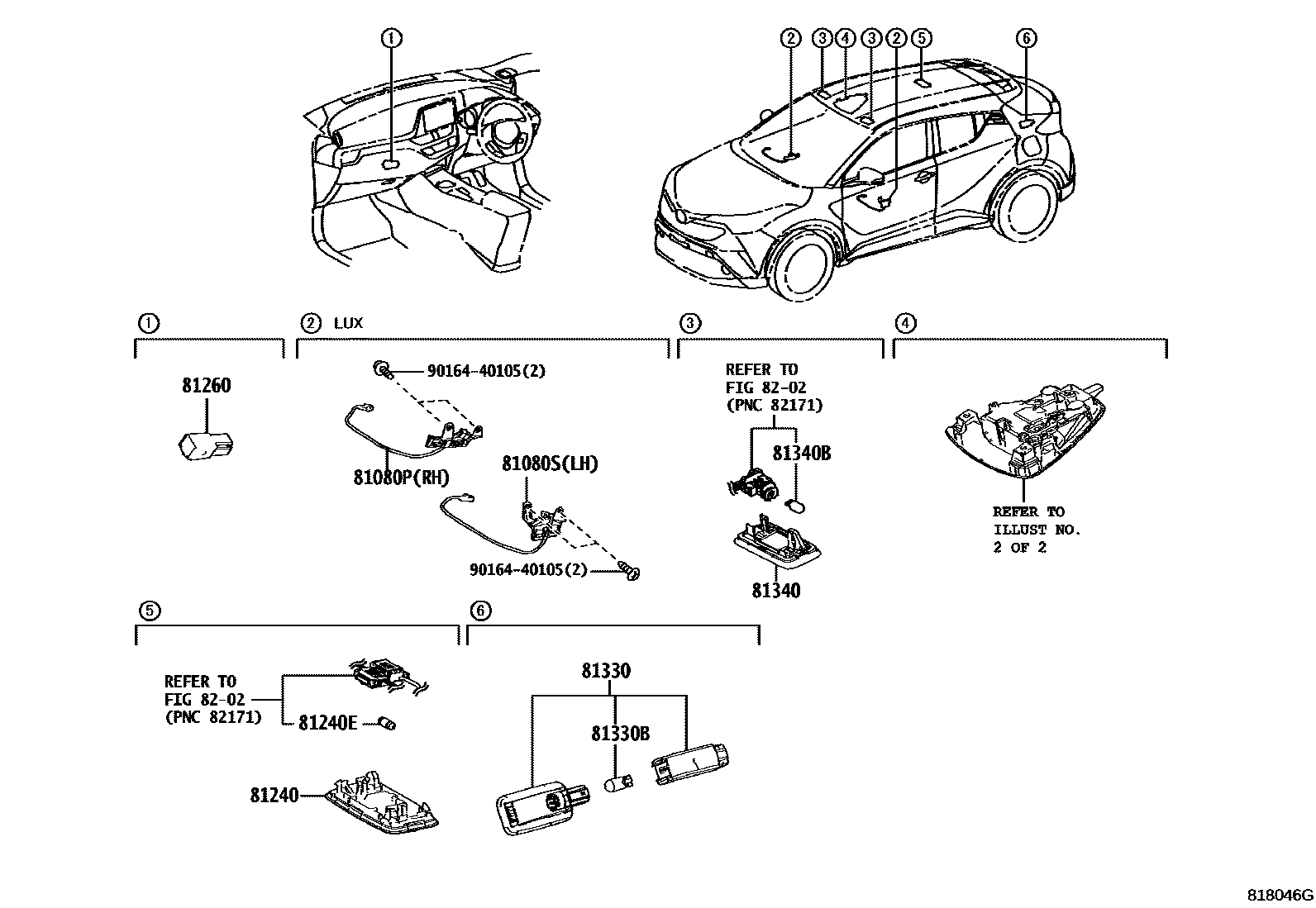

Toyota C-HR (JPP) — INTERIOR LAMP

0001 1 0002 1 0003 1

81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-10010-C1iNGX10,50..LUX201612-201910

BLACK,TRIM2#

main81080-10020-C0iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81090-10010-C1iNGX10,50..LUX201612-201910

BLACK,TRIM2#

main81090-10020-C0iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#

81240LAMP ASSY, ROOM, NO.1

main81240-35020-C1iNGX10,50201612-201906

BLACK,TRIM2#

sub81240-35020¥2,850

sub81240-42020¥2,230

main81240-42020-C0iNGX10,50,ZYX10201910

BLACK,TRIM2#

main81240-42020-C0iNGX10,50201906-201910

BLACK,TRIM2#

81240EBULB, ROOM LAMP, NO.2

main90981-14011iNGX10,50¥180201612-201910

12V 8W

main90981-14011iNGX10,50,ZYX10¥180201910

12V 8W

81260LAMP ASSY, GLOVE BOX

main81080-33290iNGX10,50¥920201708-201910

main81080-33290iNGX10,50,ZYX10¥920201910

main81080-58100iNGX10,50¥920201612-201707

sub81080-33290¥920

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iNGX10,50¥1,250201612-201910

main81250-30210iNGX10,50,ZYX10¥1,250201910

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iNGX10,50¥110201612-201910

12V 5W

main99132-12050iNGX10,50,ZYX10¥110201910

12V 5W

81340LAMP ASSY, VANITY

main81340-30110iNGX10,50,ZYX10..ACTV¥1,670201910

SUN VISOR-WITH(VANITY LAMP & MIRROR)

main81340-30110iNGX10,50..LUX¥1,670201612-201910

SUN VISOR-WITH(VANITY LAMP & MIRROR)

81340BBULB (FOR VANITY LAMP)

main90981-11062iNGX10,50,ZYX10..ACTV¥340201910

12V 8W

main90981-11062iNGX10,50..LUX¥340201612-201910

12V 8W

main90981-11062iNGX10,50..LUX¥340201612-201910

12V 8W,SUN VISOR-WITH(VANITY LAMP & MIRROR)

main90981-11062iNGX10,50,ZYX10..LUX¥340201910

12V 8W,SUN VISOR-WITH(VANITY LAMP & MIRROR)

8202

9016440105

main90164-40105¥70

11 parts on this diagram · 3 diagrams in section
